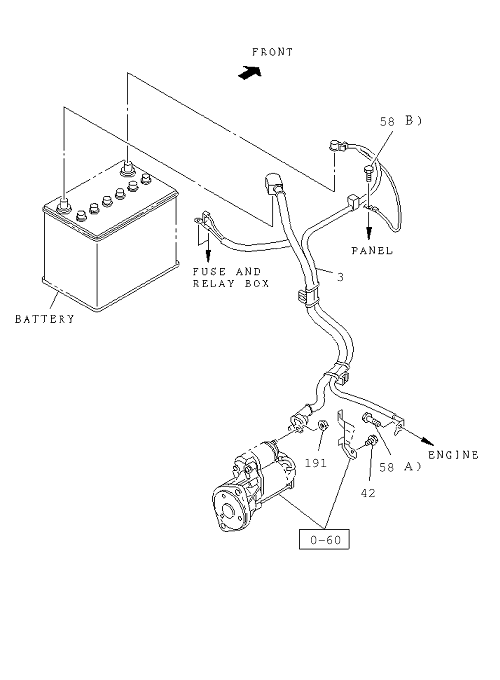

0-61 | BATTERY AND ENGINE ELECTRICAL PARTS
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-98238 380-2 | HARNESS; CABLE,BATTERY TO STARTE | 1 | 1602- | A | BATTERY 80D26L(TM1) | ||
| 3 | I8-98160 809-3 | HARNESS; CABLE,BATTERY TO STARTE | 1 | 1602- | A | BATTERY 95D31L(TQ8) | ||
| 58 | I0-28651 020-0 | BOLT; CABLE,BATTERY | 1 | 1602- | A | (A) M10X2 0 FLANGE | ||
| 191 | I0-91180 108-0 | NUT; STARTER | 1 | 1602- | A | 01. 062 M8 FLANGE | ||
| 58 | I8-98164 836-0 | BOLT; CABLE,BATTERY | 1 | 1602- | A | 02.559 (B) M6X14 W/PL WASHER |
