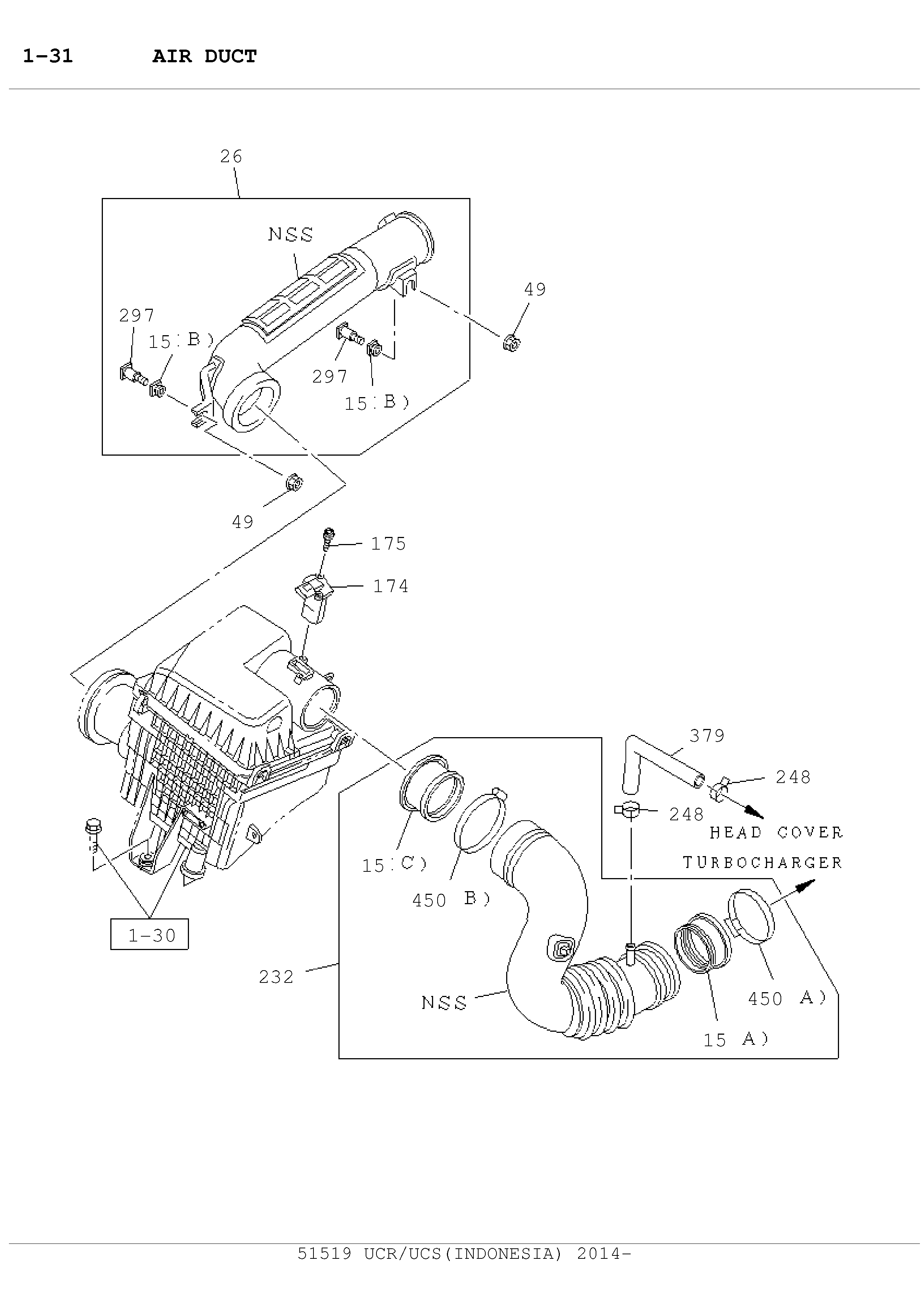

1-31 | AIR DUCTH
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 175 | I0-36230 410-0 | BOLT; AIR FLOW CONT SENSOR | 2 | 1602- | A | 02.559 SCREW M4X10 W/LK&PL WASHER | ||
| 15 | I8-98203 901-0 | INSULATOR | 2 | 1602- | A | (B) | ||
| 174 | I8-97601 967-0 | SENSOR; AIR FLOW CONT | 1 | 1602- | A | |||
| 15 | I8-98214 036-0 | INSULATOR | 1 | 1602- | A | (C) | ||
| 450 | I8-98136 623-0 | CLAMP; HOSE | 1 | 1602- | A | (B) | ||
| 26 | I8-98104 472-1 | DUCT; AIR INT | 1 | 1602- | A | |||
| 232 | I8-98212 086-0 | HOSE; CONN | 1 | 1602- | A | |||
| 379 | I8-98065 694-1 | HOSE; RUBBER | 1 | 1602- | A | |||
| 49 | I0-91180 106-0 | NUT; AIR DUCT | 2 | 1602- | A | 01.062 M6 FLANGE | ||
| 297 | I8-98203 900-0 | BOLT; DUCT | 2 | 1602- | A | |||
| 450 | I8-98136 624-0 | CLAMP; HOSE | 1 | 1602- | A | (A) | ||
| 248 | I8-98150 355-0 | CLIP; RUBBER HOSE | 2 | 1602- | A | 03 .265 ID=20.4 | ||
| 15 | I8-98137 140-0 | INSULATOR | 1 | 1602- | A | (A) |
