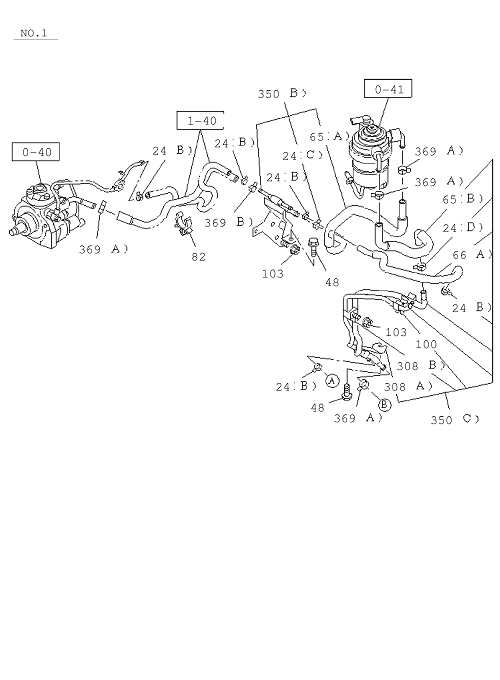

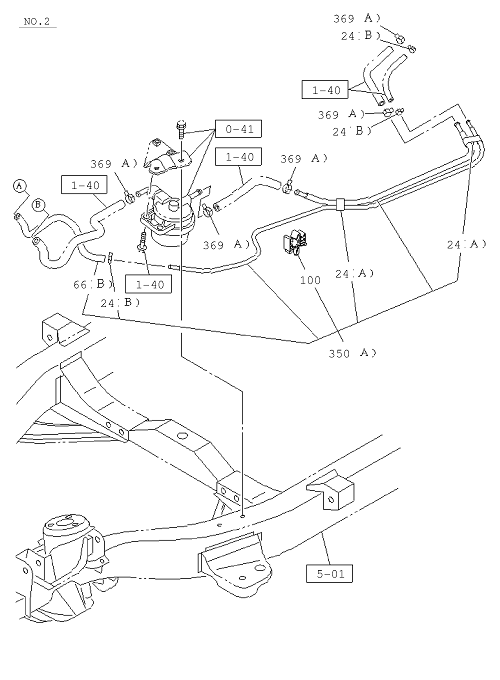

1-41 | FUEL PIPING; CHASSIS
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 24 | I8-98233 886-0 | CLIP; FUEL HOSE | 2 | 1602- | A | (A) | ||
| 66 | I8-98260 462-0 | HOSE; FUEL,RETURN PIPE | 1 | 1602- | A | (A) | ||
| 24 | I8-98008 096-0 | CLIP; FUEL HOSE | 1 | 1602- | A | 03 . 330 (B) ID=11.5 | ||
| 24 | I8-98008 096-0 | CLIP; FUEL HOSE | 6 | 1602- | A | 03 . 330 (B) ID=11.5 | ||
| 82 | I8-94382 792-1 | CLIP; FUEL HOSE | 1 | 1602- | A | 06.672 ID=17 | ||
| 65 | I8-98260 460-0 | HOSE; FUEL,DELIVERY PIPE | 1 | 1602- | A | (A) | ||
| 48 | I0-28650 616-0 | BOLT; BRKT | 2 | 1602- | A | 02 . 343 M6X16 FLANGE | ||
| 100 | I8-98113 581-0 | CLIP; FUEL PIPE | 1 | 1602- | A | |||
| 350 | I8-98260 446-0 | PIPE; FUEL,DEL & RET | 1 | 1602- | A | (B) | ||
| 66 | I8-98260 458-0 | HOSE; FUEL,RETURN PIPE | 1 | 1602- | A | (B) | ||
| 100 | I8-98113 581-0 | CLIP; FUEL PIPE | 1 | 1602- | A | |||
| 24 | I8-98008 096-0 | CLIP; FUEL HOSE | 1 | 1602- | A | 03 . 330 (B) ID=11.5 | ||
| 350 | I8-98260 447-0 | PIPE; FUEL,DEL & RET | 1 | 1602- | A | (C) | ||
| 65 | I8-98260 461-0 | HOSE; FUEL,DELIVERY PIPE | 1 | 1602- | A | (B) | ||
| 350 | I8-98291 250-0 | PIPE; FUEL,DEL & RET | 1 | 1602- | A | 4X4 (UCS***) (A) | ||
| 308 | I8-98233 889-0 | BRACKET; FUEL PIPE | 1 | 1602- | A | (B) | ||
| 24 | I8-98052 395-0 | CLIP; FUEL HOSE | 1 | 1602- | A | 03 . 145 (D) ID=17.2 | ||
| 350 | I8-98291 249-0 | PIPE; FUEL,DEL & RET | 1 | 1602- | A | 4X2(UCB***) (A) | ||
| 369 | I8-98186 048-0 | CLAMP; HOSE,FUEL | 1 | 1602- | A | (B) ID=15.2 | ||
| 24 | I8-98030 682-0 | CLIP; FUEL HOSE | 1 | 1602- | A | 01. 762 (C) ID=16 | ||
| 103 | I0-91180 106-0 | NUT; BRKT | 2 | 1602- | A | 01. 062 M6 FLANGE | ||
| 308 | I8-98233 890-0 | BRACKET; FUEL PIPE | 1 | 1602- | A | (A) | ||
| 369 | I8-98052 395-0 | CLAMP; HOSE,FUEL | 9 | 1602- | A | 03 . 145 (A) ID=17.2 |
