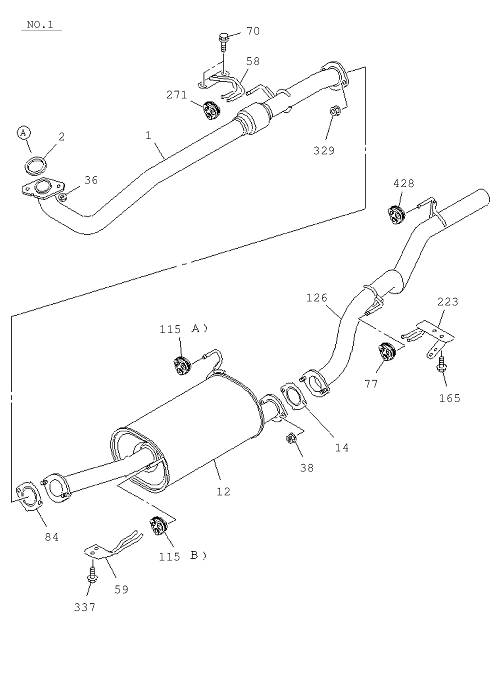

1-50 | EXHAUST PIPE AND SILENCER
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 165 | I8-97945 706-0 | BOLT; SUPPORT RUBBER | 2 | 1602- | A | 01.267 M10X28 W/LK&PL WASHER | ||
| 59 | I8-98196 903-0 | BRACKET; EXH SILENCER,FRT | 1 | 1602- | A | |||
| 271 | I8-97289 169-0 | RUBBER; HANGER,RR PIPE | 1 | 1602- | A | 3706 | ||
| 211 | I8-97379 384-0 | NUT; CONV | 2 | 1602- | A | 03.342 M8 FLANGE | ||
| 1 | I8-98288 053-0 | PIPE; EXH | 1 | 1602- | A | |||
| 38 | I0-91180 110-0 | NUT; SILENCER | 2 | 1602- | A | 03.162 M10 FLANGE | ||
| 36 | I8-97096 192-1 | NUT; EXH PIPE | 2 | 1602- | A | M10 FLANGE | ||
| 2 | I8-98017 270-0 | GASKET; PIPE TO MANIF | 1 | 1602- | A | ID=52 | ||
| 337 | I8-97945 706-0 | BOLT; RUBBER,SUPPORT | 2 | 1602- | A | 01.267 M10X28 W/LK&PL WASHER | ||
| 223 | I8-98227 677-0 | BRACKET; EXH PIPE | 1 | 1602- | A | |||
| 58 | I8-97368 450-0 | BRACKET; EXH PIPE,RR | 1 | 1602- | A | |||
| 541 | I8-97378 062-0 | STUD; CONV TO PIPE | 2 | 1602- | A | 03.601 M8X25 L=36 | ||
| 14 | I8-97263 052-0 | GASKET; SILENCER TO EXH PIPE | 1 | 1602- | A | 03.611 ID= 6 5 | ||
| 84 | I8-97263 052-0 | GASKET; EXH PIPE | 1 | 1602- | A | ID= 6 5 | ||
| 115 | I8-98124 470-0 | RUBBER; MTG,SILENCER | 1 | 1602- | A | (B) | ||
| 77 | I8-97289 169-0 | RUBBER; CUSHION,BRKT | 1 | 1602- | A | 3706 | ||
| 180 | I8-97378 077-0 | BOLT; CONV TO PIPE | 2 | 1602- | A | 03.417 M8X23 FLANGE | ||
| 126 | I8-98196 454-0 | PIPE; EXH,RR | 1 | 1602- | A | |||
| 12 | I8-98196 223-0 | SILENCER ASM; EXH | 1 | 1602- | A | |||
| 70 | I8-97945 706-0 | BOLT; BRKT | 2 | 1602- | A | 01.267 M10X28 W/LK&PL WASHER | ||
| 178 | I8-98132 538-0 | GASKET; CONV TO MANIF | 1 | 1602- | A | |||
| 428 | I8-98124 470-0 | RUBBER; MTG,CLAMP,EXH PIPE | 1 | 1602- | A | |||
| 115 | I8-97289 169-0 | RUBBER; MTG,SILENCER | 1 | 1602- | A | 03.706 (A) | ||
| 329 | I0-91180 110-0 | NUT; EXH PIPE TO PIPE | 2 | 1602- | A | 03.162 M10 FLANGE |
