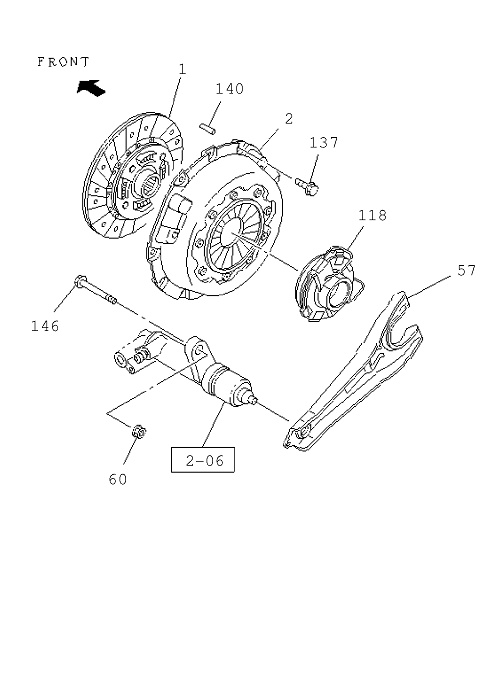

2-01 | CLUTCH
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 137 | I0-28050 816-0 | BOLT; CLU COVER | 6 | 1602- | A | 02 .343 M8X16 FLANGE | ||
| 146 | I0-28051 290-0 | BOLT; SLAVE CYL TO TRANS CASE | 2 | 1602- | A | M12X9 0 FLANGE | ||
| 1 | I8-98280 855-0 | DISC; CLUTCH | 1 | 1602- | A | |||
| 118 | I8-98096 168-0 | BEARING; CLU RELEASE | 1 | 1602- | A | NSK ID=44.1 OD=78 | ||
| 140 | I8-97945 592-0 | PIN; STRAIGHT | 2 | 1602- | A | OD=6 L=27 | ||
| 118 | I8-98096 168-A | BEARING; CLU RELEASE | 1 | 1602- | A | NSK ID=44.1 OD=78 | ||
| 60 | I0-91180 112-0 | 8-97365-654-0 NUT; SLAVE CYL | 1 | 1602- | A | 02 . 042 M12 FLANGE | ||
| 60 | I6-97365 654-0 | FORK; SHIFT,CLU | 1 | 1602- | A | (IADG) | ||
| 60 | I8-97365 654-0 | FORK; SHIFT,CLU | 1 | 1602- | A | |||
| 2 | I8-97947 516-0 | PLATE ASM; PRESSURE,CLU | 1 | 1602- | A |
