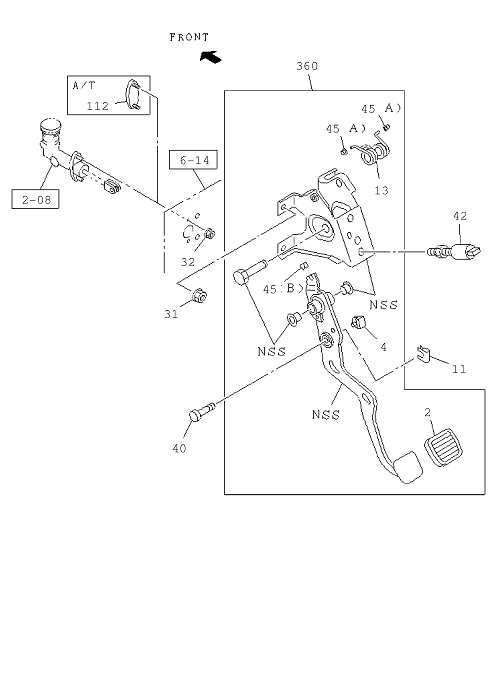

2-03 | CLUTCH PEDAL AND CONTROL
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 112 | I8-97945 168-0 | PLUG; METAL,M/CYL | 1 | 1602- | A | |||
| 2 | I8-97318 799-0 | COVER; CLU PEDAL | 1 | 1602- | B | |||
| 40 | I8-97312 338-0 | PIN; JOINT,CLU DAMPER | 1 | 1602- | B | OD= 7.9 L=2 7.5 | ||
| 11 | I8-98007 161-0 | PIN; SNAP,PUSH ROD TO PEDAL | 1 | 1602- | B | |||
| 42 | I8-98154 210-0 | SWITCH; CLU | 1 | 1602- | B | |||
| 4 | I8-97947 783-0 | STOPPER; CLU PEDAL | 1 | 1602- | B | |||
| 13 | I8-97942 312-0 | SPRING; ASSIST,CLU PEDAL | 1 | 1602- | B | |||
| 32 | I0-91180 108-0 | NUT; BRKT TO CLU M/CYL | 2 | 1602- | AB | 01. 062 M8 FLANGE | ||
| 45 | I8-97942 314-0 | BUSHING; ASSIST SPRING,CLU PEDAL | 1 | 1602- | B | (B) | ||
| 31 | I0-91180 108-0 | NUT; MTG BRKT TO BODY | 4 | 1602- | B | 01. 062 M8 FLANGE | ||
| 360 | I8-98317 389-0 | PEDAL ASM; CLUTCH | 1 | 1602- | B | |||
| 45 | I8-97942 313-0 | BUSHING; ASSIST SPRING,CLU PEDAL | 2 | 1602- | B | (A) |
