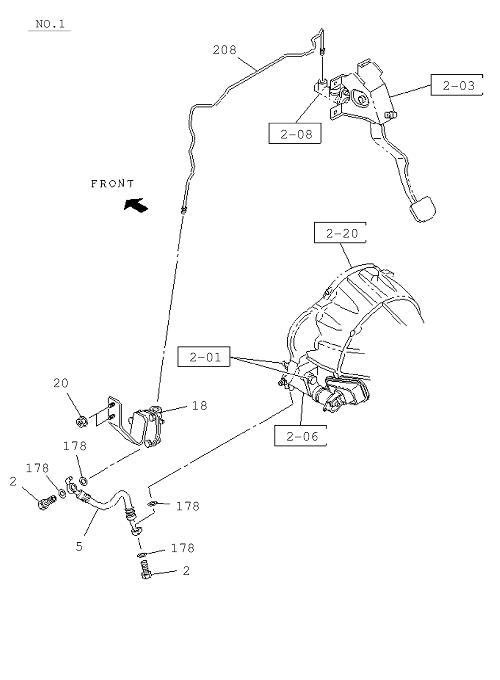

2-05 | CLUTCH PIPING
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 20 | I0-91180 106-0 | NUT; CLU OIL DAMPER | 2 | 1602- | A | 01.062 M6 FLANGE | ||
| 178 | I9-09571 410-0 | GASKET; FLEX HOSE TO M/CYL | 4 | 1602- | A | 08 . 955 ID=10.2 OD=16.0 | ||
| 80 | I8-97947 824-0 | CLIP; HOSE | 2 | 1602- | A | ID=12 WO/PVC COATING | ||
| 2 | I8-97359 818-0 | BOLT; EYE,SLAVE CYL | 2 | 1602- | A | 04.681 M10X22 | ||
| 57 | I8-98097 543-1 | HOSE; CLU M/CYL TO OIL TANK | 1 | 1602- | A | |||
| 5 | I8-98221 241-0 | HOSE; FLEX,CLU PIPE | 1 | 1602- | A | |||
| 18 | I8-97946 616-1 | DAMPER ASM; CLU OIL | 1 | 1602- | A | |||
| 208 | I8-98100 268-1 | PIPE; OIL,M/CYL TO DAMPER CYL | 1 | 1602- | A |
