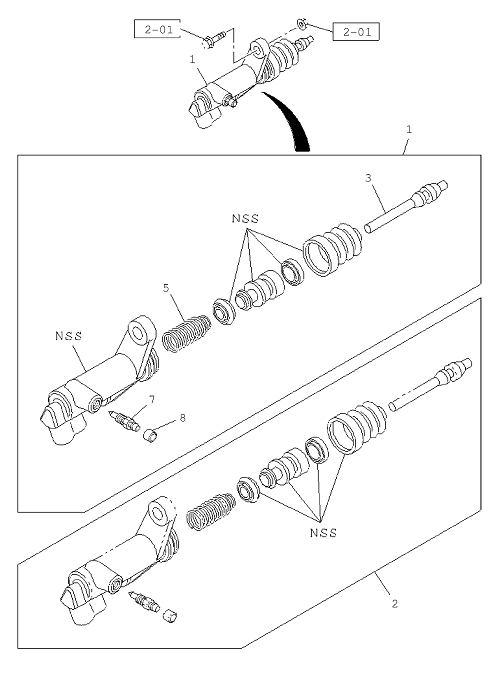

2-06 | CLUTCH SLAVE CYLINDER
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 5 | I8-97942 801-0 | SPRING ASM; PISTON,SLAVE CYL | 1 | 1602- | A | |||
| 8 | I8-97940 638-0 | CAP; BLEEDER,SLAVE CYL | 1 | 1602- | A | OD=10 | ||
| 7 | I8-98020 477-0 | SCREW; BLEEDER,SLAVE CYL | 1 | 1602- | A | M8X10 | ||
| 2 | I5-87832 048-0 | REPAIR KIT; CLU SLAVE CYL | 1 | 1602- | A | |||
| 3 | I8-97945 722-0 | ROD; PUSH,SLAVE CYL | 1 | 1602- | A | |||
| 1 | I8-97946 625-1 | CYLINDER; SLAVE,CLU | 1 | 1602- | A |
