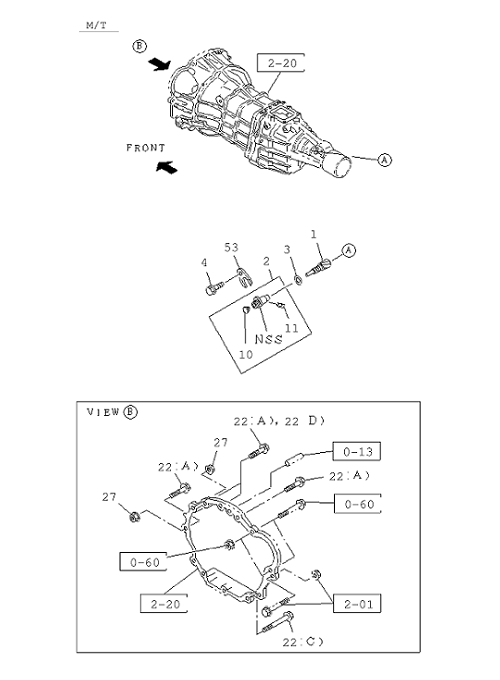

2-25 | SPEEDOMETER DRIVEN GEAR
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I9-09921 100-0 | GASKET; BUSHING | 1 | 1602- | B | ID=21.7 OD=2 8.7 | ||
| 53 | I8-98035 572-0 | PLATE; LOCK,DRIVEN GEAR | 1 | 1602- | B | |||
| 4 | I0-28050 820-0 | BOLT; RET,DRIVEN GEAR | 1 | 1602- | B | M8X2 0 FLANGE | ||
| 27 | I0-91180 112-0 | NUT; CLU HSG TO TRANS | 2 | 1602- | A | 02.042 M12 FLANGE | ||

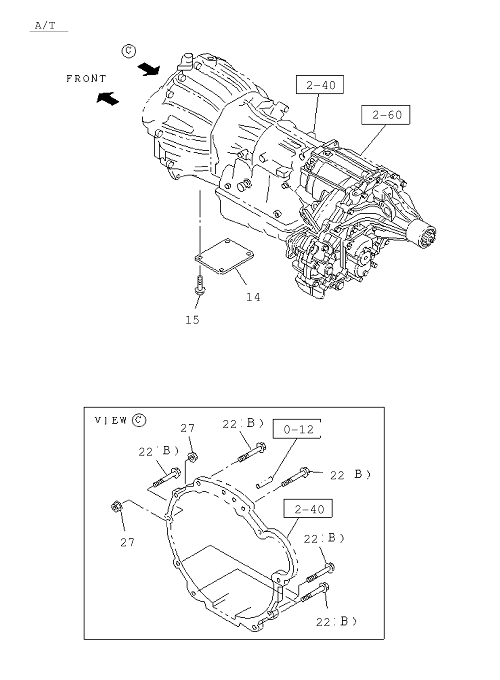

| 14 | I8-98049 857-0 | COVER; UNDER,TRANS | 1 | 1602- | A | |||
| 27 | I0-91180 110-0 | NUT; CLU HSG TO TRANS | 2 | 1602- | B | 03.162 M10 FLANGE | ||
| 22 | I0-28051 060-0 | BOLT; TRANS CASE TO ENG | 2 | 1602- | B | (C) M10X6 0 FLANGE | ||
| 22 | I0-28051 250-0 | BOLT; TRANS CASE TO ENG | 8 | 1602- | A | 00.724 (D) M12X50 FLANGE | ||
| 22 | I0-28051 040-0 | BOLT; TRANS CASE TO ENG | 4 | 1602- | B | (A) M10X4 0 FLANGE | ||
| 1 | I8-97238 583-0 | GEAR; DRIVEN,SPD | 1 | 1602- | B | Z = 17 | ||
| 15 | I0-28650 616-0 | BOLT; UNDER COVER TO TRANS | 4 | 1602- | A | 02 . 343 M6X16 FLANGE | ||
| 10 | I8-97131 328-1 | SEAL; OIL,DRIVE GEAR | 1 | 1602- | B | NOK | ||
| 2 | I8-97305 454-1 | BUSHING; DRIVEN GEAR,SPEEDOMETER | 1 | 1602- | B | |||
| 22 | I0-28051 240-0 | BOLT; TRANS CASE TO ENG | 1 | 1602- | B | (B) M12X4 0 FLANGE | ||
| 11 | I8-94446 571-1 | FILTER; BUSHING,SPEEDOMETER DRIV | 1 | 1602- | B |
