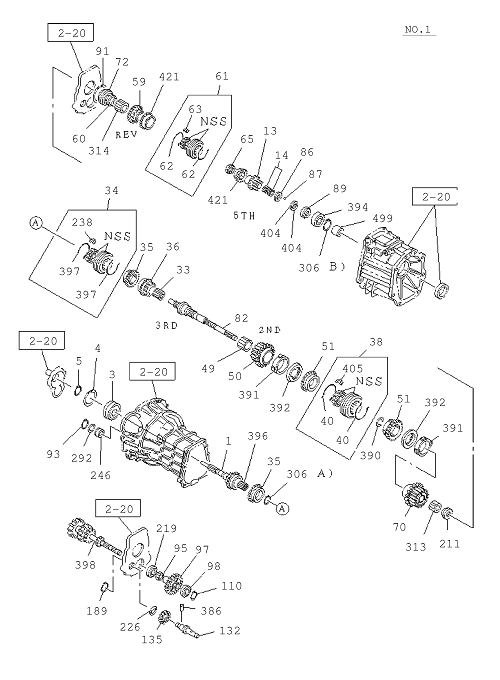

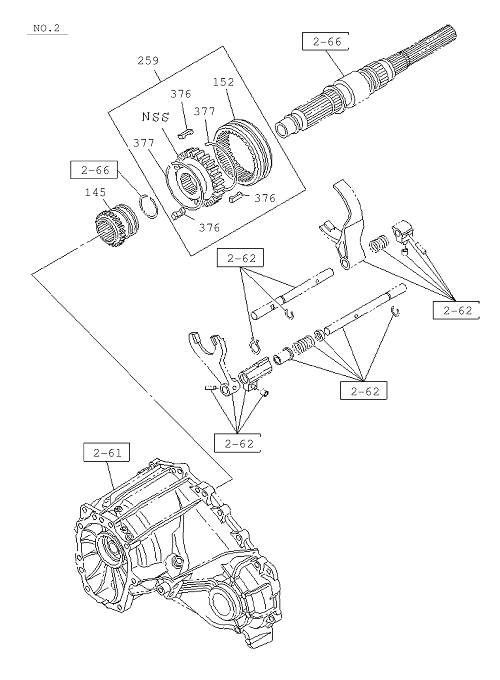

2-26 | MANUAL TRANSMISSION GEAR
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 89 | I8-94422 395-0 | RING; RET,THRUST RING | 1 | 1602- | A | ID=31.8 | ||
| 86 | I8-94422 110-2 | WASHER; THRUST,5TH | 1 | 1602- | A | T=7 . 90 WHITE | ||
| 226 | I8-94223 069-1 | WASHER; THRUST,REV GEAR,COUNTER | 1 | 1602- | A | ID=30.0 | ||
| 35 | I8-94151 510-3 | RING; BLOCK,4TH & 3RD | 2 | 1602- | A | Z = 4 5 | ||
| 87 | I8-94201 356-0 | BALL; THRUST WASHER | 1 | 1602- | A | |||
| 51 | I8-98115 804-0 | RING; BLOCK,LOW & 2ND | 2 | 1602- | A | Z = 3 6 | ||
| 189 | I8-94422 101-0 | RING; SNAP,REV,GEAR | 1 | 1602- | A | T=1 . 30 YELLOW | ||
| 110 | I8-94422 105-0 | RING; SNAP,COUNTER BRG | 1 | 1602- | A | T=1 . 30 BLUE | ||
| 50 | I8-97300 953-1 | GEAR; 2ND,MAINSHAFT | 1 | 1602- | A | Z = 3 4 | ||
| 91 | I8-94322 411-0 | RING; SNAP,CENTER BRG,MAINSHAFT | 1 | 1602- | A | ID=76.2 | ||
| 110 | I8-94422 107-0 | RING; SNAP,COUNTER BRG | 1 | 1602- | A | T=1.50 GREEN | ||
| 34 | I8-97188 798-0 | SYNCHRONIZER; 4TH & 3RD | 1 | 1602- | A | |||
| 398 | I8-97216 164-1 | GEAR; COUNTER | 1 | 1602- | A | Z=44-32-25-19 | ||
| 421 | I8-97071 688-0 | RING; BLOCK,REV & 5TH | 2 | 1602- | A | Z = 3 6 | ||
| 110 | I8-94422 106-0 | RING; SNAP,COUNTER BRG | 1 | 1602- | A | T=1 . 40 PINK | ||
| 292 | I8-94422 081-0 | RING; SNAP,BRG OUTER | 1 | 1602- | A | NSK | ||
| 110 | I8-94422 104-0 | RING; SNAP,COUNTER BRG | 1 | 1602- | A | T=1.20 YELLOW | ||
| 376 | I8-97238 590-0 | INSERT; 4X2-4X4 SYN,TRANSFER | 3 | 1602- | A | |||
| 392 | I8-98115 793-0 | RING; OUTSIDE,SYN | 2 | 1602- | A | OD=90.0 | ||
| 152 | I8-94363 060-0 | SLEEVE; 4X2-4X4 SHIFT,TRANSFER | 1 | 1602- | A | |||
| 86 | I8-94422 111-2 | WASHER; THRUST,5TH | 1 | 1602- | A | T=8.00 YELLOW | ||
| 40 | I8-94448 045-0 | SPRING; INSERT,LOW & 2ND | 2 | 1602- | A | |||
| 132 | I8-98249 849-0 | SHAFT; REV | 1 | 1602- | A | |||
| 4 | I8-94422 083-0 | RING; SNAP,BRG TO TOP GEAR SHAFT | 1 | 1602- | A | NSK | ||
| 377 | I8-94448 045-0 | SPRING; INSERT,4X2-4X4 SYN,TRANS | 2 | 1602- | A | |||
| 306 | I8-97129 616-0 | RING; SNAP,MAINSHAFT | 1 | 1602- | A | (A) T=1.85 YELLOW | ||
| 63 | I8-98189 965-0 | INSERT; SYN,REV & 5TH | 3 | 1602- | A | |||
| 314 | I8-94422 064-0 | BEARING; NEEDLE,REV GEAR | 1 | 1602- | A | JTEKT | ||
| 386 | I9-08150 640-0 | PIN; REV SHAFT | 1 | 1602- | A | OD= 6 L=4 0 | ||
| 110 | I8-94422 103-0 | RING; SNAP,COUNTER BRG | 1 | 1602- | A | T=1.10 WHITE | ||
| 390 | I8-94422 088-2 | RING; SNAP,CLU HUB | 1 | 1602- | A | T=1.80 WHITE | ||
| 189 | I8-94422 102-0 | RING; SNAP,REV,GEAR | 1 | 1602- | A | T=1 . 40 BLUE | ||
| 306 | I9-09180 030-0 | RING; SNAP,MAINSHAFT | 1 | 1602- | A | (B) ID=27.9 | ||
| 211 | I8-94148 935-0 | BEARING; THRUST NEEDLE,1ST GEAR | 1 | 1602- | A | NSK | ||
| 238 | I8-94448 202-2 | INSERT | 3 | 1602- | A | |||
| 313 | I8-94161 990-2 | BEARING; NEEDLE,LOW GEAR | 1 | 1602- | A | NSK | ||
| 72 | I8-97943 878-0 | BEARING; BALL,MAINSHAFT | 1 | 1602- | A | NSK | ||
| 135 | I8-98146 726-1 | GEAR; REV IDLER | 1 | 1602- | A | Z = 3 3 | ||
| 86 | I8-94422 112-2 | WASHER; THRUST,5TH | 1 | 1602- | A | T=8.10 GREEN | ||
| 306 | I8-97129 617-0 | RING; SNAP,MAINSHAFT | 1 | 1602- | A | (A) T=1.80 WHITE | ||
| 98 | I8-97018 535-A | BEARING; BALL,COUNTER END | 1 | 1602- | A | (IADG) NSK | ||
| 219 | I8-94436 929-0 | BEARING; BALL,CLUSTER,RR | 1 | 1602- | A | NSK | ||
| 33 | I8-94161 990-2 | BEARING; NEEDLE,3RD GEAR | 1 | 1602- | A | 04.419 NSK | ||
| 145 | I8-98063 369-1 | SLEEVE; HIGH-LOW SHIFT,TRANSFER | 1 | 1602- | A | |||
| 404 | I8-94421 892-0 | PLATE; THRUST | 2 | 1602- | A | |||
| 93 | I9-09180 025-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1602- | A | 08.934 ID=23.2 | ||
| 65 | I8-94422 071-1 | NUT; MAINSHAFT | 1 | 1602- | A | M34 | ||
| 1 | I8-98210 247-0 | SHAFT; TOP GEAR,TRANS | 1 | 1602- | A | Z = 2 6 | ||
| 60 | I8-97031 079-0 | COLLAR; REV MAIN | 1 | 1602- | A | |||
| 82 | I8-97300 980-0 | SHAFT; MAIN,TRANS | 1 | 1602- | A | Z=28-34-26-27 | ||
| 246 | I8-97029 600-4 | BEARING; ROLLER,COUNTER SHAFT FR | 1 | 1602- | A | NSK | ||
| 3 | I8-94380 015-A | BEARING; TOP GEAR SHAFT | 1 | 1602- | A | (IADG) NSK | ||
| 391 | I8-94363 056-0 | RING; INSIDE,SYN | 2 | 1602- | A | OD=95.8 | ||
| 306 | I8-97129 615-0 | RING; SNAP,MAINSHAFT | 1 | 1602- | A | (A) T=1.90 BLUE | ||
| 390 | I8-94422 089-1 | RING; SNAP,CLU HUB | 1 | 1602- | A | T=1.85 YELLOW | ||
| 36 | I8-98210 226-0 | GEAR; 3RD,MAINSHAFT | 1 | 1602- | A | Z = 2 7 | ||
| 397 | I8-94422 075-0 | SPRING; INSERT,4TH & 3RD | 2 | 1602- | A | |||
| 97 | I8-94377 434-0 | GEAR; 5TH,COUNTER | 1 | 1602- | A | Z = 50 | ||
| 3 | I8-94380 015-A | BEARING; TOP GEAR SHAFT | 1 | 1602- | A | NSK | ||
| 13 | I8-98210 227-0 | GEAR; 5TH,MAINSHAFT | 1 | 1602- | A | Z = 2 2 | ||
| 499 | I8-97300 954-0 | COLLAR; OIL SEAL | 1 | 1602- | A | |||
| 59 | I8-98210 228-0 | GEAR; REV MAINSHAFT | 1 | 1602- | A | Z = 41 | ||
| 86 | I8-94422 113-2 | WASHER; THRUST,5TH | 1 | 1602- | A | T=8 . 20 BLUE | ||
| 62 | I8-98189 962-0 | SPRING; INSERT,REV & 5TH | 2 | 1602- | A | |||
| 189 | I8-94422 100-0 | RING; SNAP,REV,GEAR | 1 | 1602- | A | T=1.20 WHITE | ||
| 95 | I8-94377 433-0 | GEAR; REV,COUNTER | 1 | 1602- | A | Z = 19 | ||
| 61 | I8-97188 800-0 | SYNCHRONIZER; REV & 5TH | 1 | 1602- | A | |||
| 35 | I6-94151 510-0 | RING; BLOCK,4TH & 3RD | 2 | 1602- | A | (IADG) Z = 4 5 | ||
| 390 | I8-94422 090-2 | RING; SNAP,CLU HUB | 1 | 1602- | A | T=1.90 BLUE | ||
| 98 | I8-97018 535-A | BEARING; BALL,COUNTER END | 1 | 1602- | A | NSK | ||
| 314 | I8-94422 064-0 | BEARING; NEEDLE,REV GEAR | 1 | 1602- | A | NSK | ||
| 70 | I8-97300 952-1 | GEAR; 1ST,MAINSHAFT | 1 | 1602- | A | Z = 4 5 | ||
| 14 | I8-98172 356-0 | BEARING; NEEDLE,5TH | 1 | 1602- | A | NTN | ||
| 259 | I8-97234 225-0 | SYNCHRONIZER; 4X2 - 4X4,TRANSFER | 1 | 1602- | A | |||
| 38 | I8-94363 059-1 | SYNCHRONIZER; LOW & 2ND | 1 | 1602- | A | |||
| 405 | I8-94363 062-1 | INSERT; SYN,LOW & 2ND | 3 | 1602- | A | |||
| 110 | I8-94422 108-0 | RING; SNAP,COUNTER BRG | 1 | 1602- | A | T=1.60 BROWN | ||
| 5 | I8-97254 316-0 | RING; SNAP,BRG TO TOP GEAR SHAFT | 1 | 1602- | A | 04.525 ID=37.4 | ||
| 394 | I8-97018 921-1 | BEARING; BALL,MAINSHAFT RR | 1 | 1602- | A | 04 .352 NSK | ||
| 396 | I8-98172 355-0 | BEARING; NEEDLE,MAINSHAFT | 1 | 1602- | A | NSK | ||
| 49 | I9-00096 625-0 | BEARING; NEEDLE,2ND GEAR | 1 | 1602- | A | JTEKT |
