2-35 | MANUAL TRANSMISSION SHIFT CONTROL
MUX
MU-X 2016

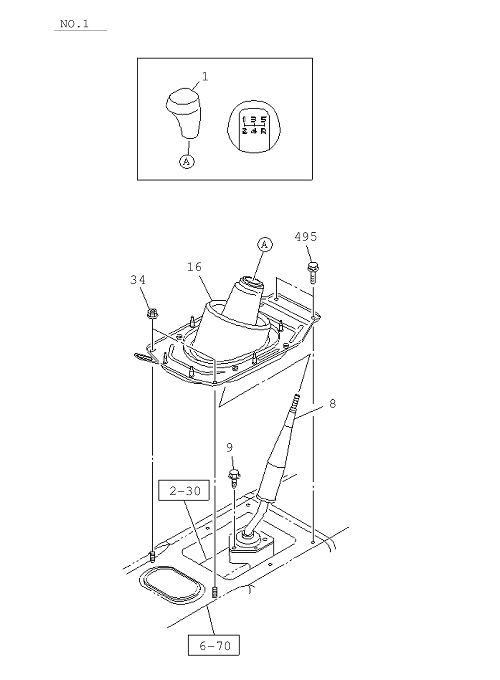

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 9 | I0-28650 820-0 | BOLT; CHANGE LEVER | 3 | 1602- | A | 01.531 M8X2 0 FLANGE | ||
| 495 | I0-28650 616-0 | SCREW; GROMMET | 2 | 1602- | A | 02 . 343 M6X16 FLANGE | ||
| 16 | I8-98186 367-0 | BOOT; CHANGE LEVER | 1 | 1602- | A | |||
| 34 | I8-98055 704-0 | NUT | 2 | 1602- | A | M6 FLANGE | ||
| 1 | I8-97425 928-1 | KNOB; CHANGE LEVER | 1 | 1602- | A | BLACK | ||
| 34 | I8-97943 618-0 | BUSHING; CHANGE LEVER | 1 | 1602- | A | |||
| 22 | I8-97945 801-0 | COVER; DUST,CHANGE LEVER | 1 | 1602- | A | |||

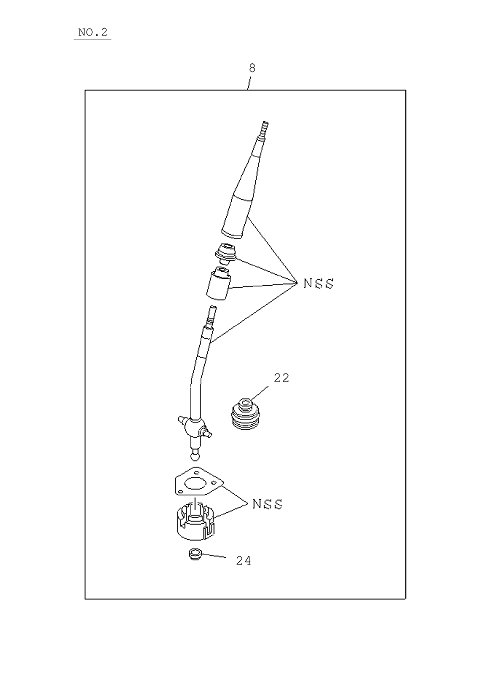

| 8 | I8-98202 733-1 | LEVER; CHANGE | 1 | 1602- | A |
