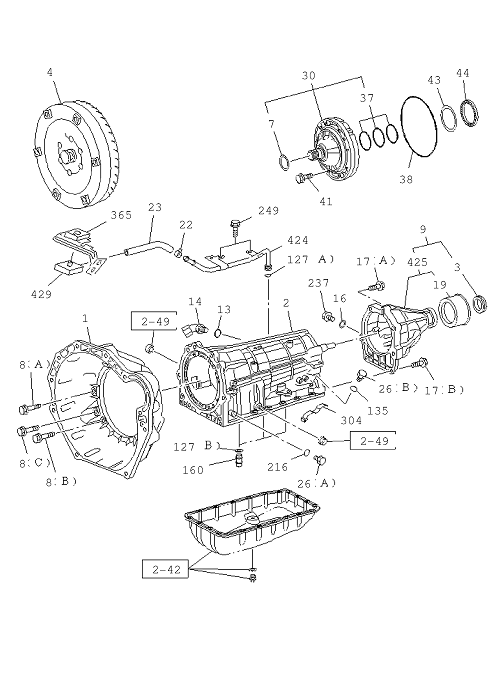

2-41 | AUTO TRANS CASE, CONVERTER AND OIL PUMP
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 22 | I8-97173 219-0 | CLIP; BREATHER HOSE,A/T | 1 | 1602- | B | 03.163 ID=11 | ||
| 127 | I8-98189 476-0 | GASKET; CASE TO COVER | 1 | 1602- | B | (A) ID=5 | ||
| 7 | I8-98189 493-0 | SEAL; OIL,LIP,A/T | 1 | 1602- | B | |||
| 4 | I8-98189 761-0 | CONVERTER ASM; TORQUE,A/T | 1 | 1602- | B | |||
| 37 | I8-98189 492-0 | RING; SEAL,OIL PUMP,A/T | 3 | 1602- | B | ID=63 | ||
| 8 | I8-98189 487-0 | BOLT; HSG TO CASE | 2 | 1602- | B | (C) M12X38 | ||
| 8 | I8-98189 486-0 | BOLT; HSG TO CASE | 2 | 1602- | B | (B) M10X35 | ||
| 26 | I8-98189 490-0 | PLUG; TRANS CASE | 1 | 1602- | B | (B) M14X12 | ||
| 43 | I8-98189 495-0 | RACE; THRUST BRG,OIL PUMP,A/T | 1 | 1602- | B | ID=74 | ||
| 216 | I5-34119 001-0 | GASKET; SOLENOID OUTER | 5 | 1602- | B | 04.103 ID=6 | ||
| 160 | I8-98189 489-0 | GASKET; BRK DRUM,A/T | 3 | 1602- | B | |||
| 424 | I8-98189 475-0 | TUBE; BREATHER | 1 | 1602- | B | |||
| 17 | I8-94479 951-0 | BOLT; REAR COVER TO CASE | 2 | 1602- | B | (B) M10X35 | ||
| 135 | I8-94479 724-0 | GASKET; PLUG,A/T CASE | 1 | 1602- | B | 04 .265 ID=11.7 | ||
| 17 | I8-94473 632-0 | BOLT; REAR COVER TO CASE | 4 | 1602- | B | (A) M10X45 | ||
| 23 | I0-02857 300-0 | HOSE; BREATHER,A/T | 1 | 1602- | B | 04.104 L=220 SERVICED BY L=3000 | ||
| 237 | I8-98189 760-0 | PLUG; COVER | 1 | 1602- | B | |||
| 38 | I8-98189 494-0 | GASKET; OIL PUMP,A/T | 1 | 1602- | B | ID=218 | ||
| 1 | I8-98189 468-0 | HOUSING; CONV,A/T | 1 | 1602- | B | |||
| 425 | I8-98189 755-0 | COVER SUB ASM; RR,A/T | 1 | 1602- | B | |||
| 9 | I8-98189 754-0 | COVER ASM; RR,A/T | 1 | 1602- | B | |||
| 41 | I8-97141 759-0 | BOLT; OIL PUMP HSG,A/T | 10 | 1602- | B | M8X40 | ||
| 16 | I8-98189 759-0 | GASKET; EXT HSG | 1 | 1602- | B | ID=15.4 | ||
| 429 | I8-98161 881-0 | CLIP; BREATHER HOSE | 1 | 1602- | B | |||
| 304 | I8-98189 484-0 | SPRING; LEAF,A/T | 1 | 1602- | B | |||
| 8 | I8-94257 082-0 | BOLT; HSG TO CASE | 6 | 1602- | B | (A) M10X35 | ||
| 30 | I8-98189 491-0 | PUMP ASM; OIL,A/T | 1 | 1602- | B | |||
| 2 | I8-98189 485-0 | CASE ASM; A/T | 1 | 1602- | B | |||
| 26 | I5-34119 002-0 | PLUG; TRANS CASE | 5 | 1602- | B | 04.103 (A) | ||
| 249 | I8-94252 680-0 | BOLT; BRKT | 2 | 1602- | B | 04.050 M6X10 | ||
| 365 | I8-98161 920-1 | BRACKET; BREATHER HOSE,A/T | 1 | 1602- | B | 4047 | ||
| 14 | I8-98189 473-0 | UNION; OIL COOLER RETURN PIPE | 2 | 1602- | B | |||
| 127 | I8-98189 488-0 | GASKET; CASE TO COVER | 3 | 1602- | B | (B) ID=10 | ||
| 19 | I8-98189 756-0 | COVER; DUST,REAR COVER | 1 | 1602- | B | |||
| 44 | I8-98189 496-0 | BEARING; THRUST,OIL PUMP,A/T | 1 | 1602- | B | |||
| 13 | I8-94479 724-0 | GASKET; OIL COOLER PIPE | 2 | 1602- | B | 04 .265 ID=11.7 | ||
| 3 | I8-98189 757-0 | SEAL; OIL,RR COVER,A/T | 1 | 1602- | B |
