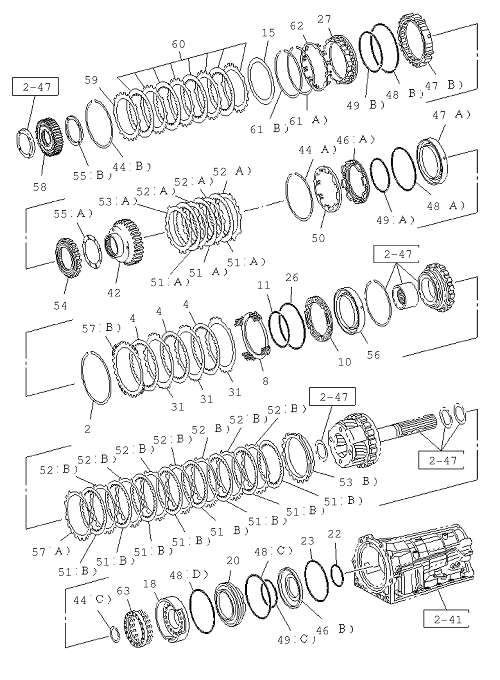

2-46 | AUTO TRANS SUPPORT AND PLANETARY GEAR
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 15 | I8-98189 635-0 | PLATE; BRK CUSHION,A/T | 1 | 1602- | B | |||
| 42 | I8-98189 614-0 | RACE; THRUST BRG,A/T | 1 | 1602- | B | |||
| 57 | I8-98189 661-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=2.11 | ||
| 57 | I8-98189 666-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=2.81 | ||
| 60 | I8-98189 634-0 | DISC ASM; BRAKE | 1 | 1602- | B | |||
| 53 | I8-98189 612-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=2 . 6 | ||
| 53 | I8-98189 610-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=2 .2 | ||
| 49 | I8-98189 620-0 | GASKET; BRK PISTON | 1 | 1602- | B | (B) ID=137 | ||
| 44 | I8-97184 521-0 | RING; RET | 1 | 1602- | B | 04 .485 (A) ID=160 | ||
| 11 | I8-98189 621-0 | GASKET; BRK PISTON,FRT,INNER,A/T | 1 | 1602- | B | ID=117 | ||
| 53 | I8-98189 609-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=2 . 0 | ||
| 4 | I8-98189 625-0 | DISC ASM; CLU & FACING,2ND BRK,A | 3 | 1602- | B | |||
| 46 | I8-98189 643-0 | PISTON; BRK | 1 | 1602- | B | (B) | ||
| 62 | I8-98189 628-0 | SPRING; BRK PISTON | 1 | 1602- | B | |||
| 57 | I8-98189 624-0 | FLANGE; BRAKE | 1 | 1602- | B | (B) T=4 . 6 | ||
| 48 | I8-98189 650-0 | GASKET; BRK | 1 | 1602- | B | (D) ID=132 | ||
| 18 | I8-98189 644-0 | PISTON; LOW & REV BRK,A/T | 1 | 1602- | B | |||
| 53 | I8-98189 658-0 | FLANGE; BRAKE | 1 | 1602- | B | (B) T=9 . 0 | ||
| 63 | I8-98189 654-0 | SPRING; 1ST & REVS BRAKE RETURN | 1 | 1602- | B | |||
| 48 | I8-98189 649-0 | GASKET; BRK | 1 | 1602- | B | (C) ID=12 8 | ||
| 23 | I8-98189 646-0 | GASKET; BRK PISTON,RR,OUTER,A/T | 1 | 1602- | B | ID=116 | ||
| 48 | I8-98189 604-0 | GASKET; BRK | 1 | 1602- | B | (A) ID=143 | ||
| 57 | I8-98189 668-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=3.09 | ||
| 47 | I8-98189 601-0 | CYLINDER; BRK | 1 | 1602- | B | (A) | ||
| 55 | I8-98189 640-0 | WASHER; THRUST | 1 | 1602- | B | (B) | ||
| 57 | I8-98189 662-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=2 .25 | ||
| 57 | I8-98189 667-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=2.95 | ||
| 61 | I8-98189 632-0 | RING; SNAP,BRK | 1 | 1602- | B | (A) ID=125 | ||
| 50 | I8-98189 606-0 | SPRING; BRK PISTON RETURN | 1 | 1602- | B | |||
| 49 | I8-98189 605-0 | GASKET; BRK PISTON | 1 | 1602- | B | (A) ID=127 | ||
| 51 | I8-98189 656-0 | DISC; BRK | 8 | 1602- | B | (B) OD=14 0 | ||
| 52 | I8-98189 608-0 | PLATE; BRAKE | 3 | 1602- | B | (A) T=2 .4 | ||
| 8 | I8-98189 769-0 | SPRING; RETURN,FRT BRK,A/T | 1 | 1602- | B | |||
| 27 | I8-98189 629-0 | PISTON; BRK,RR,2ND BRK,A/T | 1 | 1602- | B | |||
| 46 | I8-98189 767-0 | PISTON; BRK | 1 | 1602- | B | (A) | ||
| 52 | I8-98189 657-0 | PLATE; BRAKE | 7 | 1602- | B | (B) ID=125 | ||
| 57 | I8-98189 659-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=1 . 8 | ||
| 58 | I8-98189 639-0 | CLUTCH ASM; 1WAY | 1 | 1602- | B | |||
| 59 | I8-98189 636-0 | FLANGE; BRAKE NO3 | 1 | 1602- | B | |||
| 44 | I8-98189 655-0 | RING; RET | 1 | 1602- | B | (C) ID= 61 | ||
| 57 | I8-98189 665-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=2.67 | ||
| 57 | I8-98189 664-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=2.53 | ||
| 2 | I8-98189 627-0 | RING; RET,FRT BRK,2ND BRK,A/T | 1 | 1602- | B | ID=14 8 | ||
| 51 | I8-98189 607-0 | DISC; BRK | 3 | 1602- | B | (A) OD=158 | ||
| 10 | I8-98189 768-0 | PISTON; BRK,FRT,2ND BRK,A/T | 1 | 1602- | B | |||
| 48 | I8-98189 631-0 | GASKET; BRK | 1 | 1602- | B | (B) ID=14 9 | ||
| 57 | I8-98189 663-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=2 .39 | ||
| 57 | I8-98189 669-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=3.23 | ||
| 26 | I8-98189 620-0 | GASKET; BRK PISTON,FRT,OUTER,A/T | 1 | 1602- | B | ID=13 7 | ||
| 20 | I8-98189 652-0 | SLEEVE; BRK REACTION,A/T | 1 | 1602- | B | |||
| 47 | I8-98189 630-0 | CYLINDER; BRK | 1 | 1602- | B | (B) | ||
| 57 | I8-98189 660-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=1 . 97 | ||
| 54 | I8-98189 613-0 | CLUTCH ASM; 1WAY | 1 | 1602- | B | |||
| 55 | I8-98189 615-0 | WASHER; THRUST | 1 | 1602- | B | (A) | ||
| 53 | I8-98189 611-0 | FLANGE; BRAKE | AR | 1602- | B | (A) T=2 .4 | ||
| 22 | I8-98189 645-0 | GASKET; BRK PISTON,RR,INNER,A/T | 1 | 1602- | B | ID= 6 7 | ||
| 31 | I8-98189 626-0 | PLATE; CLU BACKING,2ND BRK,A/T | 3 | 1602- | B | T=2 . 0 | ||
| 61 | I8-98189 633-0 | RING; SNAP,BRK | 1 | 1602- | B | (B) ID=173 | ||
| 49 | I8-98189 647-0 | GASKET; BRK PISTON | 1 | 1602- | B | (C) ID=79 | ||
| 56 | I8-98189 619-0 | CYLINDER; BRAKE | 1 | 1602- | B | |||
| 44 | I8-98189 637-0 | RING; RET | 1 | 1602- | B | (B) ID=162 |
