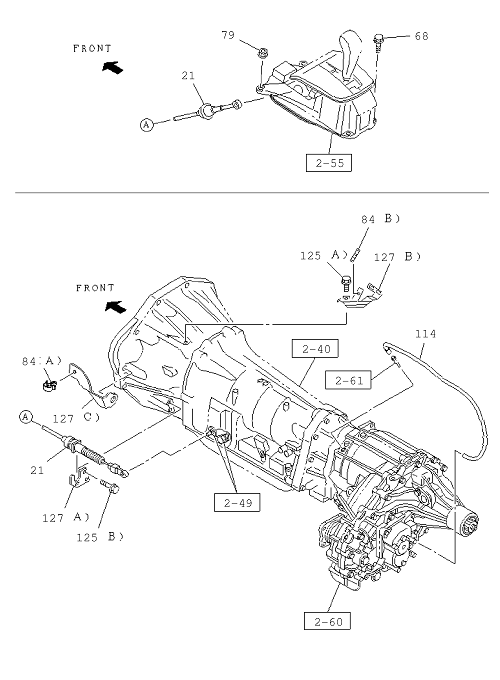

2-56 | AUTO TRANS CONTROL LINK
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 114 | I8-98183 634-0 | HOSE; BREATHER | 1 | 1602- | A | L=52 7 | ||
| 125 | I0-28050 816-0 | BOLT; BRKT | 2 | 1602- | B | 02 .343 (B) M8X16 FLANGE | ||
| 127 | I8-98098 411-1 | BRACKET; A/T CONT CABLE | 1 | 1602- | B | (B) | ||
| 127 | I8-98098 409-0 | BRACKET; A/T CONT CABLE | 1 | 1602- | B | (A) | ||
| 84 | I8-97369 561-0 | CLIP; A/T CONT CABLE | 1 | 1602- | B | 03 .682 (B) ID=7 L= 7.5 | ||
| 84 | I8-94450 392-0 | CLIP; A/T CONT CABLE | 1 | 1602- | B | 02.559 (A) ID=10 | ||
| 79 | I8-98055 704-0 | NUT; CONT CABLE | 2 | 1602- | B | 08.915 M6 FLANGE | ||
| 125 | I0-28050 810-0 | BOLT; BRKT | 1 | 1602- | B | 03 .407 (A) M8X10 FLANGE | ||
| 68 | I0-28650 620-0 | BOLT; A/T CONT CABLE | 2 | 1602- | B | 03.162 M6X20 FLANGE | ||
| 127 | I8-98098 410-1 | BRACKET; A/T CONT CABLE | 1 | 1602- | B | (C) | ||
| 21 | I8-98072 710-1 | CABLE; A/T | 1 | 1602- | B |
