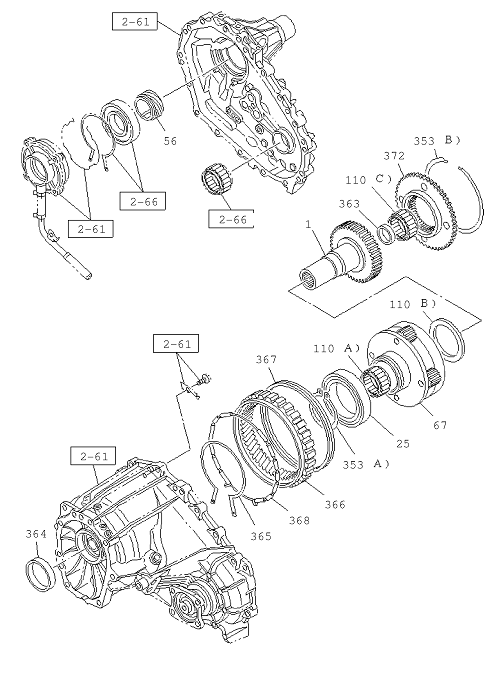

2-65 | MANUAL TRANSFER GEAR; INPUT AND IDLE
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 110 | I8-97234 743-0 | BEARING; NEEDLE | 1 | 1602- | B | (C) | ||
| 363 | I8-97238 725-0 | CAP; SEAL,INPUT SHAFT | 1 | 1602- | B | |||
| 364 | I8-97238 999-0 | SEAL; OIL,COVER,INPUT | 1 | 1602- | B | 04 . 510 NOK | ||
| 353 | I8-97305 403-0 | RING; SNAP,CARRIER | 1 | 1602- | B | (A) ID=65.5 | ||
| 353 | I8-97305 406-0 | RING; SNAP,CARRIER | 1 | 1602- | B | (B) ID=13 7 | ||
| 67 | I8-98158 116-0 | CARRIER; TRANSFER | 1 | 1602- | B | |||
| 368 | I8-97320 914-0 | RING; DAMPER,TRANSFER | 1 | 1602- | B | ID=16 8.4 OD=178 | ||
| 366 | I8-97231 831-2 | GEAR; INTE RNAL,HIGH-LOW | 1 | 1602- | B | Z=27 | ||
| 110 | I8-97234 741-0 | BEARING; NEEDLE | 1 | 1602- | B | (B) | ||
| 1 | I8-97373 467-0 | SHAFT; GEAR,INPUT | 1 | 1602- | B | |||
| 367 | I8-97247 459-0 | RING; RETAINING,SPIRAL TYPE | 1 | 1602- | B | ID=162 OD=176 | ||
| 110 | I6-97234 739-0 | BEARING; NEEDLE | 1 | 1602- | B | (IADG) (A) | ||
| 110 | I8-97234 739-0 | BEARING; NEEDLE | 1 | 1602- | B | (A) | ||
| 56 | I8-97238 581-0 | GEAR; SPD DRIVE,TRANSFER | 1 | 1602- | B | Z= 6 | ||
| 365 | I8-97305 010-1 | RING; RETAINING,OUTER INPUT | 1 | 1602- | B | ID=97 | ||
| 25 | I8-97234 735-0 | BEARING; BALL,INPUT SHAFT | 1 | 1602- | B | NSK | ||
| 372 | I8-97358 244-0 | TEETH; DOG,PLANETARY | 1 | 1602- | B | 01.462 Z=56 |
