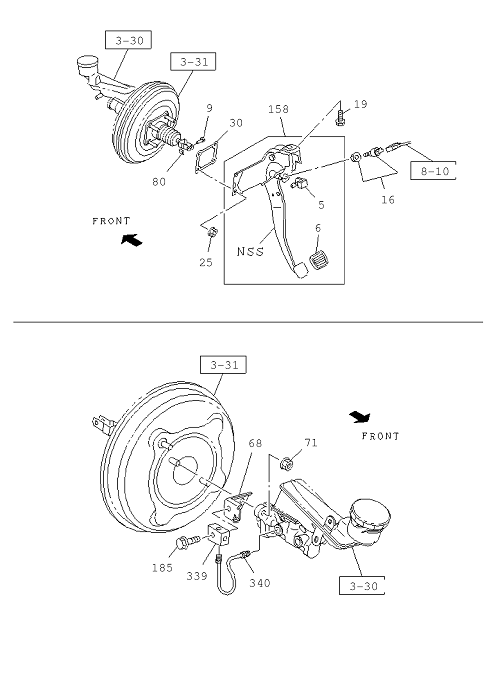

3-10 | BRAKE PEDAL AND CONTROL
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 19 | I8-97947 104-1 | BOLT; BRKT | 1 | 1602- | AB | M8X22.5 W/PL WASHER | ||
| 9 | I8-97311 602-0 | PIN; JAW JOINT | 1 | 1602- | AB | |||
| 16 | I8-98140 487-0 | SWITCH; STOP LAMP | 1 | 1602- | B | |||
| 16 | I8-98140 486-0 | SWITCH; STOP LAMP | 1 | 1602- | A | EXC. AUTO CRUISE CONT<K3 0> | ||
| 340 | I8-97947 756-0 | PIPE; BRK M/CYL | 1 | 1602- | B | |||
| 25 | I8-97581 233-0 | NUT; FLANGE,MTG BRKT TO BODY | 4 | 1602- | AB | M8 FLANGE | ||
| 68 | I8-98163 234-0 | BRACKET; SERVO TO DASH PANEL | 1 | 1602- | B | |||
| 6 | I8-97318 799-0 | COVER; BRK PEDAL | 1 | 1602- | B | |||
| 158 | I8-98061 818-1 | PEDAL ASM; BRK | 1 | 1602- | A | |||
| 16 | I8-98140 487-0 | SWITCH; STOP LAMP | 1 | 1602- | A | AUTO CRUISE CONT<K3 0 > | ||
| 339 | I8-98163 269-0 | CONNECTOR; OIL PIPE | 1 | 1602- | B | |||
| 71 | I8-98031 675-0 | NUT; BRK M/CYL | 2 | 1602- | AB | |||
| 5 | I1-73996 231-1 | STOPPER; BRK PEDAL | 1 | 1602- | AB | |||
| 158 | I8-98061 817-1 | PEDAL ASM; BRK | 1 | 1602- | B | |||
| 80 | I8-98007 161-0 | PIN; SNAP,BRK PEDAL | 1 | 1602- | AB | .5784722222222 | ||
| 30 | I8-97301 539-0 | GASKET; M/VAC TO BODY | 1 | 1602- | AB | |||
| 185 | I8-97947 755-0 | BOLT; BRKT | 1 | 1602- | B | M8X3 5 FLANGE | ||
| 6 | I8-97263 035-0 | COVER; BRK PEDAL | 1 | 1602- | A |
