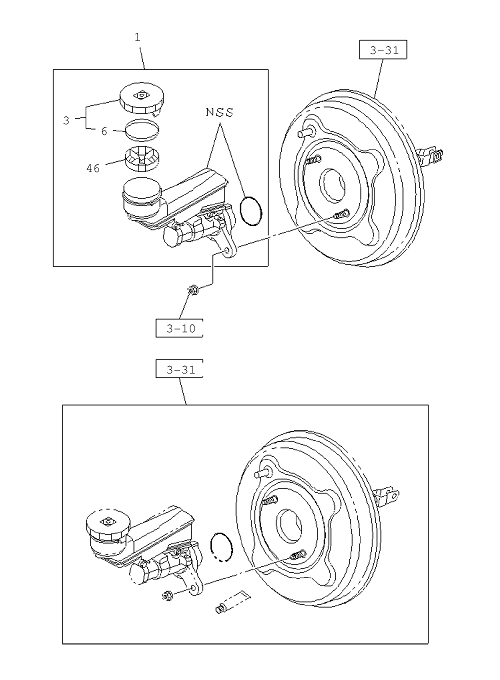

3-30 | BRAKE MASTER CYLINDER
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 46 | I8-98047 702-0 | FILTER; OIL TANK,M/CYL | 1 | 1602- | AB | |||
| 6 | I8-98047 706-0 | DIAPHRAGM; BRK M/CYL | 1 | 1602- | AB | |||
| 1 | I8-98320 668-0 | CYLINDER ASM; BRK MASTER | 1 | 1602- | B | |||
| 6 | I8-98047 704-0 | CAP; OIL TANK | 1 | 1602- | AB | |||
| 1 | I8-98320 671-0 | CYLINDER ASM; BRK MASTER | 1 | 1602- | A | ELECTRONIC TRACTION CONTROL<NW9> | ||
| 1 | I8-98320 669-0 | CYLINDER ASM; BRK MASTER | 1 | 1602- | A | EXC. ELECTRONIC TRACTION CONTROL< |
