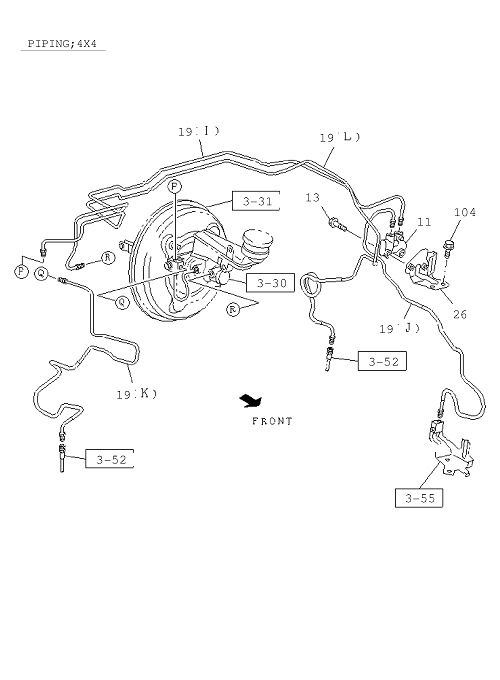

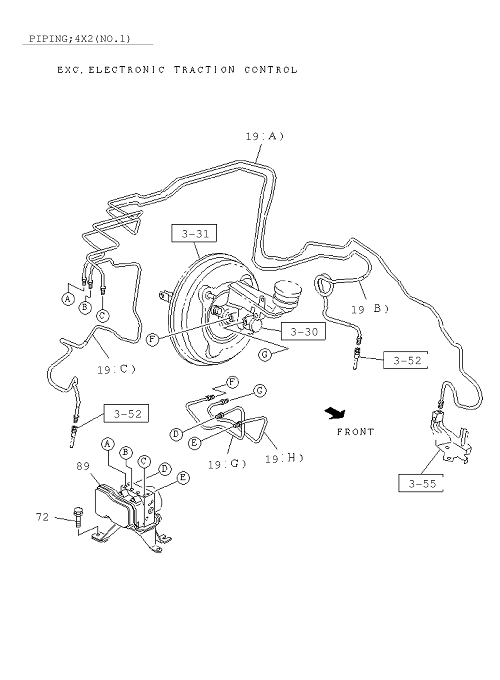

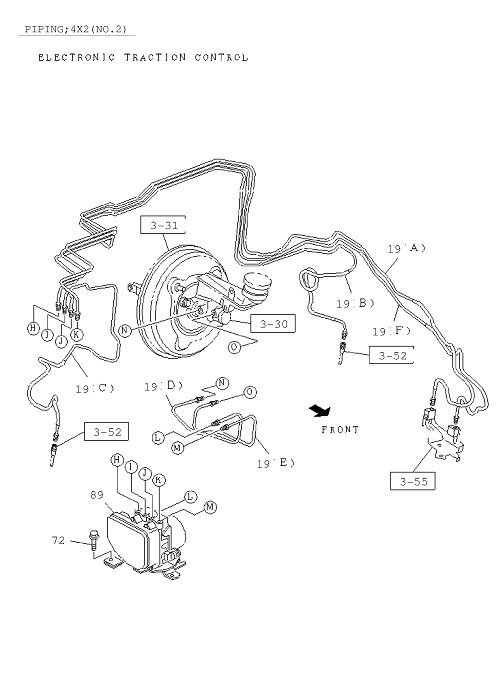

3-50 | BRAKE PIPING; OIL,MASTER CYLINDER
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

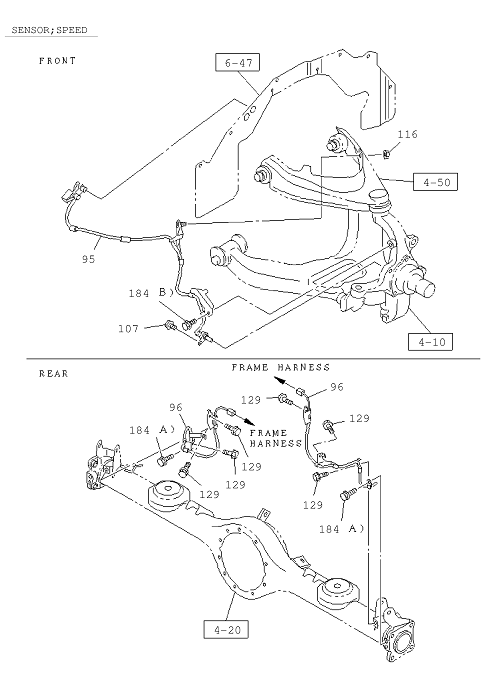

| 95 | I8-98292 432-0 | SENSOR; SPD,FRT WHEEL | 1 | 1602- | A | |||
| 19 | I8-98099 730-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1602- | A | (E) | ||
| 95 | I8-98292 433-0 | SENSOR; SPD,FRT WHEEL | 1 | 1602- | A | |||
| 89 | I8-98286 944-1 | HYDRAULIC UNIT; ANTI LOCK BRK | 1 | 1602- | A | ELECTRONIC TRACTION CONTR | ||
| 104 | I0-28650 616-0 | BOLT; BRKT TO BODY | 2 | 1602- | B | 02 . 343 M6X16 FLANGE | ||
| 19 | I8-98099 736-2 | PIPE; BRK,M/CYL TO UNION | 1 | 1602- | A | ELECTRONIC TRACTION CONTR (J) | ||
| 19 | I8-98159 938-1 | PIPE; BRK,M/CYL TO UNION | 1 | 1602- | A | (I) | ||
| 11 | I8-97235 339-2 | VALVE; BRK CONT | 1 | 1602- | B | |||
| 26 | I8-98101 970-1 | BRACKET; PROPORTIONING VLV | 1 | 1602- | B | |||
| 107 | I0-28050 612-0 | BOLT; WHEEL SPD SENSOR | 2 | 1602- | A | 03.162 M6X12 FLANGE | ||
| 19 | I8-98099 744-2 | PIPE; BRK,M/CYL TO UNION | 1 | 1602- | A | (H) | ||

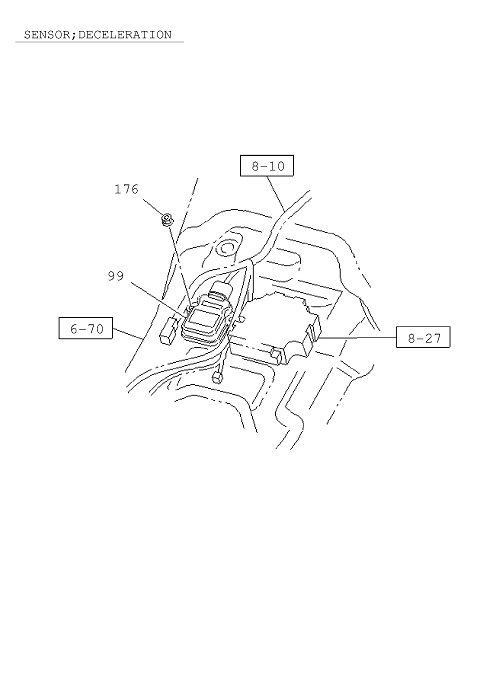

| 99 | I8-98052 116-1 | SENSOR; DECELERATION | 1 | 1602- | A | ELECTRONIC TRACTION CONTR | ||
| 72 | I0-28650 616-0 | BOLT; BRKT TO BODY | 3 | 1602- | A | 02 . 343 M6X16 FLANGE | ||
| 116 | I0-91180 108-0 | NUT | 2 | 1602- | A | 01. 062 M8 FLANGE | ||
| 89 | I8-98285 186-0 | HYDRAULIC UNIT; ANTI LOCK BRK | 1 | 1602- | A | EXC. ELECTRONIC TRACTION | ||
| 19 | I8-98099 738-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1602- | A | ELECTRONIC TRACTION CONTR (K) | ||
| 96 | I8-98196 303-0 | SENSOR; SPD,RR WHEEL | 1 | 1602- | A | |||
| 184 | I0-28050 612-0 | BOLT; CLIP | 2 | 1602- | A | 03.162 (B) M6X12 FLANGE | ||
| 96 | I8-98196 302-0 | SENSOR; SPD,RR WHEEL | 1 | 1602- | A | |||
| 19 | I8-98221 721-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1602- | B | (D) | ||
| 19 | I8-98099 718-4 | PIPE; BRK,M/CYL TO UNION | 1 | 1602- | B | (A) | ||
| 19 | I8-98099 732-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1602- | A | EXC. ELECTRONIC TRACTION (G) | ||
| 129 | I0-28650 616-0 | BOLT; BRKT | 6 | 1602- | A | 02 . 343 M6X16 FLANGE | ||
| 184 | I0-28650 616-0 | BOLT; CLIP | 2 | 1602- | A | 02 . 343 (A) M6X16 FLANGE | ||
| 13 | I0-29260 845-0 | BOLT; VLV TO BRKT | 2 | 1602- | B | M8X4 5 FLANGE | ||
| 19 | I8-98099 731-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1602- | A | EXC. ELECTRONIC TRACTION (F) | ||
| 176 | I0-91180 106-0 | NUT; SENSOR | 2 | 1602- | A | ELECTRONIC TRACTION CONTRO 01.062 M6 FLANGE | ||
| 19 | I8-98099 727-1 | PIPE; BRK,M/CYL TO UNION | 1 | 1602- | B | (C) | ||
| 19 | I8-98099 739-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1602- | A | ELECTRONIC TRACTION CONTR (L) | ||
| 19 | I8-98099 721-0 | PIPE; BRK,M/CYL TO UNION | 1 | 1602- | B | (B) |
