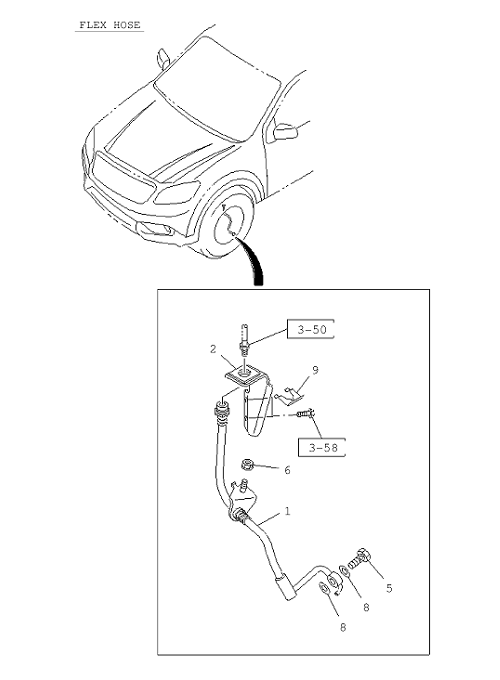

3-52 | BRAKE PIPING; OIL,FRONT
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98067 246-4 | HOSE; FLEX,FRT BRK | 1 | 1602- | AB | L=3 91 | ||
| 8 | I9-09571 410-0 | GASKET; FLEX HOSE,FRT BRK | 4 | 1602- | AB | 08.955 ID=10.2 OD=16.0 | ||
| 5 | I8-98014 005-0 | BOLT; EYE,FLEX HOSE,FRT BRK | 2 | 1602- | AB | M10X22 | ||
| 2 | I8-97947 149-1 | BRACKET; FLEX HOSE,FRT BRK | 1 | 1602- | AB | |||
| 9 | I8-97360 054-0 | CLIP; FLEX HOSE,FRT BRK | 2 | 1602- | AB | |||
| 6 | I0-91180 108-0 | NUT; FLEX HOSE,FRT BRK | 2 | 1602- | AB | 01.062 M8 FLANGE | ||

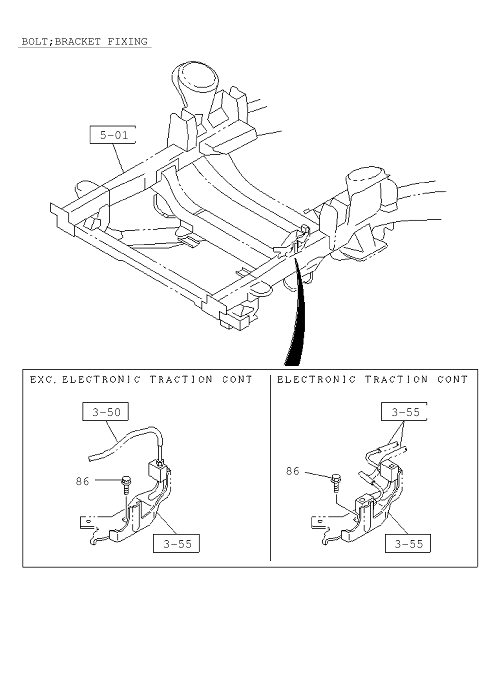

| 86 | I0-28650 820-0 | BOLT; BRK PIPE | 1 | 1602- | AB | 01.531 M8X2 0 FLANGE | ||
| 2 | I8-97947 148-1 | BRACKET; FLEX HOSE,FRT BRK | 1 | 1602- | AB | |||
| 1 | I8-98067 247-4 | HOSE; FLEX,FRT BRK | 1 | 1602- | AB | L=3 91 |
