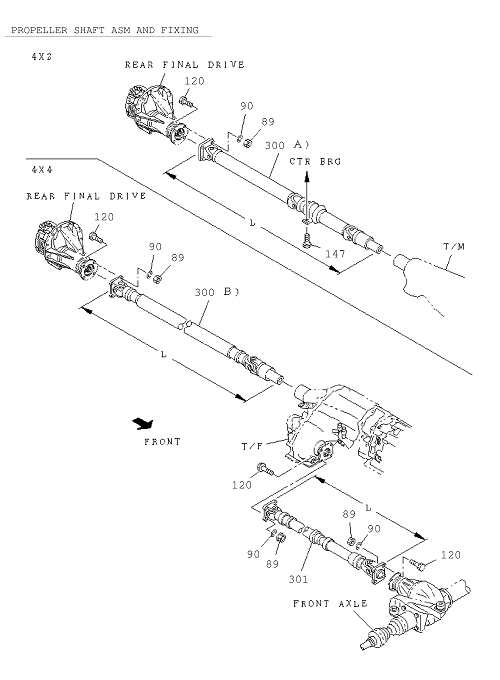

| 120 |
I8-97246 859-0 |
|
BOLT; YOKE TO RR AXLE |
4 |
1602- |
|
AB |
M10X29 |
| 125 |
I8-97947 663-0 |
|
YOKE ASM; SPLINED,PROP SHAFT |
1 |
1602- |
|
A |
(B) |
| 59 |
I8-97947 557-0 |
|
NUT; RET TO SUPPORT |
1 |
1602- |
|
A |
|
| 218 |
I8-97192 641-0 |
|
WASHER; PL,PROP SHAFT |
1 |
1602- |
|
A |
ID=30 H=40 L=3 5 |
| 8 |
I8-97948 772-0 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
1602- |
|
B |
(B) |
| 106 |
I0-90301 406-0 |
|
NIPPLE; GREASE,YOKE,PROP SHAFT |
1 |
1602- |
|
B |
05.601 M6 STRAIGHT |
| 103 |
I8-97943 053-0 |
|
BOOT; PROP SHAFT |
1 |
1602- |
|
B |
(B) |
| 125 |
I8-97947 629-0 |
|
YOKE ASM; SPLINED,PROP SHAFT |
1 |
1602- |
|
B |
(A) |
| 20 |
I8-97947 656-0 |
|
BEARING ASM; CTR,PROP SHAFT |
1 |
1602- |
|
A |
NTN |
| 120 |
I8-97246 859-0 |
|
BOLT; YOKE TO RR AXLE |
4 |
1602- |
|
AB |
M10X29 |
| 9 |
I8-97947 642-0 |
|
JOURNAL ASM; PROP SHAFT |
3 |
1602- |
|
A |
(A) |

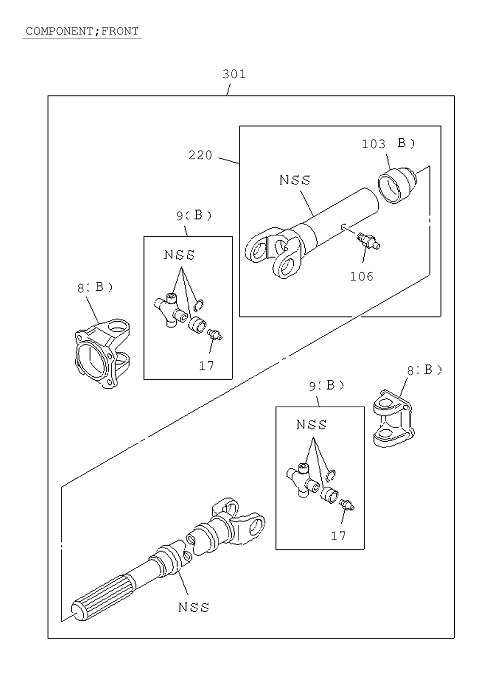

| 301 |
I8-97948 758-0 |
|
SHAFT ASM; PROP,FRT |
1 |
1602- |
|
B |
L=671 |
| 9 |
I8-97947 582-0 |
|
JOURNAL ASM; PROP SHAFT |
4 |
1602- |
|
B |
(B) |
| 220 |
I8-97945 105-0 |
|
YOKE; SPLINED |
1 |
1602- |
|
B |
|
| 90 |
I8-97246 901-0 |
|
WASHER; LK,YOKE TO RR AXLE |
4 |
1602- |
|
AB |
ID=10.1 |
| 106 |
I0-90301 406-0 |
|
NIPPLE; GREASE,YOKE,PROP SHAFT |
1 |
1602- |
|
B |
05.601 M6 STRAIGHT |

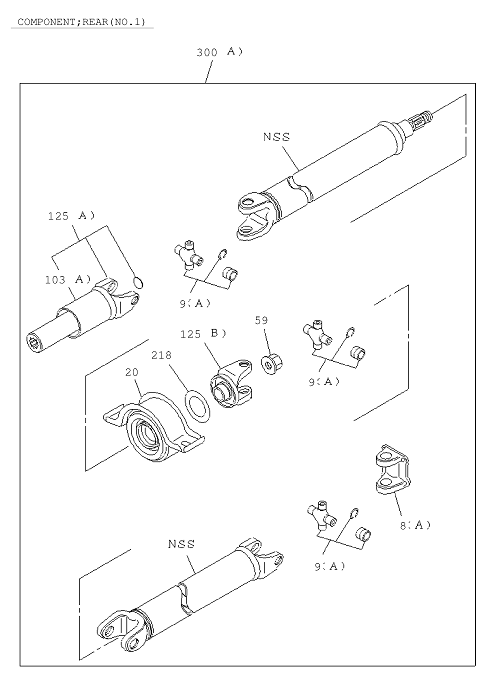

| 300 |
I8-97948 752-0 |
|
SHAFT ASM; PROP,RR |
1 |
1602- |
|
A |
(A) L=1480 . 5 |
| 9 |
I8-97947 582-0 |
|
JOURNAL ASM; PROP SHAFT |
4 |
1602- |
|
B |
(B) |
| 89 |
I8-97246 900-0 |
|
NUT; YOKE TO RR AXLE |
4 |
1602- |
|
AB |
M10 FLANGE |
| 125 |
I8-97947 663-0 |
|
YOKE ASM; SPLINED,PROP SHAFT |
1 |
1602- |
|
A |
(B) |
| 147 |
I0-28661 225-0 |
|
BOLT; CENTER BRG MTG |
2 |
1602- |
|
A |
17.447 M12X25 FLANGE |
| 89 |
I8-97246 900-0 |
|
NUT; YOKE TO RR AXLE |
8 |
1602- |
|
B |
M10 FLANGE |
| 147 |
I0-28661 225-0 |
|
BOLT; CENTER BRG MTG |
2 |
1602- |
|
A |
17.447 M12X25 FLANGE |
| 8 |
I8-97948 770-0 |
|
YOKE; FLANGE,PROP SHAFT |
1 |
1602- |
|
AB |
(A) |
| 300 |
I8-97948 766-0 |
|
SHAFT ASM; PROP,RR |
1 |
1602- |
|
B |
(B) L=1260 |
| 20 |
I8-97947 656-0 |
|
BEARING ASM; CTR,PROP SHAFT |
1 |
1602- |
|
A |
NTN |
| 90 |
I8-97246 901-0 |
|
WASHER; LK,YOKE TO RR AXLE |
8 |
1602- |
|
B |
ID=10.1 |
| 218 |
I8-97192 641-0 |
|
WASHER; PL,PROP SHAFT |
1 |
1602- |
|
A |
ID=30 H=40 L=3 5 |
| 103 |
I8-97940 114-0 |
|
BOOT; PROP SHAFT |
1 |
1602- |
|
B |
05.560 (A) |
| 125 |
I8-97947 629-0 |
|
YOKE ASM; SPLINED,PROP SHAFT |
1 |
1602- |
|
B |
(A) |
| 125 |
I8-97947 631-0 |
|
YOKE ASM; SPLINED,PROP SHAFT |
1 |
1602- |
|
A |
(A) |
| 120 |
I8-97246 859-0 |
|
BOLT; YOKE TO RR AXLE |
8 |
1602- |
|
B |
M10X29 |
| 103 |
I8-97940 114-0 |
|
BOOT; PROP SHAFT |
1 |
1602- |
|
B |
05.560 (A) |
| 9 |
I8-97947 642-0 |
|
JOURNAL ASM; PROP SHAFT |
3 |
1602- |
|
A |
(A) |
| 8 |
I8-97948 770-0 |
|
YOKE; FLANGE,PROP SHAFT |
1 |
1602- |
|
AB |
(A) |
| 103 |
I8-97947 639-0 |
|
BOOT; PROP SHAFT |
1 |
1602- |
|
A |
(A) |
| 90 |
I8-97246 901-0 |
|
WASHER; LK,YOKE TO RR AXLE |
4 |
1602- |
|
AB |
ID=10.1 |
| 89 |
I8-97246 900-0 |
|
NUT; YOKE TO RR AXLE |
8 |
1602- |
|
B |
M10 FLANGE |
| 301 |
I8-97948 758-0 |
|
SHAFT ASM; PROP,FRT |
1 |
1602- |
|
B |
L=671 |
| 300 |
I8-97948 752-0 |
|
SHAFT ASM; PROP,RR |
1 |
1602- |
|
A |
(A) L=1480 . 5 |
| 20 |
I8-97947 655-0 |
|
BEARING ASM; CTR,PROP SHAFT |
1 |
1602- |
|
A |
NSK |
| 89 |
I8-97246 900-0 |
|
NUT; YOKE TO RR AXLE |
4 |
1602- |
|
AB |
M10 FLANGE |
| 125 |
I8-97947 631-0 |
|
YOKE ASM; SPLINED,PROP SHAFT |
1 |
1602- |
|
A |
(A) |
| 103 |
I8-97947 639-0 |
|
BOOT; PROP SHAFT |
1 |
1602- |
|
A |
(A) |
| 59 |
I8-97947 557-0 |
|
NUT; RET TO SUPPORT |
1 |
1602- |
|
A |
|
| 120 |
I8-97246 859-0 |
|
BOLT; YOKE TO RR AXLE |
8 |
1602- |
|
B |
M10X29 |
| 220 |
I8-97945 105-0 |
|
YOKE; SPLINED |
1 |
1602- |
|
B |
|
| 20 |
I8-97947 655-0 |
|
BEARING ASM; CTR,PROP SHAFT |
1 |
1602- |
|
A |
NSK |
| 8 |
I8-97948 772-0 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
1602- |
|
B |
(B) |

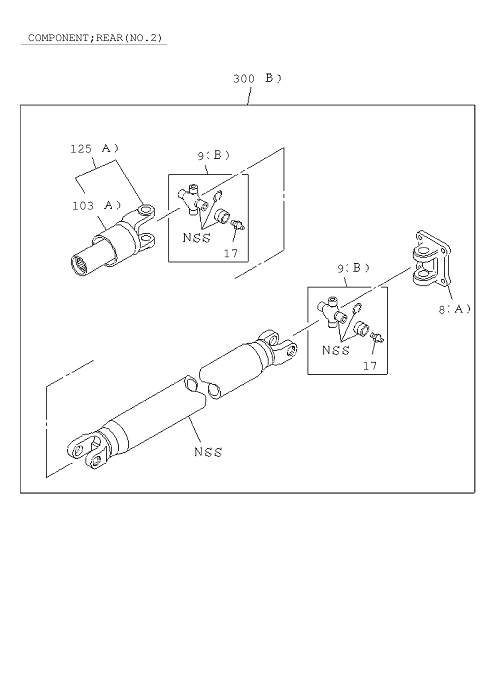

| 300 |
I8-97948 766-0 |
|
SHAFT ASM; PROP,RR |
1 |
1602- |
|
B |
(B) L=1260 |
| 17 |
I0-90301 406-0 |
|
NIPPLE; GREASE,PROP SHAFT |
4 |
1602- |
|
B |
M6 STRAIGHT |
| 90 |
I8-97246 901-0 |
|
WASHER; LK,YOKE TO RR AXLE |
8 |
1602- |
|
B |
ID=10.1 |
| 17 |
I0-90301 406-0 |
|
NIPPLE; GREASE,PROP SHAFT |
4 |
1602- |
|
B |
M6 STRAIGHT |
| 103 |
I8-97943 053-0 |
|
BOOT; PROP SHAFT |
1 |
1602- |
|
B |
(B) |
