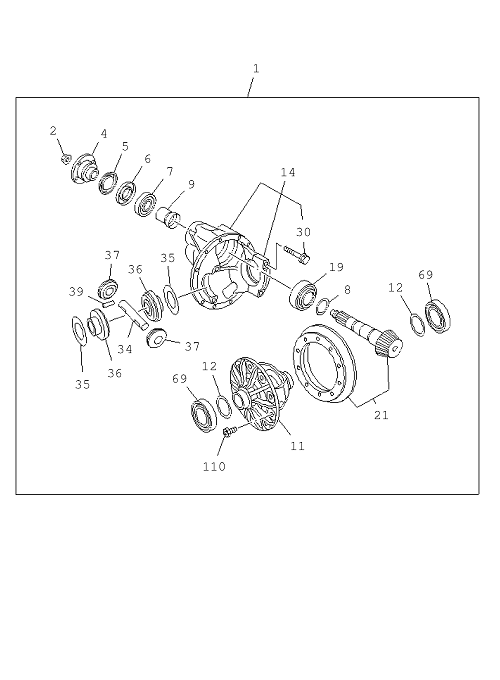

4-15 | FRONT FINAL DRIVE

Partial Engine

MUX

MU-X 2016

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
1 I8-98104 903-0 DRIVE ASM; FINAL,FRT 1 1602- B 41/10
8 I9-41519 165-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 42
5 I8-94318 409-1 COVER; DUST,PINION,FINAL DRIVE 1 1602- B
8 I9-41519 157-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 2 6
34 I9-41521 044-1 PIN; CROSS,DIFF PINION 1 1602- B .5673611111111
8 I9-41519 165-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 42
8 I9-41519 155-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 22
19 I9-00093 621-A BEARING; PINION,INNER 1 1602- B NSK
4 I8-94318 527-6 COUPLING; FINAL DRIVE PINION 1 1602- B
8 I9-41519 158-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 2 8
12 I8-97130 387-0 SHIM; FINAL PINION CAGE AR 1602- B T= 0.50
8 I9-41519 160-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 32
8 I9-41519 168-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 4 8
7 I8-94472 099-A BEARING; PINION,OUTER 1 1602- B (IADG) 05.484 NSK
8 I9-41519 171-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2.54
39 I9-09878 096-0 PIN; LK,CROSS PIN 1 1602- B OD=5 L=35
110 I8-97038 065-0 BOLT; DIFF BOX 10 1602- B 05.531 M10X17
8 I9-41519 167-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 4 6
35 I5-41562 005-1 WASHER; THRUST,SIDE GEAR 2 1602- B T= 1.00
8 I9-41519 163-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 3 8
7 I8-94472 099-A BEARING; PINION,OUTER 1 1602- B (IADG) 05.484 NSK
35 I5-41562 006-1 WASHER; THRUST,SIDE GEAR 2 1602- B T=1.05
19 I9-00093 621-A BEARING; PINION,INNER 1 1602- B (IADG) NSK
8 I9-41519 159-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 3 0
8 I9-41519 167-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 4 6
37 I8-97079 518-0 GEAR; PINION DIFF 2 1602- B Z=10
8 I9-41519 161-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 34
8 I9-41519 171-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2.54
6 I8-94318 520-2 SEAL; OIL,FINAL PINION 1 1602- B
21 I8-98104 945-1 GEAR SET; FINAL DRIVE,FRT 1 1602- B 41/10
8 I9-41519 170-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2.52
12 I9-41519 111-0 SHIM; FINAL PINION CAGE AR 1602- B T= 0.15
8 I9-41519 162-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 3 6
8 I9-41519 162-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 3 6
11 I8-97038 515-1 CAGE; FINAL PINION 1 1602- B
12 I9-41519 111-0 SHIM; FINAL PINION CAGE AR 1602- B T= 0.15
8 I9-41519 154-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 2 0
34 I9-41521 044-1 PIN; CROSS,DIFF PINION 1 1602- B .5673611111111
9 I8-94472 118-0 COLLAR; DIST,PINION 1 1602- B
8 I9-41519 160-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 32
30 I8-94376 322-0 BOLT; DIFF CAGE SETTING 4 1602- B 05.387 M12X62
12 I8-97130 387-0 SHIM; FINAL PINION CAGE AR 1602- B T= 0.50
8 I9-41519 155-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 22
37 I8-97079 518-0 GEAR; PINION DIFF 2 1602- B Z=10
4 I8-94318 527-6 COUPLING; FINAL DRIVE PINION 1 1602- B
8 I9-41519 163-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 3 8
14 I8-98104 910-2 CARRIER ASM; FINAL DRIVE,FRT AXL 1 1602- B
69 I9-00093 074-A BEARING; DIFF SIDE 2 1602- B 05.536 NSK
8 I9-41519 153-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2.18
35 I5-41562 005-1 WASHER; THRUST,SIDE GEAR 2 1602- B T= 1.00
7 I8-94472 099-A BEARING; PINION,OUTER 1 1602- B 05.484 NSK
8 I9-41519 166-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 44
8 I9-41519 159-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 3 0
19 I9-00093 621-A BEARING; PINION,INNER 1 1602- B (IADG) NSK
39 I9-09878 096-0 PIN; LK,CROSS PIN 1 1602- B OD=5 L=35
7 I8-94472 100-1 BEARING; PINION,OUTER 1 1602- B 05.484 JTEKT
35 I5-41562 006-1 WASHER; THRUST,SIDE GEAR 2 1602- B T=1.05
12 I8-97130 386-0 SHIM; FINAL PINION CAGE AR 1602- B T= 0.10
36 I8-97079 519-2 GEAR; SIDE,DIFF 2 1602- B Z=17
8 I9-41519 154-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 2 0
5 I8-94318 409-1 COVER; DUST,PINION,FINAL DRIVE 1 1602- B
7 I8-94472 100-1 BEARING; PINION,OUTER 1 1602- B 05.484 JTEKT
35 I5-41562 007-1 WASHER; THRUST,SIDE GEAR 2 1602- B T= 1.10
12 I8-97130 386-0 SHIM; FINAL PINION CAGE AR 1602- B T= 0.10
12 I9-41519 109-0 SHIM; FINAL PINION CAGE AR 1602- B T= 0.24
8 I9-41519 170-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2.52
7 I8-94472 099-A BEARING; PINION,OUTER 1 1602- B 05.484 NSK
6 I8-94318 520-2 SEAL; OIL,FINAL PINION 1 1602- B
1 I8-98104 903-0 DRIVE ASM; FINAL,FRT 1 1602- B 41/10
8 I9-41519 166-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 44
8 I9-41519 157-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 2 6
8 I9-41519 161-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 34
36 I8-97079 519-2 GEAR; SIDE,DIFF 2 1602- B Z=17
8 I9-41519 156-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 24
2 I8-94376 262-0 NUT; FINAL DRIVE PINION 1 1602- B M18 LOCK NUT
69 I9-00093 074-A BEARING; DIFF SIDE 2 1602- B 05.536 NSK
8 I9-41519 172-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2.56
8 I9-41519 156-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 24
69 I9-00093 074-A BEARING; DIFF SIDE 2 1602- B (IADG) 05.536 NSK
8 I9-41519 164-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 4 0
8 I9-41519 169-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2.50
8 I9-41519 164-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 4 0
35 I5-41562 007-1 WASHER; THRUST,SIDE GEAR 2 1602- B T= 1.10
11 I8-97038 515-1 CAGE; FINAL PINION 1 1602- B
9 I8-94472 118-0 COLLAR; DIST,PINION 1 1602- B
8 I9-41519 169-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2.50
19 I9-00093 621-A BEARING; PINION,INNER 1 1602- B NSK
8 I9-41519 153-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2.18
12 I9-41519 109-0 SHIM; FINAL PINION CAGE AR 1602- B T= 0.24
69 I9-00093 074-A BEARING; DIFF SIDE 2 1602- B (IADG) 05.536 NSK
8 I9-41519 158-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 2 8
8 I9-41519 168-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2 . 4 8
2 I8-94376 262-0 NUT; FINAL DRIVE PINION 1 1602- B M18 LOCK NUT
8 I9-41519 172-1 SHIM; PINION,FINAL DRIVE AR 1602- B T=2.56
14 I8-98104 910-2 CARRIER ASM; FINAL DRIVE,FRT AXL 1 1602- B
21 I8-98104 945-1 GEAR SET; FINAL DRIVE,FRT 1 1602- B 41/10
110 I8-97038 065-0 BOLT; DIFF BOX 10 1602- B 05.531 M10X17
30 I8-94376 322-0 BOLT; DIFF CAGE SETTING 4 1602- B 05.387 M12X62
