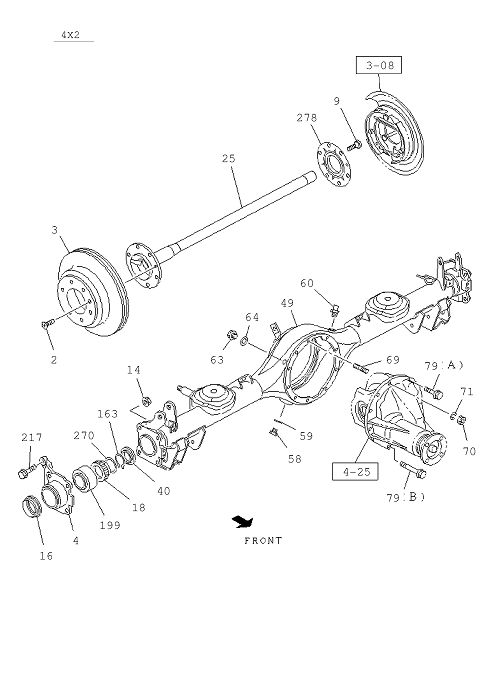

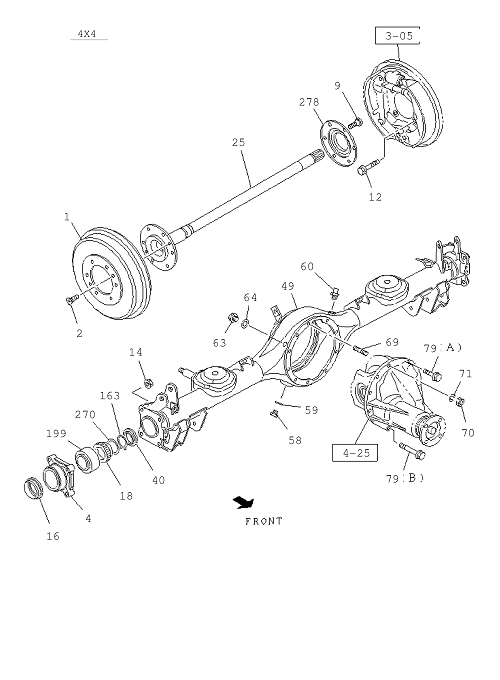

4-20 | REAR AXLE CASE AND SHAFT
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 217 | I8-98033 645-0 | BOLT; RR BRK | 4 | 1602- | A | 06.056 M12X2 5 FLANGE | ||
| 18 | I6-97239 868-0 | RETAINER; RR AXLE | 2 | 1602- | B | (IADG) | ||
| 63 | I8-97307 059-1 | PLUG; OIL FILLER,AXLE CASE | 1 | 1602- | AB | M20X17 | ||
| 270 | I9-41519 109-0 | SHIM; RETAINER | AR | 1602- | AB | 05.537 T=0 . 24 | ||
| 25 | I8-98080 678-2 | SHAFT; AXLE,RR | 2 | 1602- | AB | |||
| 4 | I8-98191 376-0 | HOLDER; BRG,AXLE SHAFT | 2 | 1602- | A | |||
| 163 | I9-09952 253-0 | RING; SNAP,AXLE SHAFT | AR | 1602- | AB | ID=38.5 T=2.00 | ||
| 1 | I8-97948 038-1 | DRUM; BRK,RR | 2 | 1602- | B | AISIN TAKAOKA | ||
| 163 | I9-09180 042-0 | RING; SNAP,AXLE SHAFT | AR | 1602- | AB | ID=38.5 T=1.75 | ||
| 278 | I8-98103 447-2 | CATCHER; OIL | 2 | 1602- | AB | |||
| 14 | I0-91180 212-0 | NUT; BRG HOLDER TO CASE | 8 | 1602- | AB | M12 FLANGE | ||
| 4 | I8-98191 376-0 | HOLDER; BRG,AXLE SHAFT | 2 | 1602- | A | |||
| 64 | I8-94462 734-0 | GASKET; OIL FILLER,AXLE CASE | 1 | 1602- | AB | ID=20 OD=3 0 | ||
| 18 | I6-97239 868-0 | RETAINER; RR AXLE | 2 | 1602- | B | (IADG) | ||
| 14 | I0-91180 212-0 | NUT; BRG HOLDER TO CASE | 8 | 1602- | AB | M12 FLANGE | ||
| 63 | I8-97307 059-1 | PLUG; OIL FILLER,AXLE CASE | 1 | 1602- | AB | M20X17 | ||
| 59 | I9-09571 416-0 | GASKET; DRAIN PLUG | 1 | 1602- | AB | 01.252 ID=16.2 OD=2 4 | ||
| 18 | I8-98009 341-0 | RETAINER; RR AXLE | 2 | 1602- | A | |||
| 60 | I8-98006 960-0 | BREATHER; RR AXLE CASE | 1 | 1602- | AB | L=2 9 | ||
| 163 | I9-09952 253-0 | RING; SNAP,AXLE SHAFT | AR | 1602- | AB | ID=38.5 T=2.00 | ||
| 16 | I6-98134 394-0 | SEAL; OIL,RR HUB,OUTER | 2 | 1602- | AB | (IADG) | ||
| 199 | I8-97216 797-A | BEARING; RR AXLE | 2 | 1602- | AB | |||
| 40 | I8-97323 297-0 | SEAL; OIL,REAR AXLE | 2 | 1602- | AB | |||
| 58 | I8-97307 060-0 | PLUG; DRAIN,AXLE CASE | 1 | 1602- | AB | M16X12.5 | ||
| 199 | I8-97216 797-A | BEARING; RR AXLE | 2 | 1602- | AB | (IADG) | ||
| 199 | I8-97216 797-A | BEARING; RR AXLE | 2 | 1602- | AB | |||
| 16 | I8-98134 394-0 | SEAL; OIL,RR HUB,OUTER | 2 | 1602- | AB | |||
| 18 | I8-97239 868-0 | RETAINER; RR AXLE | 2 | 1602- | B | |||
| 9 | I8-97944 831-1 | PIN; WHEEL,RR AXLE | 12 | 1602- | AB | M12X42.5 RH THREAD | ||
| 79 | I0-28061 090-0 | BOLT; COVER TO CASE | 1 | 1602- | AB | (B) M10X90 | ||
| 4 | I8-98103 450-3 | HOLDER; BRG,AXLE SHAFT | 2 | 1602- | B | |||
| 16 | I6-98134 394-0 | SEAL; OIL,RR HUB,OUTER | 2 | 1602- | AB | (IADG) | ||
| 217 | I8-98033 645-0 | BOLT; RR BRK | 4 | 1602- | A | 06.056 M12X2 5 FLANGE | ||
| 49 | I8-98191 429-4 | CASE; RR AXLE | 1 | 1602- | B | |||
| 278 | I8-98103 447-2 | CATCHER; OIL | 2 | 1602- | AB | |||
| 18 | I8-98009 341-0 | RETAINER; RR AXLE | 2 | 1602- | A | |||
| 16 | I8-98134 394-0 | SEAL; OIL,RR HUB,OUTER | 2 | 1602- | AB | |||
| 9 | I8-97944 831-1 | PIN; WHEEL,RR AXLE | 12 | 1602- | AB | M12X42.5 RH THREAD | ||
| 12 | I8-98107 914-2 | BOLT; BRG HOLDER TO CASE | 8 | 1602- | B | M12X59 FLANGE | ||
| 4 | I8-98103 450-3 | HOLDER; BRG,AXLE SHAFT | 2 | 1602- | B | |||
| 1 | I8-97948 038-1 | DRUM; BRK,RR | 2 | 1602- | B | AISIN TAKAOKA | ||
| 69 | I8-98022 413-0 | STUD; AXLE CASE | 2 | 1602- | AB | M10X31 L=4 3 | ||
| 69 | I8-98022 413-0 | STUD; AXLE CASE | 2 | 1602- | AB | M10X31 L=4 3 | ||
| 199 | I8-97216 797-A | BEARING; RR AXLE | 2 | 1602- | AB | (IADG) | ||
| 70 | I7-05110 010-A | NUT; CARRIER | 2 | 1602- | AB | 04.085 M10 FLANGE | ||
| 49 | I8-98191 432-4 | CASE; RR AXLE | 1 | 1602- | A | ELECTRONIC TRACTION CONTROL<N EXC. LIMITED SLIP DIFF<G80> | ||
| 2 | I0-36410 616-0 | BOLT; BRK DRUM | 2 | 1602- | AB | M6X16 CK-HEAD | ||
| 18 | I8-97239 868-0 | RETAINER; RR AXLE | 2 | 1602- | B | |||
| 12 | I8-98107 914-2 | BOLT; BRG HOLDER TO CASE | 8 | 1602- | B | M12X59 FLANGE | ||
| 3 | I8-98115 794-1 | ROTOR; DISC BRK,RR | 2 | 1602- | A | |||
| 49 | I8-98191 431-4 | CASE; RR AXLE | 1 | 1602- | A | EXC. ELECTRONIC TRACTION CONT | ||
| 1 | I8-98061 813-1 | DRUM; BRK,RR | 2 | 1602- | B | SOMBOON | ||
| 49 | I8-98191 432-4 | CASE; RR AXLE | 1 | 1602- | A | ELECTRONIC TRACTION CONTROL<N EXC. LIMITED SLIP DIFF<G80> | ||
| 79 | I0-28061 030-0 | BOLT; COVER TO CASE | 7 | 1602- | AB | 04.085 (A) M10X30 FLANGE | ||
| 79 | I0-28061 090-0 | BOLT; COVER TO CASE | 1 | 1602- | AB | (B) M10X90 | ||
| 70 | I7-05110 010-A | NUT; CARRIER | 2 | 1602- | AB | 04.085 M10 FLANGE | ||
| 163 | I9-09180 042-0 | RING; SNAP,AXLE SHAFT | AR | 1602- | AB | ID=38.5 T=1.75 | ||
| 270 | I9-41519 109-0 | SHIM; RETAINER | AR | 1602- | AB | 05.537 T=0 . 24 | ||
| 79 | I0-28061 030-0 | BOLT; COVER TO CASE | 7 | 1602- | AB | 04.085 (A) M10X30 FLANGE | ||
| 49 | I8-98191 429-4 | CASE; RR AXLE | 1 | 1602- | B | |||
| 49 | I8-98191 431-4 | CASE; RR AXLE | 1 | 1602- | A | EXC. ELECTRONIC TRACTION CONT | ||
| 40 | I8-97323 297-0 | SEAL; OIL,REAR AXLE | 2 | 1602- | AB | |||
| 58 | I8-97307 060-0 | PLUG; DRAIN,AXLE CASE | 1 | 1602- | AB | M16X12.5 | ||
| 59 | I9-09571 416-0 | GASKET; DRAIN PLUG | 1 | 1602- | AB | 01.252 ID=16.2 OD=2 4 | ||
| 1 | I8-98061 813-1 | DRUM; BRK,RR | 2 | 1602- | B | SOMBOON | ||
| 3 | I8-98115 794-1 | ROTOR; DISC BRK,RR | 2 | 1602- | A | |||
| 60 | I8-98006 960-0 | BREATHER; RR AXLE CASE | 1 | 1602- | AB | L=2 9 | ||
| 2 | I0-36410 616-0 | BOLT; BRK DRUM | 2 | 1602- | AB | M6X16 CK-HEAD | ||
| 25 | I8-98080 678-2 | SHAFT; AXLE,RR | 2 | 1602- | AB | |||
| 64 | I8-94462 734-0 | GASKET; OIL FILLER,AXLE CASE | 1 | 1602- | AB | ID=20 OD=3 0 |
