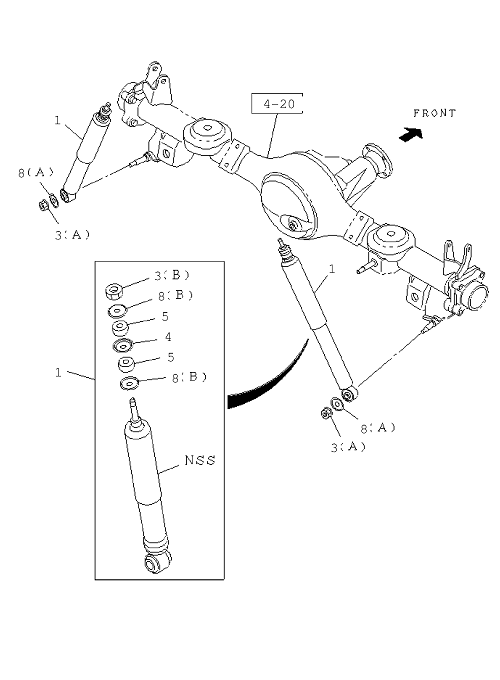

4-61 | SHOCK ABSORBER; REAR SUSPENSION
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 8 | I8-97947 836-0 | WASHER; S/ABS | 4 | 1602- | AB | (B) | ||
| 3 | I8-98217 474-0 | NUT; S/ABS | 2 | 1602- | AB | 07.242 (A) M14 | ||
| 3 | I8-98217 474-0 | NUT; S/ABS | 2 | 1602- | AB | 07.242 (A) M14 | ||
| 4 | I8-97947 837-0 | WASHER; CENTER,S/ABS | 2 | 1602- | AB | |||
| 3 | I8-97947 961-0 | NUT; S/ABS | 2 | 1602- | AB | (B) M10 | ||
| 1 | I6-97947 791-0 | ABSORBER ASM; SHOCK,RR | 2 | 1602- | AB | (IADG) | ||
| 1 | I8-97947 791-2 | ABSORBER ASM; SHOCK,RR | 2 | 1602- | AB | |||
| 1 | I6-97947 791-0 | ABSORBER ASM; SHOCK,RR | 2 | 1602- | AB | (IADG) | ||
| 4 | I8-97947 837-0 | WASHER; CENTER,S/ABS | 2 | 1602- | AB | |||
| 5 | I8-97947 835-0 | BUSHING; RUBBER,S/ABS,UPR | 4 | 1602- | AB | |||
| 8 | I8-97947 826-0 | WASHER; S/ABS | 2 | 1602- | AB | 07.242 (A) | ||
| 3 | I8-97947 961-0 | NUT; S/ABS | 2 | 1602- | AB | (B) M10 | ||
| 8 | I8-97947 826-0 | WASHER; S/ABS | 2 | 1602- | AB | 07.242 (A) | ||
| 5 | I8-97947 835-0 | BUSHING; RUBBER,S/ABS,UPR | 4 | 1602- | AB | |||
| 8 | I8-97947 836-0 | WASHER; S/ABS | 4 | 1602- | AB | (B) | ||
| 1 | I8-97947 791-2 | ABSORBER ASM; SHOCK,RR | 2 | 1602- | AB |
