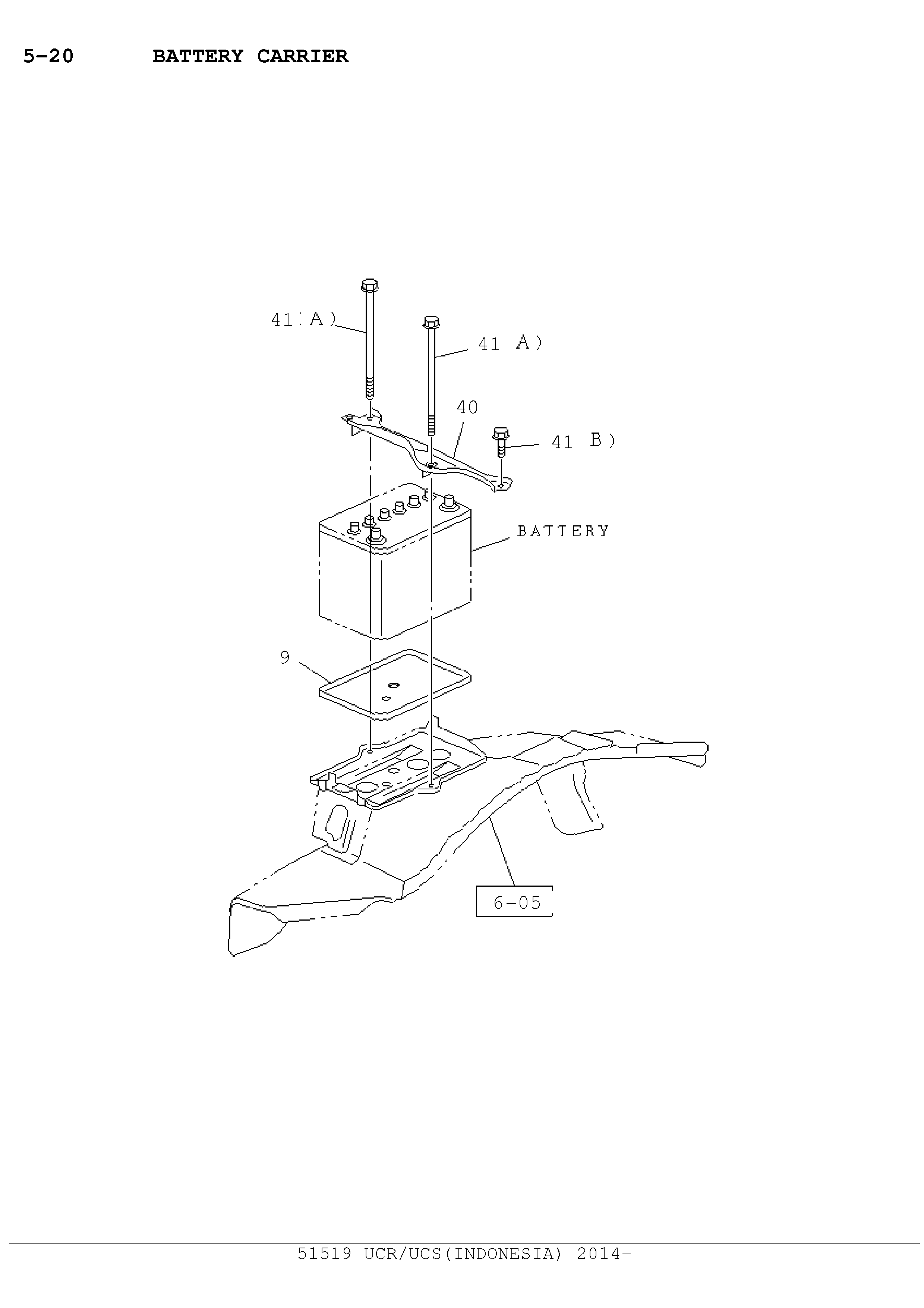

5-20 | BATTERY CARRIER
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 40 | I8-98141 872-0 | CLAMP; BATTERY | 1 | 1602- | AB | BATTERY 8 0D2 6L(TM1),BATTERY 95D31L(TQ8 | ||
| 41 | I8-97378 041-0 | BOLT; CLAMP,BATTERY | 2 | 1602- | AB | (A) M8X22 2 FLANGE | ||
| 9 | I8-97318 865-1 | SEAT; BATTERY | 1 | 1602- | AB | BATTERY 9 5D31L(TQ8) | ||
| 9 | I8-97328 060-0 | SEAT; BATTERY | 1 | 1602- | AB | BATTERY 8 0D2 6L(TM1) | ||
| 41 | I0-28650 820-0 | BOLT; CLAMP,BATTERY | 1 | 1602- | AB | 01.531 (B) M8X2 0 FLANGE |
