6-05 | FRONT PANEL
MUX
MU-X 2016

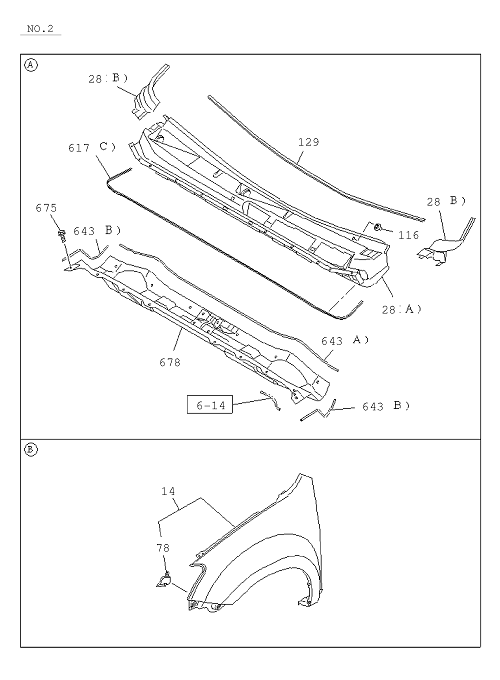

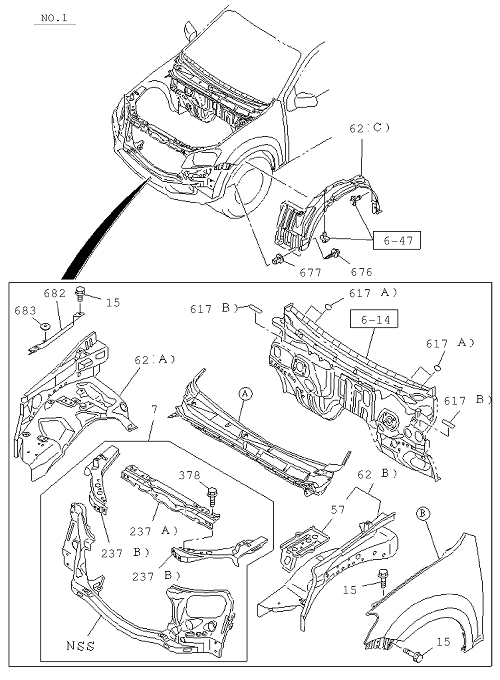

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 617 | I1-76798 029-0 | SEAL; DASH | 4 | 1602- | AB | 16.165 (A) OD=2 5 BLACK | ||
| 62 | I8-98077 254-7 | PANEL; WHEEL HOUSE | 1 | 1602- | AB | (C) | ||
| 617 | I8-98192 905-0 | SEAL; DASH | 2 | 1602- | AB | (B) 110X10 | ||
| 237 | I8-98104 244-4 | SUPPORT; DEFLECTOR | 1 | 1602- | AB | (B) | ||
| 237 | I8-98104 224-4 | SUPPORT; DEFLECTOR | 1 | 1602- | AB | (A) | ||
| 28 | I8-98133 983-0 | COVER; DASH COWL | 1 | 1602- | AB | (A) | ||
| 62 | I8-98222 295-4 | PANEL; WHEEL HOUSE | 1 | 1602- | AB | (A) | ||
| 28 | I8-98133 981-6 | COVER; DASH COWL | 1 | 1602- | AB | (B) | ||
| 7 | I8-98103 202-0 | PANEL; DEFLECTOR | 1 | 1602- | AB | |||
| 14 | I8-98103 209-0 | FENDER; FRT | 1 | 1602- | AB | |||
| 28 | I8-98133 982-5 | COVER; DASH COWL | 1 | 1602- | AB | (B) | ||
| 237 | I8-98104 253-4 | SUPPORT; DEFLECTOR | 1 | 1602- | AB | (B) | ||
| 62 | I8-98077 256-6 | PANEL; WHEEL HOUSE | 1 | 1602- | AB | (C) | ||
| 677 | I8-94222 314-0 | NUT; WHEEL HOUSE | 2 | 1602- | AB | 09.190 D=9.7X9.7 L= 8 | ||
| 643 | I8-98110 284-1 | SEAL; COWL | 2 | 1602- | AB | (B) | ||
| 643 | I8-98110 283-1 | SEAL; COWL | 1 | 1602- | AB | (A) | ||
| 617 | I8-98134 005-0 | SEAL; DASH | 1 | 1602- | AB | (C) T=5 . 0 | ||
| 676 | I8-98167 444-0 | BOLT; WHEEL HOUSE | 2 | 1602- | AB | 07.874 M6X20 TAPPING W/PL WASHER | ||
| 78 | I8-98104 034-1 | BRACKET; FENDER | 1 | 1602- | AB | |||
| 129 | I8-98133 991-0 | FINISHER; COWL COVER | 1 | 1602- | AB | |||
| 682 | I8-98139 849-3 | PROTECTOR; HEAT,ENG | 1 | 1602- | AB | |||
| 57 | I8-98104 480-5 | TRAY; BATTERY | 1 | 1602- | AB | |||
| 62 | I8-98226 409-3 | PANEL; WHEEL HOUSE | 1 | 1602- | AB | (B) | ||
| 78 | I8-98104 033-1 | BRACKET; FENDER | 1 | 1602- | AB | |||
| 678 | I8-98065 803-3 | PANEL; COWL | 1 | 1602- | AB | |||
| 378 | I0-28060 612-0 | BOLT; SUPPORT | 8 | 1602- | AB | 03 . 342 M6X12 FLANGE | ||
| 675 | I8-98180 459-2 | BOLT; PANEL | 8 | 1602- | AB | M6X12 W/PL WASHER | ||
| 683 | I8-98057 864-0 | RIVET; PROTE CTOR,HEAT | 2 | 1602- | AB | 17490 | ||
| 14 | I8-98103 207-0 | FENDER; FRT | 1 | 1602- | AB | |||
| 15 | I8-98167 615-0 | BOLT; FENDER | 12 | 1602- | AB | M6X15 W/LK&PL WASHER | ||
| 116 | I8-98134 004-1 | CLIP; COWL COVER | 6 | 1602- | AB |
