6-10 | ENGINE HOOD AND LOCK
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 44 | I8-97370 668-0 | BOLT; STAY,HOOD | 4 | 1602- | AB | M6X20 W/PL WASHER | ||
| 24 | I8-97182 405-0 | CLIP; CONT CABLE | 3 | 1602- | AB | |||
| 3 | I8-97948 266-0 | BUFFER; ENG HOOD,FRT | 2 | 1602- | AB | (A) | ||
| 18 | I8-98056 122-0 | BOLT; HINGE | 8 | 1602- | AB | M8X16 | ||
| 30 | I8-97301 356-0 | CLIP; SUPPORT ROD,HOOD | 1 | 1602- | AB | |||
| 157 | I8-98049 850-0 | NUT; MOLDING | 6 | 1602- | AB | 08.155 M6 CAP NUT | ||
| 50 | I8-98101 948-1 | ROD; SUPPORT,ENG HOOD | 1 | 1602- | AB | |||
| 43 | I8-98165 341-0 | STAY; ENG HOOD,FRT END | 1 | 1602- | AB | |||
| 46 | I8-98065 805-1 | SEAL; ENG HOOD | 1 | 1602- | AB | (A) | ||
| 48 | I8-98204 979-0 | LEVER; ENG HOOD | 1 | 1602- | AB | |||
| 156 | I8-98181 163-3 | MOLDING; HOOD | 1 | 1602- | A | EXC. BODY COLOR KEYED RAD GR GHT RAD GRILLE<V22> BLACK | ||
| 31 | I8-98074 561-4 | LOCK; ENG HOOD | 1 | 1602- | A | EXC. REMOTE CONT DOOR LOCK KY> | ||
| 17 | I8-98104 099-2 | HINGE; ENG HOOD | 1 | 1602- | AB | |||
| 3 | I8-98195 454-0 | BUFFER; ENG HOOD,FRT | 2 | 1602- | AB | (B) | ||
| 31 | I8-98074 561-4 | LOCK; ENG HOOD | 1 | 1602- | B | |||
| 130 | I0-28650 625-0 | BOLT; SUPPORT ROD,HOOD | 1 | 1602- | AB | 00.685 M6X2 5 FLANGE | ||
| 47 | I8-94279 921-0 | CLIP; HOOD SEAL | 6 | 1602- | AB | 16.069 OD=12 L=14 . 8 | ||
| 46 | I8-98165 802-1 | SEAL; ENG HOOD | 1 | 1602- | AB | (B) | ||
| 46 | I8-98160 815-1 | SEAL; ENG HOOD | 1 | 1602- | AB | (B) | ||
| 128 | I8-98102 230-0 | SEAL; PLATFORM | 1 | 1602- | AB | |||
| 2 | I8-98193 817-0 | PANEL; ENG HOOD | 1 | 1602- | AB | |||
| 156 | I8-98269 566-0 | MOLDING; HOOD | 1 | 1602- | A | BODY COLOR KEYED RAD GRILLE AD GRILLE<V2 2> PLATED | ||
| 156 | I8-98181 163-3 | MOLDING; HOOD | 1 | 1602- | B | BLACK | ||
| 31 | I8-98074 562-4 | LOCK; ENG HOOD | 1 | 1602- | A | REMOTE CONT DOOR LOCK W/ANT | ||
| 49 | I8-98167 449-0 | SCREW; LEVER,ENG HOOD OPENER | 2 | 1602- | AB | M5X16 TAPPING | ||

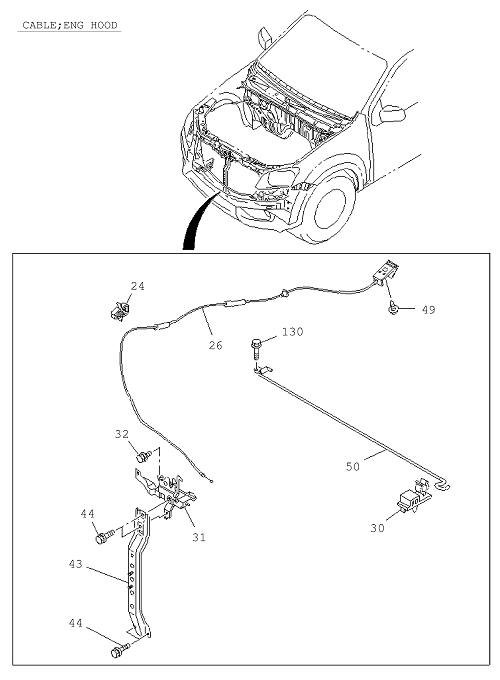

| 26 | I8-98071 759-1 | CABLE; ENG HOOD CONT | 1 | 1602- | AB | |||
| 17 | I8-98104 100-2 | HINGE; ENG HOOD | 1 | 1602- | AB | |||
| 32 | I8-97370 668-0 | BOLT; HOOD LK | 2 | 1602- | AB | M6X20 W/PL WASHER |
