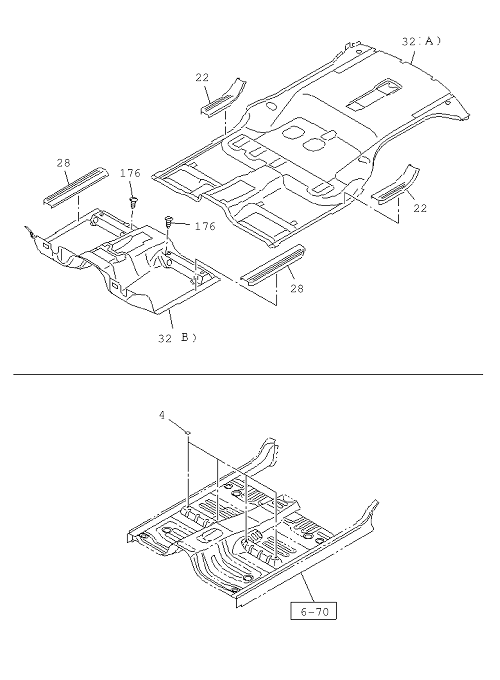

6-75 | MAD AND CARPET
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 176 | I8-97416 667-0 | RETAINER; CARPET | 2 | 1602- | AB | BLACK | ||
| 28 | I8-97416 946-3 | PLATE; SILL,FRT | 1 | 1602- | AB | BLACK | ||
| 22 | I8-97424 367-5 | PLATE; SILL,RR | 1 | 1602- | AB | BLACK | ||
| 4 | I8-98185 968-0 | INSULATOR; FRT | 4 | 1602- | B | |||
| 4 | I8-98185 968-0 | INSULATOR; FRT | 4 | 1602- | A | FRONT SEAT BUCKET POWER ASSIST<AQ9>,FR SEAT BUCKET MANUAL HEIGHT CONT<AR9 > | ||
| 32 | I8-97424 363-5 | CARPET; FLOOR | 1 | 1602- | AB | (A) BLACK | ||
| 32 | I8-97429 971-0 | CARPET; FLOOR | 1 | 1602- | AB | (B) BLACK | ||
| 22 | I8-97424 366-5 | PLATE; SILL,RR | 1 | 1602- | AB | BLACK | ||
| 28 | I8-97416 944-3 | PLATE; SILL,FRT | 1 | 1602- | AB | BLACK |
