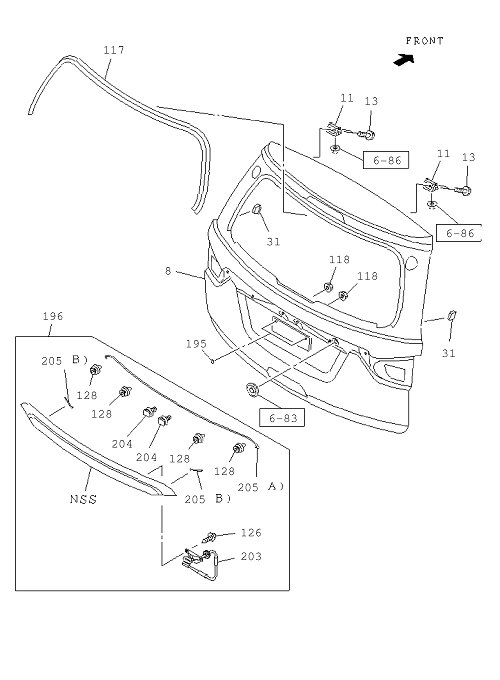

6-81 | BACK DOOR AND HINGE
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 196 | I8-98188 915-2 | MOLDING; TAIL GATE | 1 | 1602- | B | |||
| 205 | I8-98296 180-0 | SPONGE; GARNISH | 2 | 1602- | A | (B) | ||
| 205 | I8-98250 590-0 | SPONGE; GARNISH | 1 | 1602- | B | (A) | ||
| 195 | I1-76798 029-0 | SEAL; LOCATION HOLE | 2 | 1602- | AB | 16.165 OD=20 T=0.05 BLACK | ||
| 196 | I8-98295 830-0 | MOLDING; TAIL GATE | 1 | 1602- | A | EXC. PASSIVE ENTRY AND START S | ||
| 31 | I8-98239 418-0 | BUFFER; BACK DOOR | 1 | 1602- | AB | |||
| 11 | I8-98189 934-0 | HINGE; TAIL GATE | 1 | 1602- | AB | .8888888888889 | ||
| 205 | I8-98250 591-0 | SPONGE; GARNISH | 2 | 1602- | B | (B) | ||
| 117 | I8-98200 429-2 | GARNISH | 1 | 1602- | AB | |||
| 203 | I8-98190 563-2 | SWITCH; TAIL GATE | 1 | 1602- | A | PASSIVE ENTRY AND START SYSTEM | ||
| 13 | I0-28650 820-0 | BOLT; HINGE TO TAIL GATE | 4 | 1602- | AB | 01.531 M8X2 0 FLANGE | ||
| 11 | I8-98189 935-0 | HINGE; TAIL GATE | 1 | 1602- | AB | .8888888888889 | ||
| 204 | I8-98250 593-0 | STUD; GARNISH | 2 | 1602- | AB | |||
| 8 | I8-98211 090-2 | PANEL; TAIL GATE | 1 | 1602- | B | |||
| 205 | I8-98296 179-0 | SPONGE; GARNISH | 1 | 1602- | A | (A) | ||
| 8 | I8-98208 954-2 | PANEL; TAIL GATE | 1 | 1602- | A | |||
| 196 | I8-98295 831-0 | MOLDING; TAIL GATE | 1 | 1602- | A | PASSIVE ENTRY AND START SYSTEM | ||
| 128 | I8-97359 942-0 | CLIP; GARNISH | 4 | 1602- | AB | 7829 | ||
| 118 | I8-97065 431-0 | NUT; GARNISH | 2 | 1602- | AB | 08 .212 M6 FLANGE | ||
| 126 | I8-98193 872-0 | SCREW; GARNISH | 2 | 1602- | A | PASSIVE ENTRY AND START SYSTEM 01.269 M5X16 TAPPING W/PL WASHER | ||
| 31 | I8-98239 419-0 | BUFFER; BACK DOOR | 1 | 1602- | AB |
