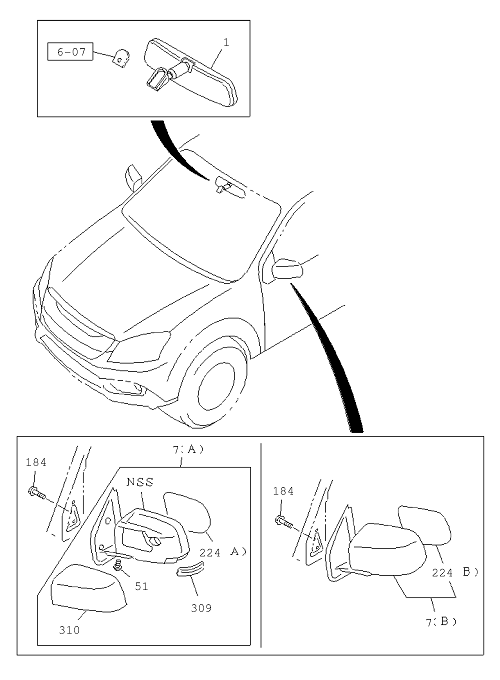

7-20 | MIRROR AND MIRROR STAY
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 319 | I8-98193 685-0 | SCREW; SIDE TURN LAMP | 2 | 1602- | A | DOOR MIRROR POWER FOLDI NAL<DE3> | ||
| 224 | I8-98193 682-0 | MIRROR; DOOR | 1 | 1602- | A | DOOR MIRROR POWER ADJUST L<DF9 > (A) | ||
| 7 | I8-98065 318-3 | MIRROR ASM; DOOR | 1 | 1602- | B | (B) | ||
| 1 | I8-98053 645-0 | MIRROR; ROOM | 1 | 1602- | B | |||
| 7 | I8-98065 317-3 | MIRROR ASM; DOOR | 1 | 1602- | B | (B) | ||
| 51 | I8-98193 685-0 | SCREW; MIRROR | 2 | 1602- | A | DOOR MIRROR POWER FOLDI NAL<DE3> | ||
| 310 | I8-98193 686-0 | COVER; DOOR MIRROR | 1 | 1602- | A | DOOR MIRROR POWER FOLDI NAL<DE3> | ||
| 224 | I8-98193 681-0 | MIRROR; DOOR | 1 | 1602- | A | DOOR MIRROR POWER FOLDI NAL<DE3> (A) | ||
| 1 | I8-98299 107-0 | MIRROR; ROOM | 1 | 1602- | A | |||
| 309 | I8-98193 684-0 | LAMP ASM; SIDE TURN,DOOR MIRROR | 1 | 1602- | A | DOOR MIRROR POWER FOLDI NAL<DE3> | ||
| 7 | I8-98065 333-4 | MIRROR ASM; DOOR | 1 | 1602- | A | DOOR MIRROR POWER FOLDI NAL<DE3> (A) | ||
| 224 | I8-98193 670-0 | MIRROR; DOOR | 1 | 1602- | B | (B) | ||
| 224 | I8-98193 669-0 | MIRROR; DOOR | 1 | 1602- | B | (B) | ||
| 224 | I8-98193 681-0 | MIRROR; DOOR | 1 | 1602- | A | DOOR MIRROR POWER ADJUST L<DF9> (A) | ||
| 7 | I8-98200 733-0 | MIRROR ASM; DOOR | 1 | 1602- | A | DOOR MIRROR POWER ADJUST L<DF9> (A) | ||
| 224 | I8-98193 682-0 | MIRROR; DOOR | 1 | 1602- | A | DOOR MIRROR POWER FOLDI NAL<DE3> (A) | ||
| 7 | I8-98193 672-0 | MIRROR ASM; DOOR | 1 | 1602- | A | DOOR MIRROR POWER ADJUST L<DF9> (A) | ||
| 310 | I8-98203 335-0 | COVER; DOOR MIRROR | 1 | 1602- | A | DOOR MIRROR POWER ADJUS L<DF9 > | ||
| 309 | I8-98193 684-0 | LAMP ASM; SIDE TURN,DOOR MIRROR | 1 | 1602- | A | DOOR MIRROR POWER ADJUS L<DF9 > | ||
| 7 | I8-98065 334-4 | MIRROR ASM; DOOR | 1 | 1602- | A | DOOR MIRROR POWER FOLDI NAL<DE3> (A) | ||
| 51 | I8-98193 685-0 | SCREW; MIRROR | 2 | 1602- | A | DOOR MIRROR POWER ADJUS L<DF9> | ||
| 184 | I8-97247 698-0 | BOLT; MIRROR | 6 | 1602- | AB | 17.455 M6X14 FLANGE | ||
| 310 | I8-98203 336-0 | COVER; DOOR MIRROR | 1 | 1602- | A | DOOR MIRROR POWER ADJUS L<DF9 > | ||
| 309 | I8-98193 683-0 | LAMP ASM; SIDE TURN,DOOR MIRROR | 1 | 1602- | A | DOOR MIRROR POWER ADJUS L<DF9 > | ||
| 309 | I8-98193 683-0 | LAMP ASM; SIDE TURN,DOOR MIRROR | 1 | 1602- | A | DOOR MIRROR POWER FOLDI NAL<DE3> | ||
| 319 | I8-98193 685-0 | SCREW; SIDE TURN LAMP | 2 | 1602- | A | DOOR MIRROR POWER ADJUS L<DF9 > | ||
| 310 | I8-98193 687-0 | COVER; DOOR MIRROR | 1 | 1602- | A | DOOR MIRROR POWER FOLDI NAL<DE3> |
