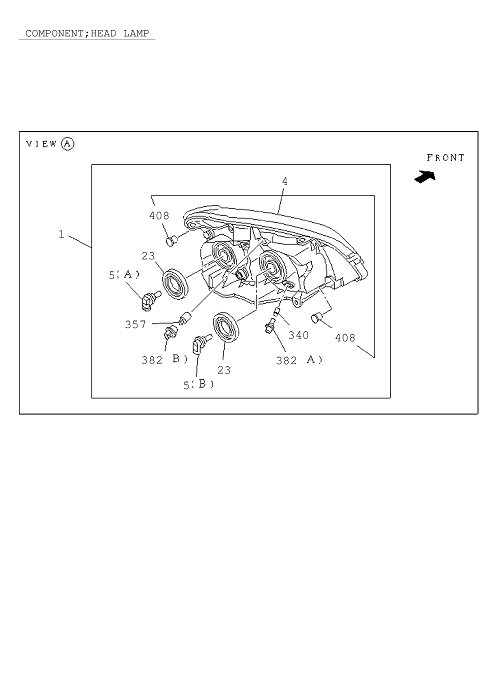

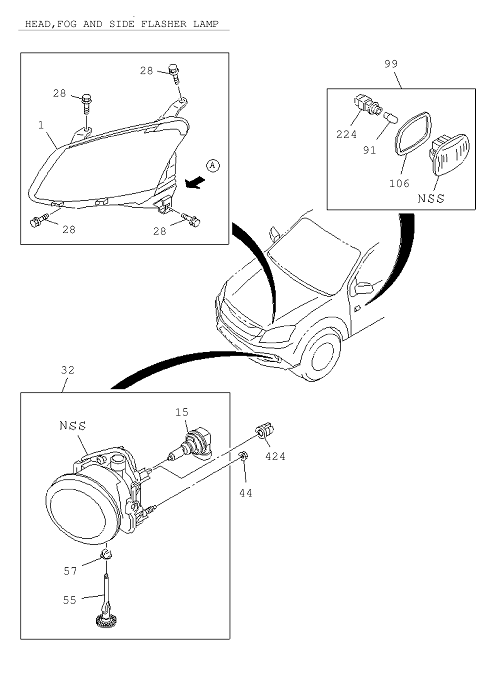

8-01 | LAMP; FRONT AND FRONT SIDE
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 44 | I8-98055 704-0 | NUT; FOG LAMP | 4 | 1602- | A | FOG LAMP<T96> 08 . 915 M6 FLANGE | ||
| 4 | I8-98219 307-2 | HEADLAMP UNIT | 1 | 1602- | AB | |||
| 1 | I8-98187 237-2 | LAMP ASM; HEAD | 1 | 1602- | AB | |||
| 382 | I8-98012 788-0 | PLUG; SOCKET,HEADLAMP | 2 | 1602- | AB | (A) | ||
| 1 | I8-98187 236-2 | LAMP ASM; HEAD | 1 | 1602- | AB | |||
| 357 | I8-98160 206-0 | BULB; TURN SIGNAL | 2 | 1602- | AB | 02.727 12V 21W | ||
| 99 | I8-98084 153-0 | LAMP; SIDE FLASHER | 2 | 1602- | B | |||
| 382 | I8-98160 270-0 | PLUG; SOCKET,HEADLAMP | 2 | 1602- | AB | (B) | ||
| 32 | I8-98226 795-0 | LAMP ASM; FOG | 1 | 1602- | A | FOG LAMP<T96> | ||
| 106 | I8-97333 420-0 | GASKET; SIDE TURN SIGNAL | 2 | 1602- | B | |||
| 4 | I8-98219 308-2 | HEADLAMP UNIT | 1 | 1602- | AB | |||
| 424 | I8-97372 854-0 | RETAINER; FOG LAMP | 2 | 1602- | A | FOG LAMP<T96> | ||
| 57 | I8-98017 835-0 | NUT; UNIT TO SCREW,FOG LAMP | 2 | 1602- | A | FOG LAMP<T96> | ||
| 5 | I8-98160 205-0 | BULB; HEADLAMP | 2 | 1602- | AB | (A) 12V 55W | ||
| 32 | I8-98226 794-0 | LAMP ASM; FOG | 1 | 1602- | A | FOG LAMP<T96> | ||
| 91 | I8-97310 952-0 | BULB; SIDE TURN SIGNAL | 2 | 1602- | B | 12V 5W | ||
| 5 | I8-97289 997-0 | BULB; HEADLAMP | 2 | 1602- | AB | (B) 12V 60W | ||
| 340 | I8-97310 952-0 | BULB; POSITION | 2 | 1602- | AB | 12V 5W | ||
| 15 | I8-98241 838-0 | BULB; FOG LAMP | 2 | 1602- | A | FOG LAMP<T96> 12V 19W | ||
| 28 | I8-98062 140-0 | BOLT; HEADLAMP | 8 | 1602- | AB | M6X18 TAPPING W/LK&PL WASHER | ||
| 224 | I8-97310 953-0 | SOCKET; SIDE FLASHER LAMP | 2 | 1602- | B | |||
| 5 | I6-98160 205-0 | BULB; HEADLAMP | 2 | 1602- | AB | (IADG) (A) 12V 55W | ||
| 55 | I8-98241 840-0 | SCREW; ADJ,FOG LAMP | 2 | 1602- | A | FOG LAMP<T96> | ||
| 23 | I8-97675 961-0 | COVER; BULB,HEADLAMP | 4 | 1602- | AB | |||
| 408 | I8-98300 478-0 | CAP; BREATHER,HEADLAMP | 4 | 1602- | AB |
