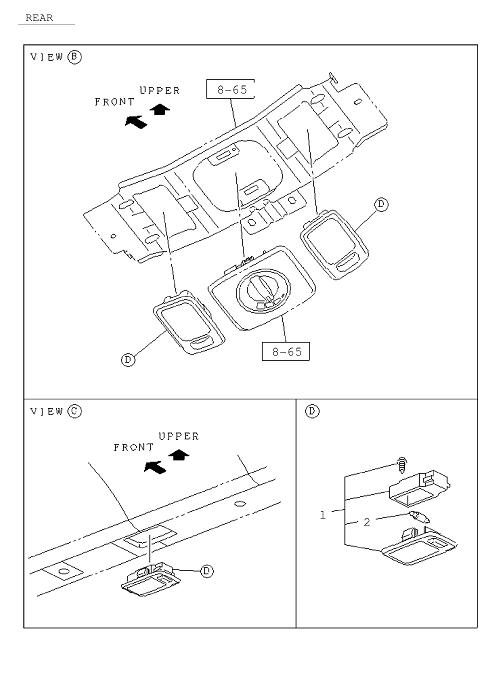

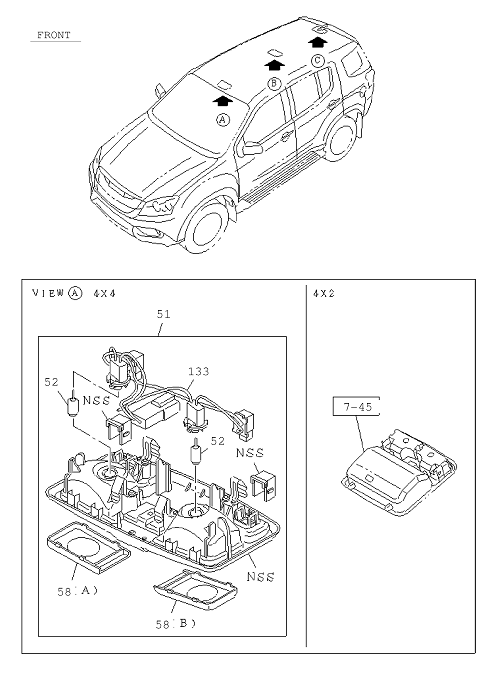

8-05 | INTERIOR LAMP
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 58 | I8-97333 440-0 | LENS; SPOT LAMP | 1 | 1602- | B | (A) | ||
| 52 | I8-97310 952-0 | BULB; SPOT LAMP | 2 | 1602- | B | 12V 5W | ||
| 2 | I8-94153 335-0 | BULB; ROOM LAMP | 3 | 1602- | AB | 12V 8W | ||
| 51 | I8-97465 462-0 | LAMP ASM; SPOT | 1 | 1602- | B | GRAY | ||
| 58 | I8-97333 441-0 | LENS; SPOT LAMP | 1 | 1602- | B | (B) | ||
| 133 | I8-97176 526-0 | SOCKET ASM; SPOT LAMP | 1 | 1602- | B | |||
| 1 | I8-97424 483-0 | LAMP ASM; ROOM | 3 | 1602- | AB | GRAY |
