8-27 | SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
MUX
MU-X 2016

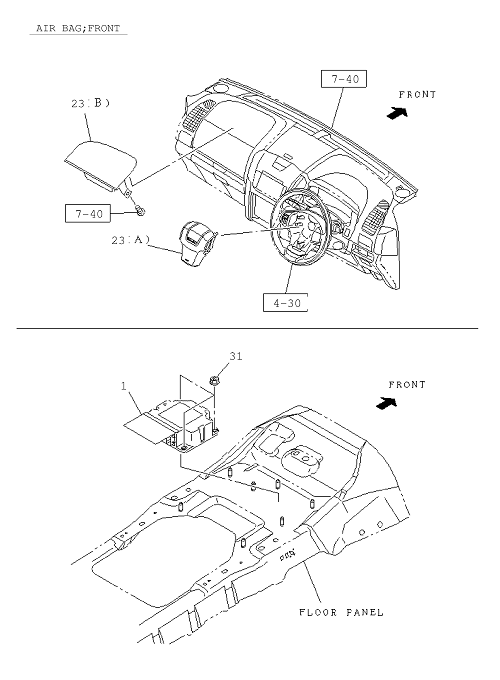

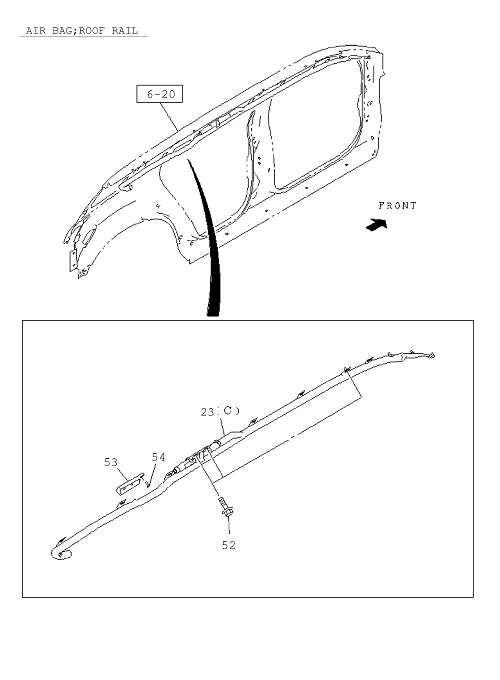

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 52 | I0-28650 620-0 | BOLT; AIR BAG | 6 | 1602- | A | AIR BAG DRIVER & PASSENGER & SIDE & I AY0) 03.162 M6X2 0 FLANGE | ||
| 31 | I0-91180 206-0 | NUT | 3 | 1602- | AB | 01.540 M6 FLANGE | ||
| 54 | I8-97416 699-0 | CLIP; PAD | 2 | 1602- | A | AIR BAG DRIVER & PASSENGER & SIDE & R AY0) 16.650 BLACK | ||
| 23 | I8-98187 777-0 | AIR BAG UNIT | 1 | 1602- | R | A | AIR BAG DRIVER & PASSENGER & SIDE & R AY0) (C) | |
| 1 | I8-98261 126-0 | CONTROL UNIT; SIR | 1 | 1602- | A | AIR BAG DRIVER & PASSENGER & SIDE & R AY0) | ||
| 1 | I8-98220 041-1 | CONTROL UNIT; SIR | 1 | 1602- | A | AIR BAG DRIVER & PASSENGER(AK5) | ||
| 23 | I8-97416 642-7 | AIR BAG UNIT | 1 | 1602- | L | AB | (B) BLACK | |
| 53 | I8-98232 400-0 | PAD; PILLAR | 1 | 1602- | L | A | AIR BAG DRIVER & PASSENGER & SIDE & R AY0) 16.165 | |
| 53 | I8-98232 399-0 | PAD; PILLAR | 1 | 1602- | R | A | AIR BAG DRIVER & PASSENGER & SIDE & R AY0) 16.165 | |
| 23 | I8-98187 778-0 | AIR BAG UNIT | 1 | 1602- | L | A | AIR BAG DRIVER & PASSENGER & SIDE & R AY0) (C) | |
| 1 | I8-98220 041-1 | CONTROL UNIT; SIR | 1 | 1602- | B | |||
| 23 | I8-97424 332-0 | AIR BAG UNIT | 1 | 1602- | R | AB | (A) BLACK |
