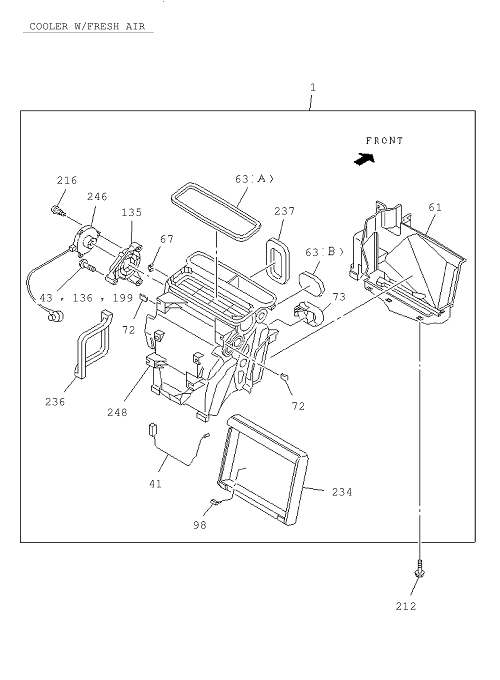

8-60 | HEATER UNIT; FRONT
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 135 | I8-98139 377-0 | COVER; HTR | 1 | 1602- | A | |||
| 246 | I8-98139 397-1 | ACTUATOR; MODE | 1 | 1602- | A | COOLER W/FRESH AIR(C6 5) | ||
| 216 | I8-98233 593-0 | SCREW; COVER,HEATER UNIT | 3 | 1602- | A | .925 | ||
| 248 | I8-98233 563-0 | CASE ASM; HTR UNIT | 1 | 1602- | B | |||
| 136 | I8-98233 593-0 | SCREW; PLATE | 2 | 1602- | AB | .925 | ||
| 1 | I8-98279 378-0 | HEATER UNIT | 1 | 1602- | A | AUTO COOLER SYSTEM(CJ2) | ||
| 61 | I8-98233 572-0 | CASE; HTR UNIT | 1 | 1602- | AB | |||
| 248 | I8-98233 570-0 | CASE ASM; HTR UNIT | 1 | 1602- | A | AUTO COOLER SYSTEM(CJ2) | ||
| 43 | I8-98233 593-0 | SCREW; CASE,HTR UNIT | 15 | 1602- | AB | .925 | ||
| 73 | I8-98233 591-0 | PLATE; HTR UNIT | 1 | 1602- | AB | |||
| 67 | I8-98157 123-0 | CLIP; HTR UNIT | 1 | 1602- | AB | |||
| 139 | I8-98139 392-1 | ASPIRATOR; HTR UNIT | 1 | 1602- | A | AUTO COOLER SYSTEM(CJ2) | ||
| 199 | I8-98233 593-0 | SCREW; ACTUATOR | 2 | 1602- | A | AUTO COOLER SYSTEM(CJ2) 08 .852 | ||
| 63 | I8-98157 118-1 | LINING; HTR UNIT | 1 | 1602- | AB | (B) | ||
| 63 | I8-98139 358-1 | LINING; HTR UNIT | 1 | 1602- | B | |||
| 41 | I8-98139 382-0 | THERMOSTAT; HTR UNIT | 1 | 1602- | A | AUTO COOLER SYSTEM(CJ2) | ||
| 41 | I8-98157 121-0 | THERMOSTAT; HTR UNIT | 1 | 1602- | B | |||
| 199 | I8-98233 593-0 | SCREW; ACTUATOR | 3 | 1602- | A | COOLER W/FRESH AIR(C6 5) 08 .852 | ||
| 212 | I0-28650 620-0 | BOLT; HTR UNIT | 5 | 1602- | AB | 03.162 M6X2 0 FLANGE | ||
| 63 | I8-98139 358-1 | LINING; HTR UNIT | 1 | 1602- | A | COOLER W/FRESH AIR(C6 5) (A) | ||
| 1 | I8-98279 363-0 | HEATER UNIT | 1 | 1602- | B | |||
| 41 | I8-98157 121-0 | THERMOSTAT; HTR UNIT | 1 | 1602- | A | COOLER W/FRESH AIR(C6 5) | ||
| 72 | I8-98139 394-1 | NUT; CASE,HTR UNIT | 3 | 1602- | AB | |||
| 40 | I8-98139 385-0 | ACTUATOR; HTR UNIT | 1 | 1602- | A | AUTO COOLER SYSTEM(CJ2) | ||
| 1 | I8-98279 364-0 | HEATER UNIT | 1 | 1602- | A | COOLER W/FRESH AIR(C6 5) | ||
| 236 | I8-98139 357-1 | GASKET; HEATER | 1 | 1602- | AB | |||
| 237 | I8-98139 360-1 | INSULATOR; EVAPORATOR | 1 | 1602- | AB | |||
| 248 | I8-98233 564-0 | CASE ASM; HTR UNIT | 1 | 1602- | A | COOLER W/FRESH AIR(C6 5) | ||
| 140 | I8-98274 187-0 | HOSE; AIR | 1 | 1602- | A | AUTO COOLER SYSTEM(CJ2) | ||
| 98 | I8-98157 122-0 | CLIP; HTR UNIT | 1 | 1602- | AB | |||
| 63 | I8-98139 358-1 | LINING; HTR UNIT | 2 | 1602- | A | AUTO COOLER SYSTEM(CJ2) (A) | ||
| 234 | I8-98291 531-0 | EVAPORATOR ASM; HEATER | 1 | 1602- | AB |
