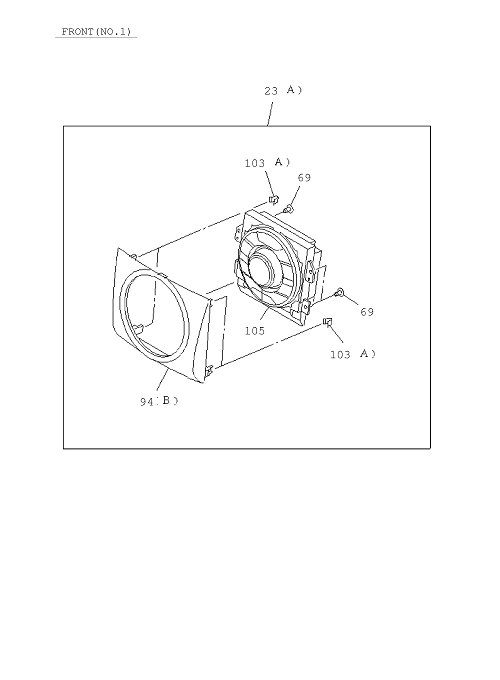

8-65 | CONTROL LEVER; HEATER AND AIR CON
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 23 | I8-98250 024-0 | BEZEL; CONT LEVER | 1 | 1602- | A | (D) | ||
| 105 | I8-98322 458-0 | SWITCH ASM; A/C | 1 | 1602- | A | AUTO COOLER SYSTEM(CJ2 ) | ||
| 94 | I8-98164 668-0 | PANEL; BEZEL | 1 | 1602- | A | COOLER W/FRESH AIR(C65) (A) | ||
| 23 | I8-98198 067-0 | BEZEL; CONT LEVER | 1 | 1602- | B | REAR COOLER WO/HEATER<C6 9> (C) | ||
| 23 | I8-98198 067-0 | BEZEL; CONT LEVER | 1 | 1602- | A | (C) | ||
| 73 | I8-97386 830-0 | SWITCH; FAN,CONT PANEL | 1 | 1602- | A | |||
| 68 | I8-98198 068-0 | BRACKET; BEZEL | 1 | 1602- | AB | |||
| 73 | I8-97386 830-0 | SWITCH; FAN,CONT PANEL | 1 | 1602- | B | REAR COOLER WO/HEATER<C6 9> | ||
| 69 | I8-98164 986-0 | SCREW; BEZEL BRKT | 4 | 1602- | AB | M4X10 TAPPING | ||
| 94 | I8-98141 789-0 | PANEL; BEZEL | 1 | 1602- | A | AUTO COOLER SYSTEM(CJ2) (B) | ||
| 94 | I8-98164 670-0 | PANEL; BEZEL | 1 | 1602- | B | (A) | ||
| 96 | I8-98156 188-0 | BULB ASM; BEZEL | 2 | 1602- | B | |||
| 23 | I8-98250 024-0 | BEZEL; CONT LEVER | 1 | 1602- | B | REAR COOLER WO/HEATER<C6 9> (D) | ||
| 103 | I8-98164 677-0 | CLIP | 4 | 1602- | AB | 16.165 (A) | ||
| 103 | I8-97386 832-0 | CLIP | 2 | 1602- | A | (B) | ||
| 50 | I8-98250 549-0 | KNOB; CONT PANEL | 1 | 1602- | A | |||
| 96 | I8-98156 188-0 | BULB ASM; BEZEL | 2 | 1602- | A | COOLER W/FRESH AIR(C65) | ||
| 103 | I8-97386 832-0 | CLIP | 2 | 1602- | B | REAR COOLER WO/HEATER<C6 9> (B) | ||
| 106 | I8-98142 039-0 | CONTROL SUB ASM; HTR & A/C | 1 | 1602- | A | COOLER W/FRESH AIR(C65) EXC. KNOB DECORATION W/CHROME R | ||
| 106 | I8-98142 033-0 | CONTROL SUB ASM; HTR & A/C | 1 | 1602- | A | KNOB DECORATION W/CHROME RING<B COOLER W/FRESH AIR(C65) | ||
| 61 | I0-28650 616-0 | BOLT; CONT LEVER | 2 | 1602- | AB | 02 . 343 M6X16 FLANGE | ||
| 23 | I8-98103 517-4 | BEZEL; CONT LEVER | 1 | 1602- | A | KNOB DECORATION W/CHROME RING<B COOLER W/FRESH AIR(C65) (B) | ||
| 23 | I8-98052 641-4 | BEZEL; CONT LEVER | 1 | 1602- | A | COOLER W/FRESH AIR(C65) EXC. KNOB DECORATION W/CHROME R (B) | ||
| 23 | I8-98198 066-0 | BEZEL; CONT LEVER | 1 | 1602- | B | (B) | ||
| 50 | I8-98250 549-0 | KNOB; CONT PANEL | 1 | 1602- | B | REAR COOLER WO/HEATER<C6 9> | ||
| 23 | I8-98290 443-1 | BEZEL; CONT LEVER | 1 | 1602- | A | AUTO COOLER SYSTEM(CJ2) (A) | ||
| 106 | I8-98250 550-0 | CONTROL SUB ASM; HTR & A/C | 1 | 1602- | B |
