8-85 | REAR WIPER AND WASHER
MUX
MU-X 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

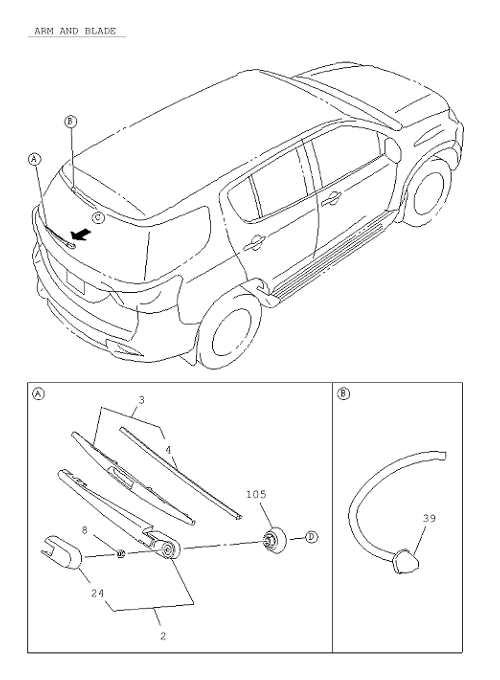

| 3 | I8-98222 259-0 | BLADE ASM; REAR WIPER | 1 | 1602- | A | |||
| 99 | I8-98164 723-0 | BOLT; WIPER MOTOR | 3 | 1602- | A | 02.762 M6X23.5 W/LK&PL WASHER | ||
| 39 | I8-98201 496-1 | NOZZLE; RR WINDSHIELD,WASHER | 1 | 1602- | A | |||
| 24 | I8-98210 717-0 | CAP; WASHER TANK,RR | 1 | 1602- | A | |||
| 4 | I8-98253 585-0 | RUBBER; BLADE,RR WIPER | 1 | 1602- | A | |||
| 2 | I8-98222 258-0 | ARM ASM; REAR WIPER | 1 | 1602- | A | |||

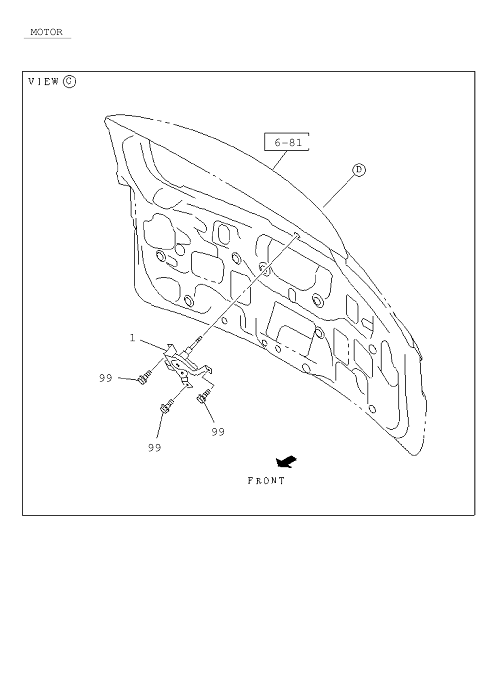

| 1 | I8-98187 251-0 | MOTOR ASM; RR WIPER | 1 | 1602- | A | |||
| 8 | I0-91111 506-0 | NUT; RR WIPER ARM TO WIPER MOTOR | 1 | 1602- | A | 08.155 M6 | ||
| 105 | I8-98210 508-0 | GROMMET; RR WIPER MOTOR | 1 | 1602- | A |
