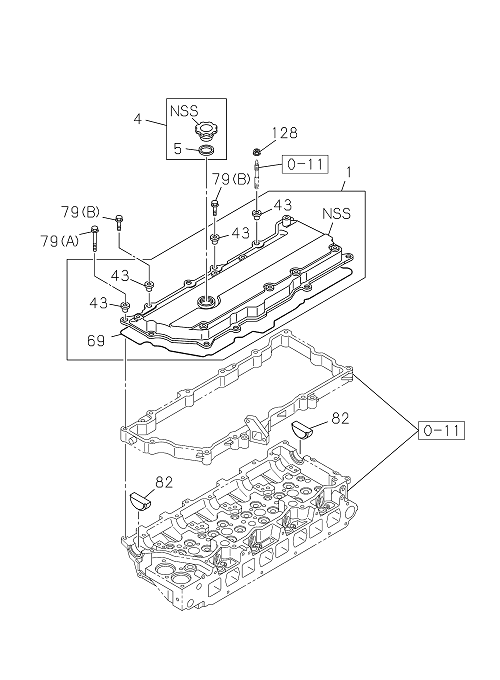

0-10 | CYLINDER HEAD COVER
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 079 | I0-28650 835-0 | BOLT; COVER | 2 | 2204- | ALL | (B) M8X35 FLANGE | ||
| 043 | I8-94395 684-0 | RUBBER; MTG,HD COVER,OUTER | 11 | 2204- | ALL | OD=22 | ||
| 001 | I8-97846 577-0 | COVER; CYL HD | 1 | 2204- | ALL | |||
| 005 | I8-94123 623-1 | GASKET; OIL FILLER | 1 | 2204- | ALL | ID=32 OD=40 | ||
| 069 | I8-97331 359-1 | GASKET; HD TO COVER | 1 | 2204- | ALL | |||
| 079 | I1-09044 072-1 | BOLT; COVER | 7 | 2204- | ALL | (A) M8X65 FLANGE | ||
| 082 | I8-97848 757-0 | PLUG; CYL HD COVER | 2 | 2207- | ALL | |||
| 128 | I7-05108 010-A | NUT; COVER,CYL HEAD COVER | 2 | 2204- | ALL | M8 FLANGE | ||
| 004 | I8-94133 207-5 | CAP; OIL FILLER | 1 | 2204- | ALL | |||
| 082 | I8-98163 813-0 | PLUG; CYL HD COVER | 2 | 2204-2206 | ALL |
