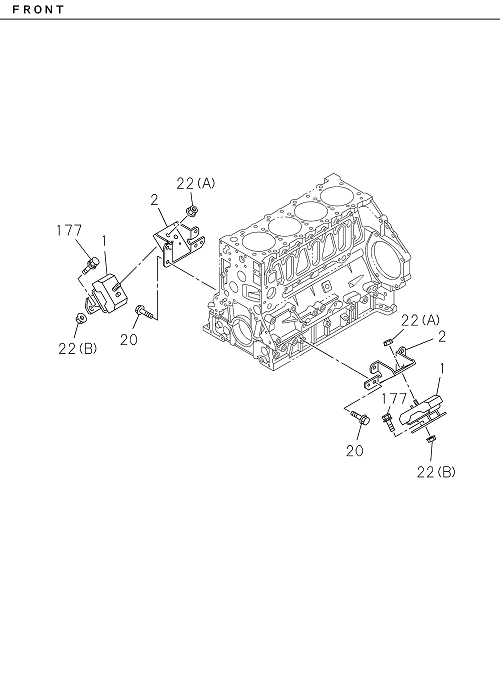

| 076 |
I8-98343 457-0 |
|
STOPPER; ENG MTG RUBBER |
1 |
2204- |
|
ALL |
(B) |
| 001 |
I8-98329 107-0 |
|
RUBBER; ENG FOOT,FRT |
1 |
2204- |
|
ALL |
|
| 022 |
I7-05110 010-A |
|
NUT; CUSHION RUBBER TO BRKT |
4 |
2204- |
|
ALL |
(B) M10 FLANGE |

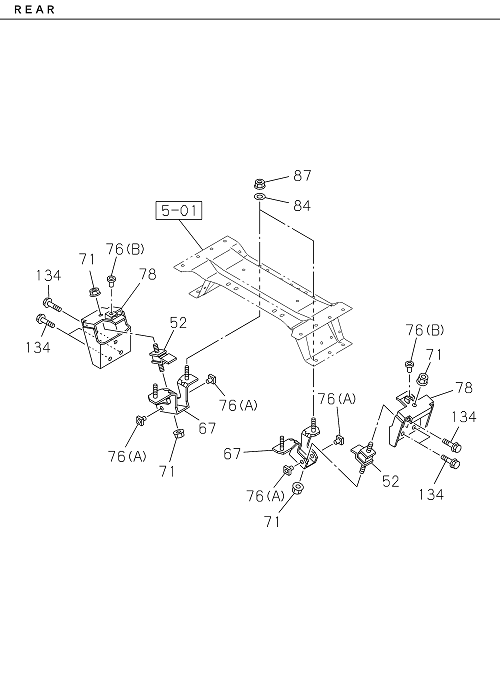

| 067 |
I8-98343 438-0 |
|
BRACKET; SUPPORT,ENG MTG,RR |
1 |
2204- |
|
NPS81 |
|
| 134 |
I0-28751 225-0 |
|
BOLT; SUPPORT BRKT |
6 |
2204- |
|
ALL |
M12X25 FLANGE |
| 078 |
I8-98343 452-0 |
|
BRACKET; ENG MTG,RR |
1 |
2204- |
|
NPS81 |
|
| 076 |
I8-98343 456-0 |
|
STOPPER; ENG MTG RUBBER |
2 |
2204- |
|
ALL |
(A) |
| 087 |
I0-91180 110-0 |
|
NUT; ENG MTG RR |
4 |
2204- |
|
ALL |
M10 FLANGE |
| 020 |
I0-28161 020-0 |
|
BOLT; ENG FOOT |
8 |
2204- |
|
ALL |
M10X20 FLANGE |
| 084 |
I0-91614 810-0 |
|
WASHER; PL,ENG MTG RR TO FRAME |
4 |
2204- |
|
ALL |
ID=10.5 OD=32 |
| 052 |
I8-98329 111-0 |
|
RUBBER; CUSHION,ENG MTG,RR |
1 |
2204- |
|
NPS81 |
|
| 071 |
I0-91180 110-0 |
|
NUT; SUPPORT RUBBER TO BRKT |
2 |
2204- |
|
ALL |
M10 FLANGE |
| 078 |
I8-98343 441-0 |
|
BRACKET; ENG MTG,RR |
1 |
2204- |
|
NQR81 |
|
| 022 |
I0-91180 112-0 |
|
NUT; CUSHION RUBBER TO BRKT |
2 |
2204- |
|
ALL |
(A) M12 FLANGE |
| 001 |
I8-98329 106-0 |
|
RUBBER; ENG FOOT,FRT |
1 |
2204- |
|
ALL |
|
| 067 |
I8-98343 427-0 |
|
BRACKET; SUPPORT,ENG MTG,RR |
1 |
2204- |
|
NQR81 |
|
| 067 |
I8-98343 437-0 |
|
BRACKET; SUPPORT,ENG MTG,RR |
1 |
2204- |
|
NPS81 |
|
| 078 |
I8-98343 451-0 |
|
BRACKET; ENG MTG,RR |
1 |
2204- |
|
NPS81 |
|
| 177 |
I8-94468 733-1 |
|
BOLT; BRKT TO CUSHION RUBBER |
4 |
2204- |
|
ALL |
M10X37.5 |
| 052 |
I8-98329 109-0 |
|
RUBBER; CUSHION,ENG MTG,RR |
1 |
2204- |
|
NQR81 |
|
| 067 |
I8-98343 428-0 |
|
BRACKET; SUPPORT,ENG MTG,RR |
1 |
2204- |
|
NQR81 |
|
| 002 |
I8-97228 669-2 |
|
FOOT; ENG |
2 |
2204- |
|
ALL |
|
