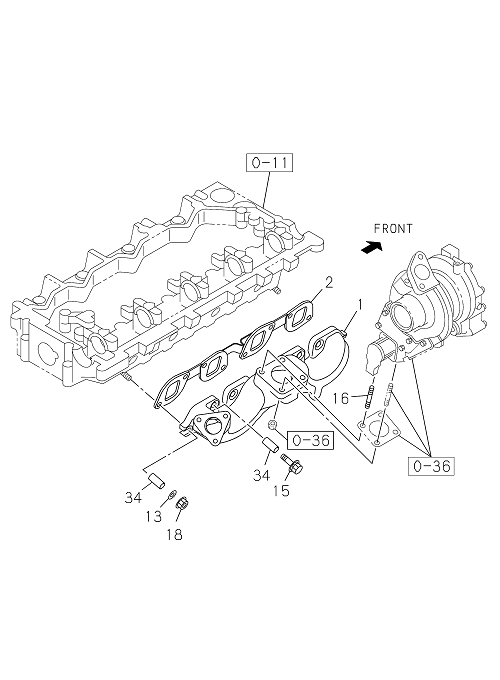

0-27 | EXHAUST MANIFOLD
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 034 | I8-97250 073-1 | COLLAR; DIST,EXH MANIF | 8 | 2204- | ALL | L=28 | ||
| 015 | I8-97061 543-0 | BOLT; EXH MANIF | 6 | 2204- | ALL | M10X60 | ||
| 016 | I8-97656 181-0 | STUD; EXH PIPE TO MANIF | 2 | 2204- | ALL | M10X13,M10X26 L=41 | ||
| 013 | I1-09556 015-0 | WASHER; LK,EXH MANIF | 2 | 2204- | ALL | T=2.2 | ||
| 001 | I8-97559 840-0 | MANIFOLD; EXHAUST | 1 | 2204- | ALL | |||
| 018 | I0-91110 510-0 | NUT; EXH MANIF | 2 | 2204- | ALL | M10 | ||
| 002 | I8-97146 499-2 | GASKET; EXH MANIF TO HD | 1 | 2204- | ALL | |||
| 002 | I8-97146 499-A | GASKET; EXH MANIF TO HD | 1 | 2204- | ALL | (IADG) |
