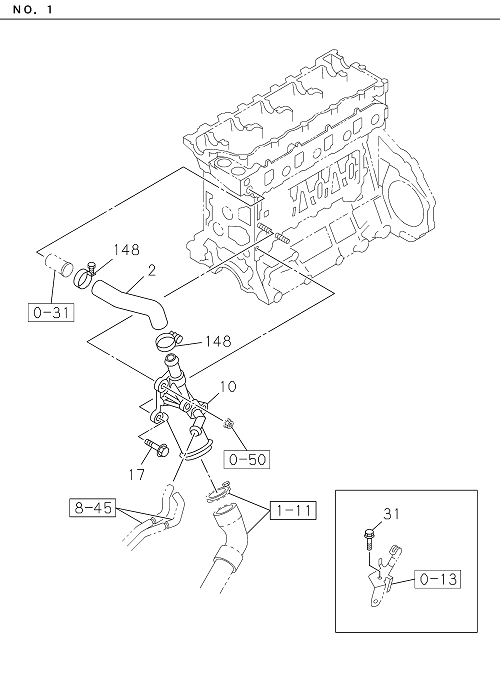

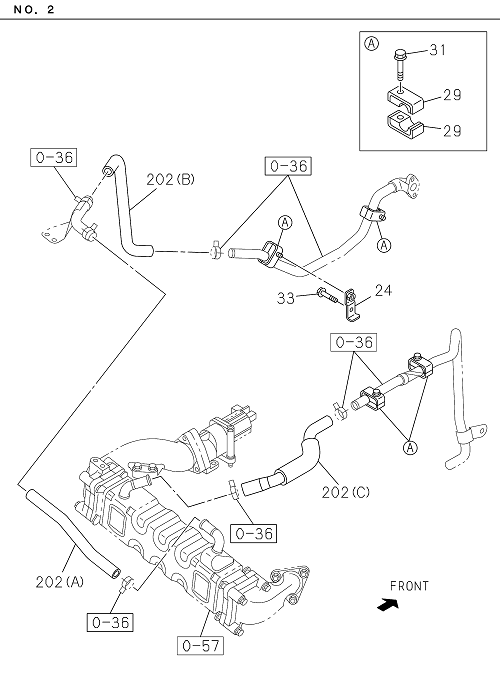

0-32 | WATER PIPING; ENGINE


ELF
NPS81 NQR81 E4
Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
---|---|---|---|---|---|---|---|---|
024 | I8-98242 501-0 | BRACKET; WATER PIPE | 1 | 2204- | ALL | |||
202 | I8-97559 836-A | HOSE; RUBBER,EGR COOLER | 1 | 2204- | ALL | (C) | ||
148 | I1-09704 037-0 | CLIP; BYPASS HOSE | 2 | 2204- | ALL | ID=30 | ||
033 | I0-28050 816-0 | BOLT; BRKT | 1 | 2204- | ALL | M8X16 FLANGE | ||
029 | I1-09701 284-0 | CLIP; PIPE | 8 | 2204- | ALL | ID=17 L=17 | ||
202 | I8-97559 835-A | HOSE; RUBBER,EGR COOLER | 1 | 2204- | ALL | (B) | ||
010 | I8-98166 991-0 | PIPE; SUCTION | 1 | 2204- | ALL | |||
202 | I8-97559 834-A | HOSE; RUBBER,EGR COOLER | 1 | 2204- | ALL | (A) | ||
031 | I0-28050 840-0 | BOLT; CLIP | 3 | 2204- | ALL | M8X40 FLANGE | ||
002 | I8-98235 636-2 | HOSE; WATER,BY-PASS | 1 | 2204- | ALL | |||
031 | I0-28050 845-0 | BOLT; CLIP | 1 | 2204- | ALL | M8X45 FLANGE | ||
017 | I8-94458 473-1 | BOLT; SUCTION PIPE | 1 | 2204- | ALL | M8X48 FLANGE |
