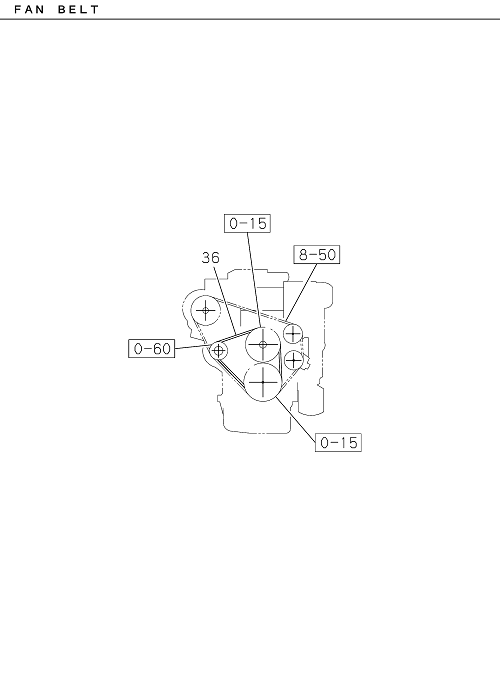

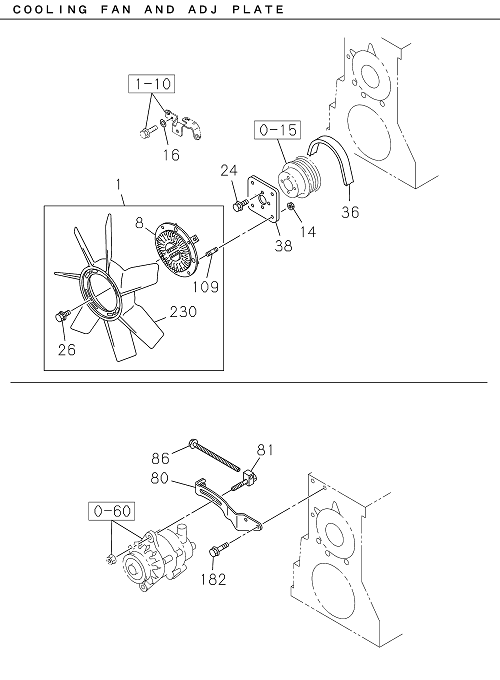

0-33 | FAN AND FAN BELT
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-98190 148-1 | FAN; COOLING | 1 | 2204- | ALL | OD=510 | ||
| 086 | I8-97172 720-1 | BOLT; ADJ | 1 | 2204- | ALL | M8X130 FLANGE | ||
| 036 | I8-97648 718-A | BELT; COOLING FAN | 1 | 2204- | ALL | (IADG) | ||
| 230 | I8-98190 058-0 | FAN; COOLING | 1 | 2204- | ALL | |||
| 036 | I8-97648 718-0 | BELT; COOLING FAN | 1 | 2204- | ALL | |||
| 008 | I8-98019 743-0 | CLUTCH; COOLING FAN | 1 | 2204- | ALL | |||
| 080 | I8-97249 636-0 | PLATE; ADJ | 1 | 2204- | ALL | |||
| 014 | I7-05108 010-A | NUT; FAN TO CLU | 4 | 2204- | ALL | M8 FLANGE | ||
| 182 | I0-28650 835-0 | BOLT; BRKT | 2 | 2204- | ALL | M8X35 FLANGE | ||
| 024 | I0-28080 818-0 | BOLT; FAN | 4 | 2204- | ALL | M8X18 FLANGE | ||
| 016 | I0-91614 608-0 | WASHER; PL,COOLING FAN | 1 | 2204- | ALL | ID=8.4 OD=18 | ||
| 026 | I8-94389 764-0 | BOLT; FAN TO CLU | 4 | 2204- | ALL | |||
| 081 | I8-97257 223-0 | PIECE; SLIDING | 1 | 2204- | ALL | |||
| 109 | I8-97049 577-1 | STUD; FAN CLU | 4 | 2204- | ALL | M8X13.5 L=22 | ||
| 038 | I8-97108 643-0 | SPACER; FAN | 1 | 2204- | ALL |
