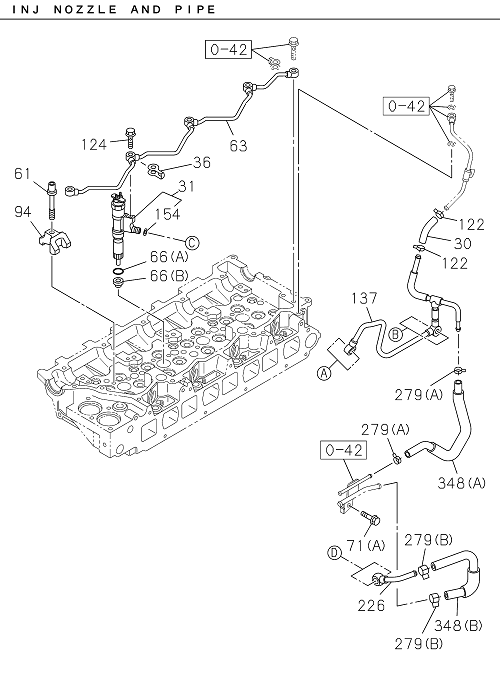

0-40 | FUEL INJECTION SYSTEM
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 216 | I8-97351 388-0 | BOLT; EYE | 1 | 2204- | ALL | (B) M10X23 EYE-BOLT | ||
| 036 | I8-98065 992-0 | GASKET; RETURN PIPE,NOZZLE HOLDER | 4 | 2204- | ALL | ID=8.3 OD=15.0 | ||
| 002 | I0-28151 270-0 | BOLT; INJ PUMP | 1 | 2204- | ALL | (C) M12X70 FLANGE | ||
| 382 | I8-98161 995-0 | KEY; DRIVE SHAFT | 1 | 2204- | ALL | |||
| 354 | I0-28050 816-0 | BOLT; FUEL PIPE | 2 | 2204- | ALL | M8X16 FLANGE | ||
| 031 | I8-97559 597-0 | NOZZLE ASM; INJ | 4 | 2204- | ALL | |||
| 158 | I0-91180 110-0 | NUT; INJ PUMP | 2 | 2204- | ALL | (A) M10 FLANGE | ||
| 068 | I8-98148 996-2 | CLIP; INJ PIPE | 10 | 2204- | ALL | (C) ID=11 & 11 L=19 | ||
| 019 | I8-98219 031-0 | PIPE; INJ NO.4 | 1 | 2204- | ALL | |||
| 216 | I8-98035 828-0 | BOLT; EYE | 1 | 2204- | ALL | (A) M10X23 EYE-BOLT | ||
| 068 | I8-97330 118-3 | CLIP; INJ PIPE | 1 | 2204-2304 | ALL | (A) ID=7 & 7 L=22 | ||
| 120 | I8-98041 601-0 | BRACKET; INJ PIPE | 1 | 2204- | ALL | |||
| 199 | I8-97602 218-0 | GASKET; EYE BOLT | 4 | 2204- | ALL | (B) | ||
| 068 | I8-97330 119-3 | CLIP; INJ PIPE | 1 | 2204-2304 | ALL | (B) ID=7 & 7 L=22 | ||
| 288 | I1-15641 046-0 | GASKET | 1 | 2204- | ALL | ID=11 OD=16.3 | ||
| 137 | I8-98320 076-0 | PIPE ASM; LEAK OFF | 1 | 2204- | ALL | |||
| 068 | I8-97879 635-0 | CLIP; INJ PIPE | 1 | 2305- | ALL | (B) ID=7 & 7 L=22 | ||
| 279 | I8-97375 638-0 | CLIP; FUEL HOSE | 2 | 2204- | ALL | (B) ID=11.5 | ||
| 378 | I8-97601 698-1 | GEAR; PUMP | 1 | 2204- | ALL | Z=35 | ||
| 168 | I8-98271 418-0 | BRACKET; FUEL PIPE | 1 | 2204- | ALL | |||
| 392 | I7-05108 010-A | NUT; RAIL ASM | 3 | 2204- | ALL | M8 FLANGE | ||
| 068 | I8-97879 634-0 | CLIP; INJ PIPE | 1 | 2305- | ALL | (A) ID=7 & 7 L=22 | ||
| 061 | I8-98008 895-0 | BOLT; CLAMP NOZZLE HOLDER | 4 | 2204- | ALL | M8X54 | ||
| 279 | I8-98030 682-0 | CLIP; FUEL HOSE | 2 | 2204- | ALL | (A) ID=16 | ||
| 071 | I0-28050 835-0 | BOLT; BRKT | 2 | 2204- | ALL | (D) M8X35 FLANGE | ||
| 388 | I0-49140 835-0 | STUD; RAIL | 2 | 2204- | ALL | M8X35 L=53 | ||
| 063 | I8-97306 081-0 | PIPE; FUEL,NOZZLE LEAK OFF | 1 | 2204- | ALL | |||
| 424 | I8-98145 501-1 | OVERHAUL KIT; SUPPLY PUMP | 1 | 2204- | ALL | |||
| 205 | I8-98023 581-0 | SENSOR; FUEL TEMP | 1 | 2204- | ALL | |||
| 348 | I8-98320 081-0 | HOSE; FUEL | 1 | 2204- | ALL | (B) | ||
| 216 | I5-15759 003-0 | BOLT; EYE | 1 | 2204- | ALL | (C) M14X26 EYE-BOLT | ||
| 158 | I0-91180 114-0 | NUT; INJ PUMP | 1 | 2204- | ALL | (B) M14 FLANGE | ||
| 071 | I0-28050 825-0 | BOLT; BRKT | 2 | 2204- | ALL | (C) M8X25 FLANGE | ||
| 219 | I8-98031 844-0 | GASKET | 1 | 2204- | ALL | ID=52 | ||
| 066 | I8-94173 412-0 | GASKET; INJ NOZZLE | 4 | 2204- | ALL | (A) ID=23.3 | ||
| 122 | I8-97375 638-0 | CLIP; LEAK OFF PIPE | 2 | 2204- | ALL | ID=11.5 | ||
| 087 | I0-28650 830-0 | BOLT; PUMP | 3 | 2204- | ALL | M8X30 FLANGE | ||
| 071 | I0-28050 816-0 | BOLT; BRKT | 2 | 2204- | ALL | (A) M8X16 FLANGE | ||
| 154 | I0-95690 111-0 | GASKET; CONNECTOR | 4 | 2204- | ALL | ID=11.0 | ||
| 289 | I8-98032 549-0 | LIMITER; FUEL PRESS | 1 | 2204- | ALL | |||
| 071 | I0-28050 610-0 | BOLT; BRKT | 2 | 2204- | ALL | (B) M6X10 FLANGE | ||
| 080 | I8-97648 717-A | BRACKET; PUMP | 1 | 2204- | ALL | |||
| 002 | I0-28151 290-0 | BOLT; INJ PUMP | 1 | 2204- | ALL | (B) M12X90 FLANGE | ||
| 210 | I8-98213 697-0 | PIPE; INJ,C/R | 1 | 2204- | ALL | |||
| 110 | I0-91180 106-0 | NUT; CLIP | 6 | 2204- | ALL | M6 FLANGE | ||
| 199 | I1-15619 507-0 | GASKET; EYE BOLT | 2 | 2204- | ALL | (A) ID=14.2 | ||
| 016 | I8-98219 028-0 | PIPE; INJ NO.1 | 1 | 2204- | ALL | |||
| 066 | I8-98079 248-0 | GASKET; INJ NOZZLE | 4 | 2204- | ALL | (B) ID=9.2 T=8.1 | ||
| 348 | I8-97648 719-0 | HOSE; FUEL | 1 | 2204- | ALL | (A) | ||
| 226 | I8-98226 198-1 | PIPE; FUEL | 1 | 2204- | ALL | |||
| 071 | I0-28050 816-0 | BOLT; BRKT | 2 | 2204- | ALL | (A) M8X16 FLANGE | ||
| 018 | I8-98219 030-0 | PIPE; INJ NO.3 | 1 | 2204- | ALL | |||

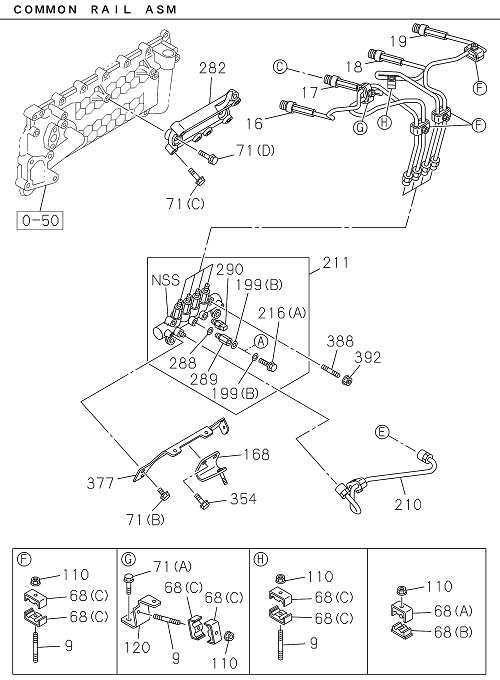

| 211 | I8-98011 888-2 | RAIL ASM; COMMON | 1 | 2204- | ALL | |||
| 002 | I0-28151 050-0 | BOLT; INJ PUMP | 1 | 2204- | ALL | (A) M10X50 FLANGE | ||
| 017 | I8-98219 029-0 | PIPE; INJ NO.2 | 1 | 2204- | ALL | |||
| 445 | I8-98204 986-0 | SCREW; FILTER,INLET | 1 | 2204- | ALL | |||
| 001 | I8-97386 557-6 | PUMP ASM; INJ | 1 | 2204- | ALL | |||
| 094 | I8-98028 999-1 | BRACKET; INJ NOZZLE | 4 | 2204- | ALL | |||
| 161 | I8-97363 237-0 | STUD; INJ PUMP | 2 | 2204- | ALL | M10X46.5 L=58.5 | ||
| 377 | I8-98113 835-0 | BRACKET; HARNESS | 1 | 2204- | ALL | |||
| 124 | I1-09675 037-1 | BOLT; EYE LEAK OFF PIPE | 4 | 2204- | ALL | M8X18 EYE-BOLT | ||
| 030 | I8-98320 077-0 | HOSE; RUBBER,FUEL LEAK | 1 | 2204- | ALL | |||
| 282 | I8-97648 715-A | BRACKET; COMMON RAIL | 1 | 2204- | ALL | |||
| 009 | I8-97203 278-0 | STUD; CLIP | 5 | 2204- | ALL | M6X35 L=43 | ||
| 290 | I8-98119 790-0 | SENSOR; PRESS | 1 | 2204- | ALL |
