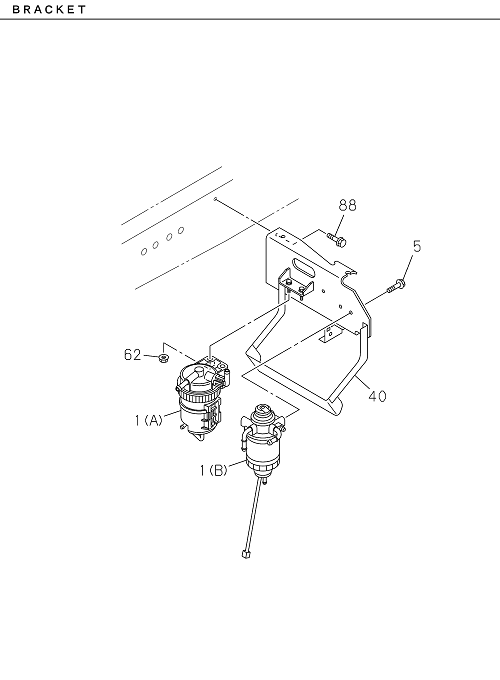

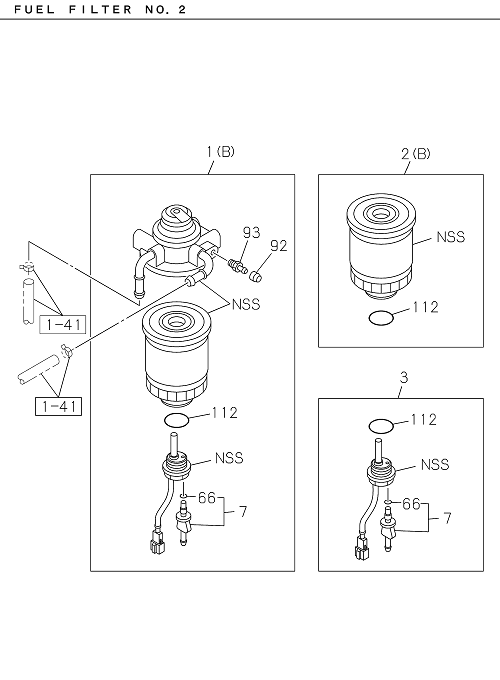

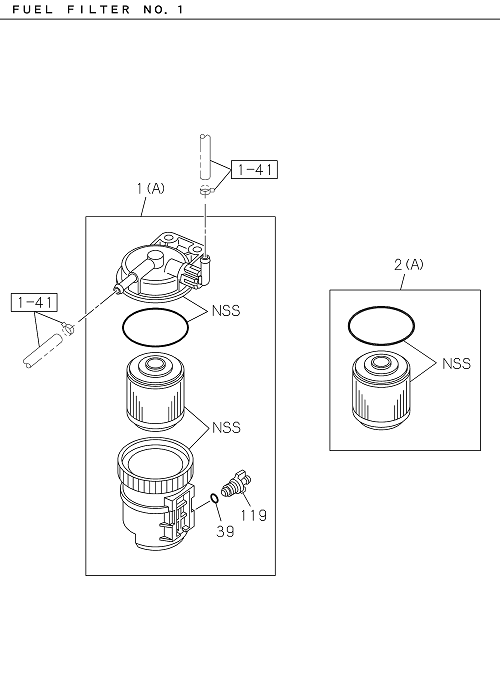

0-41 | FUEL FILTER AND BRACKET
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 062 | I7-05108 010-A | NUT; FUEL FILTER | 2 | 2204- | ALL | M8 FLANGE | ||
| 002 | I8-98159 693-A | ELEMENT KIT; FUEL FILTER | 1 | 2204- | ALL | (IADG) (A) MAIN FILTER | ||
| 040 | I8-98323 451-0 | BRACKET; FUEL FILTER | 1 | 2204- | ALL | |||
| 002 | I8-98037 481-0 | ELEMENT KIT; FUEL FILTER | 1 | 2204- | ALL | (B) PRE FILTER | ||
| 039 | I8-98188 943-0 | GASKET; DRAIN PLUG | 1 | 2204- | ALL | |||
| 119 | I8-98188 941-0 | PLUG; DRAIN,FUEL FILTER | 1 | 2204- | ALL | |||
| 001 | I8-98184 212-1 | FILTER ASM; FUEL | 1 | 2204- | ALL | (A) | ||
| 003 | I8-98244 942-0 | SENSOR ASM; FUEL FILTER | 1 | 2204- | ALL | |||
| 112 | I1-09623 649-0 | GASKET; SENSOR TO CASE | 1 | 2204- | ALL | |||
| 088 | I0-28651 030-0 | BOLT; BRKT,FUEL FILTER | 2 | 2204- | ALL | M10X30 FLANGE | ||
| 005 | I7-04508 025-A | BOLT; FUEL FILTER | 2 | 2204- | ALL | M8X20 FLANGE | ||
| 001 | I8-97504 758-0 | FILTER ASM; FUEL | 1 | 2204- | ALL | (B) | ||
| 093 | I8-97172 546-1 | CONNECTOR; FUEL FILTER | 1 | 2204- | ALL | |||
| 002 | I8-98159 693-0 | ELEMENT KIT; FUEL FILTER | 1 | 2204- | ALL | (A) MAIN FILTER | ||
| 007 | I8-98004 899-0 | PLUG; SENSOR,FUEL FILTER | 1 | 2204- | ALL | |||
| 002 | I8-98037 481-A | ELEMENT KIT; FUEL FILTER | 1 | 2204- | ALL | (IADG) (B) PRE FILTER | ||
| 092 | I8-97172 548-0 | CAP; FUEL FILTER | 1 | 2204- | ALL | |||
| 066 | I8-98004 898-0 | GASKET; PLUG,FUEL FILTER | 1 | 2204- | ALL |
