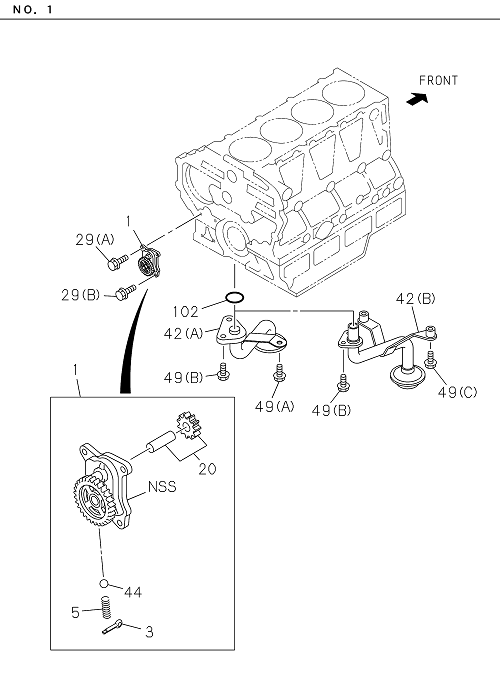

0-51 | OIL PUMP AND OIL STRAINER
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 029 | I0-28060 830-0 | BOLT; OIL PUMP | 2 | 2204- | ALL | (B) M8X30 FLANGE | ||
| 003 | I0-81124 030-0 | PIN; SPLIT | 1 | 2204- | ALL | L=30 | ||
| 042 | I8-98092 535-0 | STRAINER; OIL,OIL PUMP | 1 | 2204- | NPS81 | (B) | ||
| 049 | I0-28060 816-0 | BOLT; STRAINER,OIL PUMP | 2 | 2204- | ALL | (B) M8X16 FLANGE | ||
| 054 | I8-97548 747-0 | WASHER; PL,OIL PIPE | 1 | 2204- | ALL | |||
| 029 | I0-28060 825-0 | BOLT; OIL PUMP | 2 | 2204- | ALL | (A) M8X25 FLANGE | ||
| 005 | I5-09580 098-0 | SPRING; COIL | 1 | 2204- | ALL | |||
| 042 | I8-98213 867-0 | STRAINER; OIL,OIL PUMP | 1 | 2204- | NQR81 | (A) | ||
| 044 | I5-09843 003-0 | BALL; RELIEF VLV | 1 | 2204- | ALL | |||
| 049 | I8-97071 956-0 | BOLT; STRAINER,OIL PUMP | 1 | 2204- | ALL | (A) M10X80 FLANGE | ||
| 049 | I8-98097 017-0 | BOLT; STRAINER,OIL PUMP | 2 | 2204- | NPS81 | (C) M10X100 FLANGE | ||
| 020 | I8-98059 192-0 | GEAR; DRIVE,OIL PUMP | 1 | 2204- | ALL | |||
| 102 | I8-94399 398-0 | GASKET; STRAINER | 1 | 2204- | ALL | ID=24.5 | ||
| 001 | I8-98017 585-1 | PUMP ASM; OIL | 1 | 2204- | ALL |
