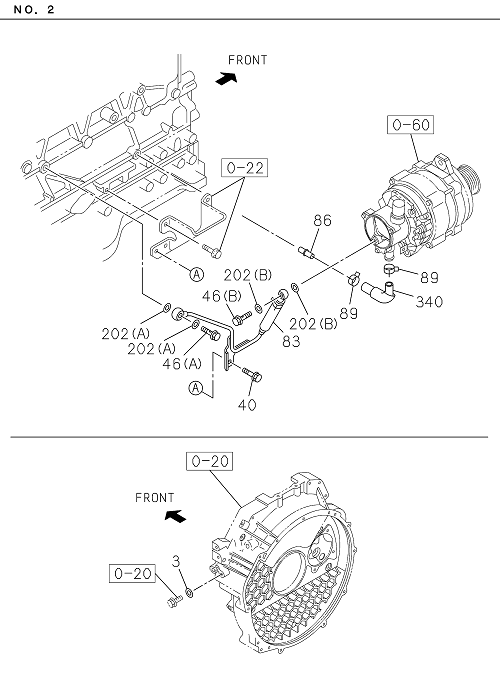

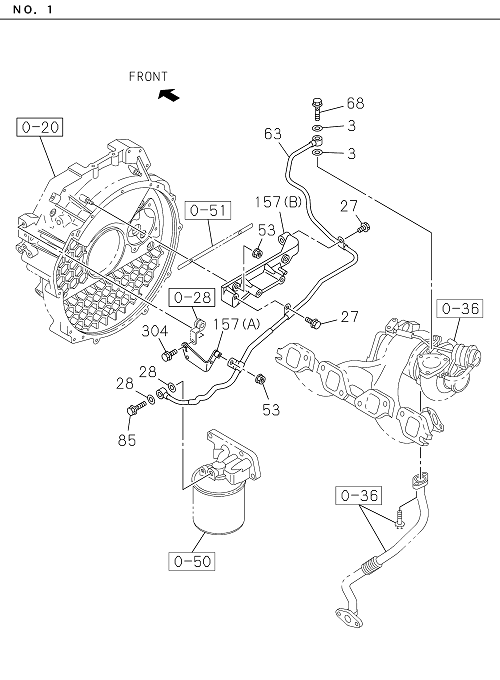

0-52 | OIL AND VACUUM PIPING; ENGINE
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 157 | I8-97648 420-A | BRACKET; OIL PIPE | 1 | 2204- | ALL | (A) | ||
| 028 | I1-09630 083-0 | GASKET; OIL PIPE | 2 | 2204- | ALL | ID=10.2 OD=15.2 | ||
| 068 | I8-94443 535-0 | BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE | 1 | 2204- | ALL | M10X28 EYE-BOLT | ||
| 046 | I8-97372 239-0 | BOLT; JOINT,OIL FEED PIPE,VAC PUMP | 1 | 2204- | ALL | (B) M10X21 EYE-BOLT | ||
| 053 | I7-05108 010-A | NUT; OIL PIPE | 3 | 2204- | ALL | M8 FLANGE | ||
| 040 | I0-28050 816-0 | BOLT; OIL PIPE | 1 | 2204- | ALL | M8X16 FLANGE | ||
| 027 | I0-28050 816-0 | BOLT; OIL PIPE FIX | 2 | 2204- | ALL | M8X16 FLANGE | ||
| 304 | I0-28050 820-0 | BOLT; BRKT,OIL PIPE | 2 | 2204- | ALL | M8X20 FLANGE | ||
| 083 | I8-97228 671-1 | PIPE; OIL,C/BL TO VAC PUMP | 1 | 2204- | ALL | |||
| 089 | I8-94122 679-0 | CLIP; VAC HOSE | 3 | 2204- | ALL | ID=17.1 | ||
| 340 | I8-94339 073-3 | HOSE; VAC PUMP,RETURN | 1 | 2204- | ALL | |||
| 063 | I8-97559 830-A | PIPE; OIL,TURBOCHARGER FEED | 1 | 2204- | ALL | |||
| 202 | I1-09630 083-0 | GASKET; OIL PIPE | 2 | 2204- | ALL | (B) ID=10.2 OD=15.2 | ||
| 340 | I6-94339 073-3 | HOSE; VAC PUMP,RETURN | 1 | 2204- | ALL | (IADG) | ||
| 085 | I8-98037 823-0 | BOLT; EYE,OIL PIPE FIX | 1 | 2204- | ALL | M10X28 EYE-BOLT | ||
| 086 | I8-94455 311-1 | PIPE; OIL,VAC PUMP RETURN | 1 | 2204- | ALL | |||
| 157 | I8-97648 713-A | BRACKET; OIL PIPE | 1 | 2204- | ALL | (B) | ||
| 046 | I1-09675 086-0 | BOLT; JOINT,OIL FEED PIPE,VAC PUMP | 1 | 2204- | ALL | (A) M14X27 EYE-BOLT | ||
| 202 | I8-98251 345-0 | GASKET; OIL PIPE | 2 | 2204- | ALL | (A) ID=14.2 OD=19.2 | ||
| 003 | I1-09630 083-0 | GASKET; EYE BOLT,OIL PIPE | 3 | 2204- | ALL | ID=10.2 OD=15.2 |
