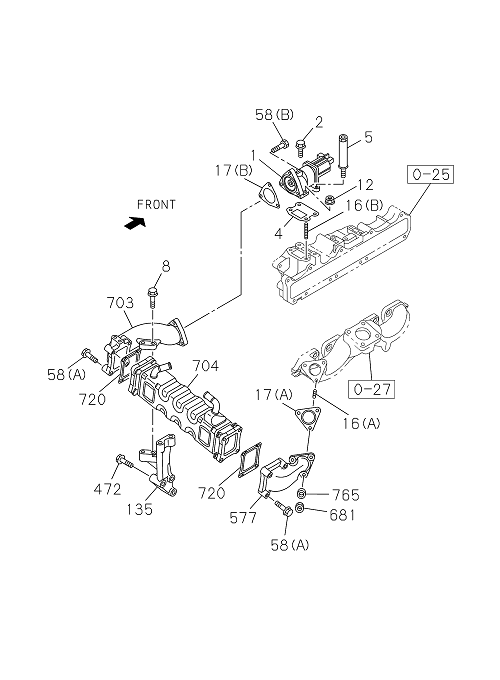

0-57 | EMISSION PIPING
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 016 | I0-41010 820-0 | STUD; EGR VLV | 2 | 2204- | ALL | (B) M8X20 L=32 | ||
| 012 | I7-05108 010-A | NUT; EGR VLV | 2 | 2204- | ALL | M8 FLANGE | ||
| 002 | I0-28650 825-0 | BOLT; EGR VLV | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 001 | I8-97554 329-0 | VALVE; EGR | 1 | 2204- | ALL | |||
| 005 | I8-97377 804-0 | ADAPTER ASM | 1 | 2204- | ALL | |||
| 008 | I0-28151 030-0 | BOLT; EGR ADAPTER | 2 | 2204- | ALL | M10X30 FLANGE | ||
| 058 | I0-28650 830-0 | BOLT; PIPE | 3 | 2204- | ALL | (B) M8X30 FLANGE | ||
| 017 | I8-98036 507-0 | GASKET; EGR PIPE | 1 | 2204- | ALL | (B) | ||
| 016 | I8-97378 067-0 | STUD; EGR VLV | 3 | 2204- | ALL | (A) M8X43 L=54 | ||
| 577 | I8-97648 407-A | PIPE; AIR,EGR | 1 | 2204- | ALL | |||
| 472 | I0-28161 260-0 | BOLT; BRKT | 3 | 2204- | ALL | M12X60 FLANGE | ||
| 681 | I0-91180 208-0 | NUT; EGR PIPE | 3 | 2204- | ALL | M8 FLANGE | ||
| 704 | I8-97648 404-0 | COOLER ASM; EGR | 1 | 2204- | ALL | |||
| 765 | I1-14379 101-0 | SPACER; EGR PIPE | 3 | 2204- | ALL | |||
| 703 | I8-97648 408-A | DUCT; EGR | 1 | 2204- | ALL | |||
| 720 | I8-97648 403-A | GASKET; COOLER | 2 | 2204- | ALL | |||
| 017 | I8-97648 402-0 | GASKET; EGR PIPE | 1 | 2204- | ALL | (A) | ||
| 004 | I8-97306 040-0 | GASKET; EGR VLV | 1 | 2204- | ALL | |||
| 058 | I8-98065 481-0 | BOLT; PIPE | 8 | 2204- | ALL | (A) M8X43 HEX SOCKET | ||
| 135 | I8-97648 406-A | BRACKET; EGR | 1 | 2204- | ALL |
