0-60 | ENGINE ELECTRICAL CONTROL
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 026 | I0-28151 070-0 | BOLT; GEN BRKT | 2 | 2204- | ALL | (B) M10X70 FLANGE | ||
| 016 | I8-97146 998-0 | BOLT; GEN | 1 | 2204- | ALL | M10X133 | ||

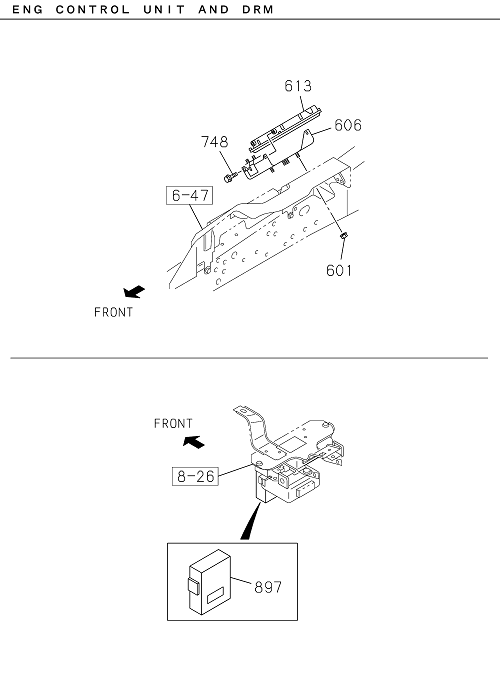

| 613 | I8-97847 293-0 | CONTROL UNIT; ENG | 1 | 2204- | ALL | EXC. INTAKE SHUTTER | ||

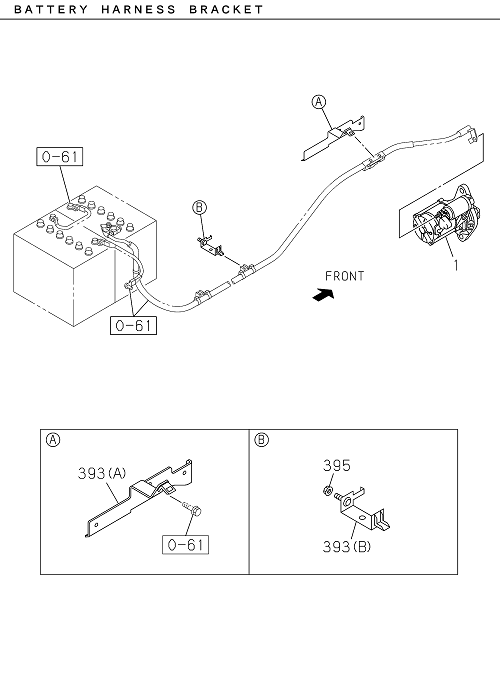

| 393 | I8-98018 251-1 | BRACKET; HARNESS TO BODY | 1 | 2204- | ALL | (B) | ||
| 023 | I7-05110 010-A | NUT; GEN | 1 | 2204- | ALL | (B) M10 FLANGE | ||

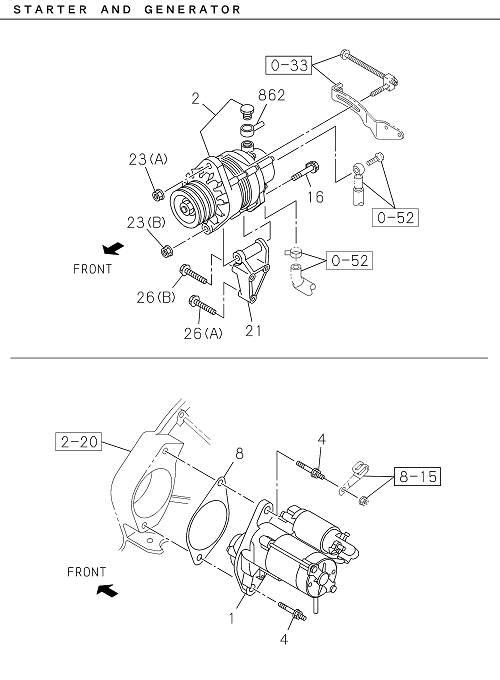

| 002 | I7-55244 736-1 | GENERATOR ASM | 1 | 2408- | NPS81 | 24V 60A | ||

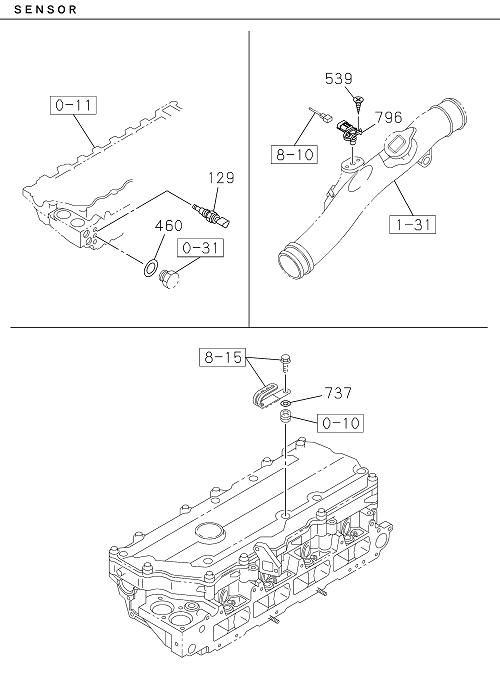

| 796 | I8-98009 418-0 | SENSOR; MAP | 1 | 2204- | ALL | |||
| 001 | I8-97172 211-A | STARTER ASM | 1 | 2204- | ALL | 24V 4.0KW | ||
| 460 | I1-09630 086-0 | GASKET; PLUG | 1 | 2204- | ALL | ID=16.2 OD=22 | ||
| 008 | I8-97350 947-0 | SPACER; STARTER | 1 | 2204- | ALL | |||
| 748 | I0-28050 612-0 | BOLT; CONT UNIT | 4 | 2204- | ALL | M6X12 FLANGE | ||
| 026 | I0-28151 050-0 | BOLT; GEN BRKT | 1 | 2204- | ALL | (A) M10X50 FLANGE | ||
| 539 | I0-36230 412-0 | SCREW; SENSOR | 2 | 2204- | ALL | M4X12 W/LK&PL WASHER | ||
| 862 | I8-97333 832-0 | CONNECTOR; GEN | 1 | 2204- | ALL | |||
| 897 | I8-98082 814-7 | DRM | 1 | 2204- | ALL | |||
| 395 | I7-05108 010-A | NUT; BRKT FIX | 1 | 2204- | ALL | M8 FLANGE | ||
| 001 | I8-98222 018-2 | STARTER ASM | 1 | 2204- | ALL | 24V 4.0KW | ||
| 001 | I6-98222 018-0 | STARTER ASM | 1 | 2204- | ALL | (IADG) 24V 4.0KW | ||
| 601 | I8-98029 921-0 | NUT; UNIT | 4 | 2204- | ALL | M6 W/DISHED WASHER | ||

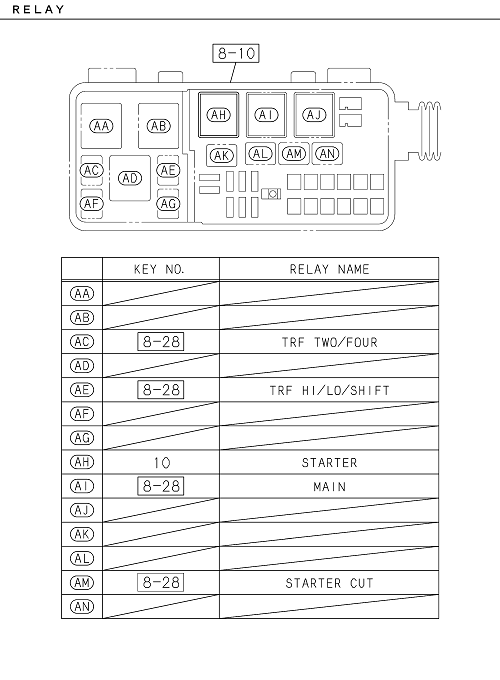

| 010 | I8-97264 947-0 | RELAY; STARTER | 1 | 2204- | ALL | 24V 50A | ||
| 023 | I7-05108 010-A | NUT; GEN | 1 | 2204- | ALL | (A) M8 FLANGE | ||
| 606 | I8-98216 881-0 | BRACKET; CONT UNIT | 1 | 2204- | ALL | |||
| 129 | I8-98260 257-0 | SENSOR; GLOW PLUG,THERMO | 1 | 2204- | ALL | NISHIDA | ||
| 393 | I8-98222 736-0 | BRACKET; HARNESS TO BODY | 1 | 2204- | ALL | (A) | ||
| 004 | I8-97212 602-0 | BOLT; STARTER | 2 | 2204- | ALL | M10X15,M14X75 L=103 | ||
| 002 | I7-55244 737-1 | GENERATOR ASM | 1 | 2408- | NQR81 | 24V 80A | ||
| 737 | I0-91610 606-0 | WASHER; PL | 2 | 2204- | ALL | ID=6.4 | ||
| 021 | I8-97075 884-2 | BRACKET; GEN | 1 | 2204- | ALL |
