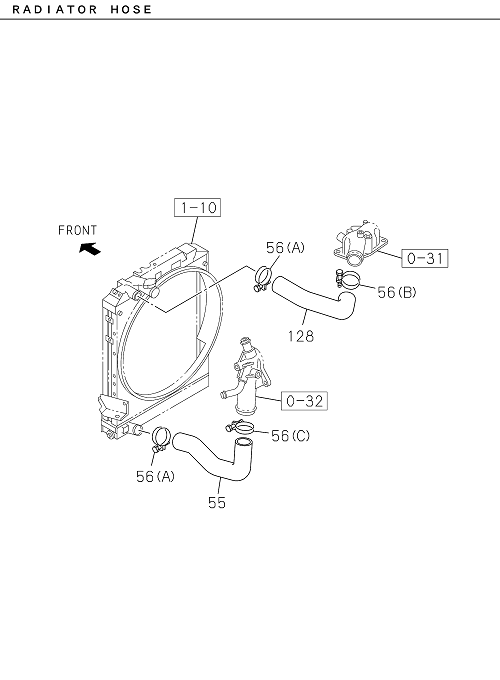

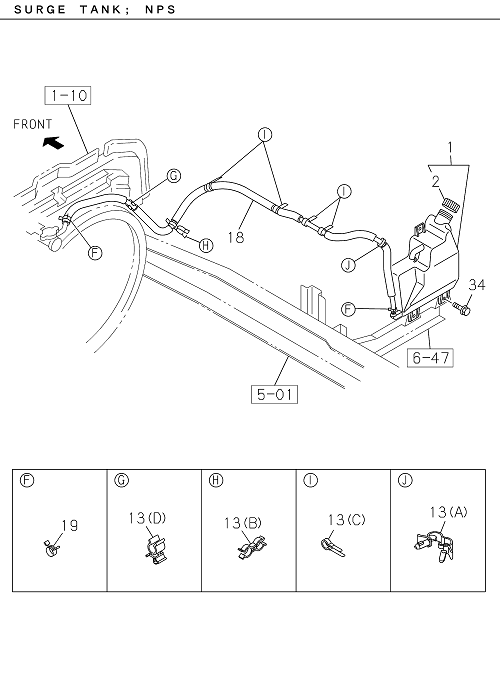

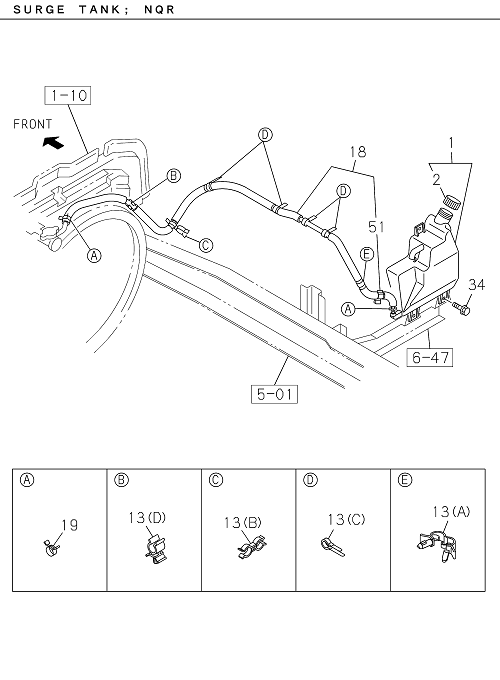

1-11 | RADIATOR HOSE AND SUB TANK
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I8-98348 976-0 | CAP; SURGE TANK | 1 | 2204- | ALL | |||
| 013 | I1-09709 290-0 | CLIP; HOSE,SURGE TANK | 1 | 2204- | ALL | (A) ID=13-18 L=14.5 | ||
| 056 | I1-09704 057-0 | CLIP; WATER HOSE,RAD | 1 | 2204- | ALL | (B) ID=52 | ||
| 056 | I8-98133 957-0 | CLIP; WATER HOSE,RAD | 1 | 2204- | ALL | (C) ID=62 | ||
| 018 | I8-98316 124-0 | HOSE; RAD TO SURGE TANK | 1 | 2204- | NQR81 | L=1690 | ||
| 051 | I1-09987 182-0 | CLIP; WATER HOSE,RAD | 1 | 2204- | ALL | L=170.3 | ||
| 018 | I8-98049 555-0 | HOSE; RAD TO SURGE TANK | 1 | 2204- | NPS81 | L=1660 | ||
| 055 | I8-97387 525-0 | HOSE; WATER,RAD OUTLET | 1 | 2204- | NPS81 | |||
| 055 | I8-98006 453-0 | HOSE; WATER,RAD OUTLET | 1 | 2204- | NQR81 | |||
| 013 | I8-94438 996-0 | CLIP; HOSE,SURGE TANK | 1 | 2204- | ALL | (B) ID=10 & 11 | ||
| 013 | I8-98029 256-0 | CLIP; HOSE,SURGE TANK | 1 | 2204- | ALL | (D) ID=12 | ||
| 034 | I1-09030 042-0 | BOLT; RESERVE TANK | 3 | 2204- | ALL | M8X22 W/LK&PL WASHER | ||
| 128 | I8-98270 178-0 | HOSE; WATER,RAD INL | 1 | 2204- | NQR81 | |||
| 001 | I8-98335 188-0 | TANK; SURGE,RAD | 1 | 2204- | ALL | |||
| 013 | I5-09700 319-0 | CLIP; HOSE,SURGE TANK | 4 | 2204- | ALL | (C) ID=14 L=47 | ||
| 056 | I8-98133 956-0 | CLIP; WATER HOSE,RAD | 2 | 2204- | ALL | (A) ID=48 | ||
| 019 | I8-98150 358-0 | CLIP; HOSE,SURGE TANK | 2 | 2204- | ALL | ID=12 | ||
| 128 | I8-98270 179-0 | HOSE; WATER,RAD INL | 1 | 2204- | NPS81 |
