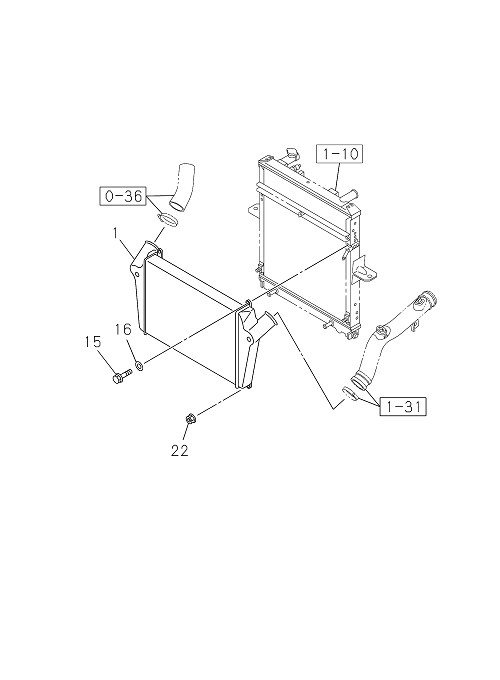

1-35 | CHARGE AIR COOLER
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 022 | I7-05108 010-A | NUT | 2 | 2204- | ALL | M8 FLANGE | ||
| 016 | I0-91610 508-0 | WASHER; PL,CHARGE AIR COOLER | 2 | 2204- | ALL | ID=8.4 OD=16 | ||
| 015 | I0-28050 825-0 | BOLT; CHARGE AIR COOLER | 2 | 2204- | ALL | M8X25 FLANGE | ||
| 001 | I8-98006 479-A | COOLER; CHARGE AIR | 1 | 2204- | ALL |
