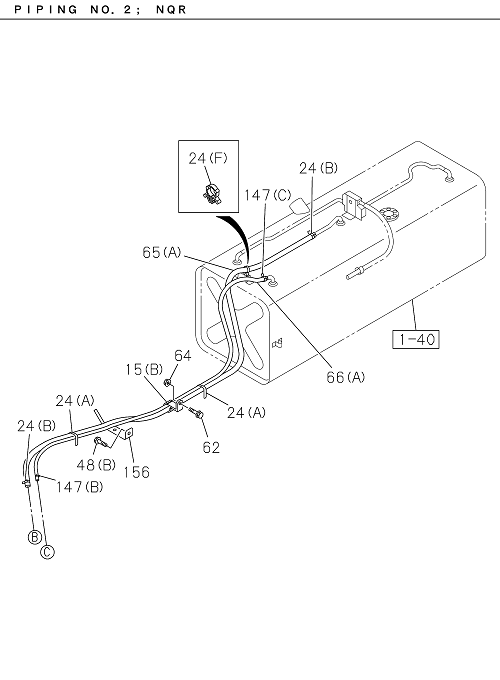

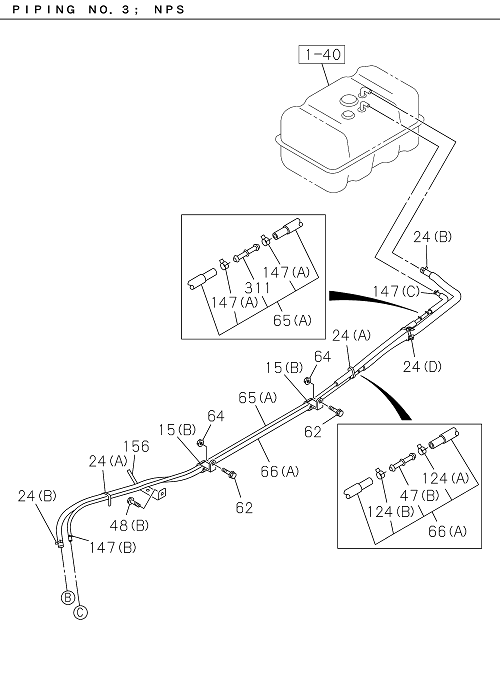

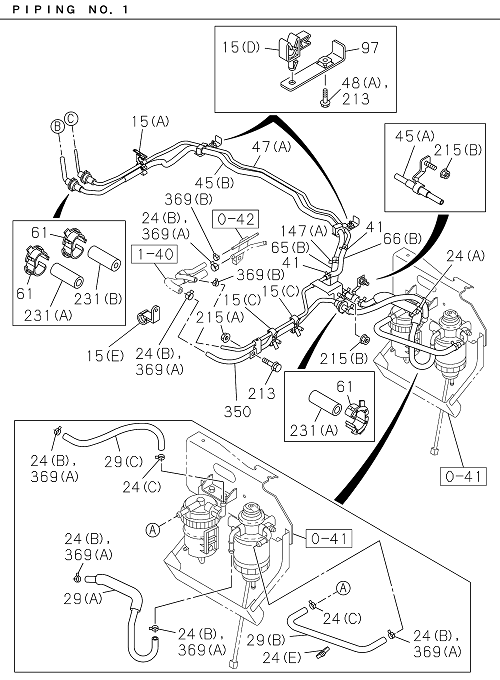

1-41 | FUEL PIPING; CHASSIS
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 015 | I8-98153 939-1 | CLIP; FUEL PIPE | 2 | 2204- | ALL | (C) ID=10 OR 12 & 6.35 OR 8.0 & 4. 76 OR 6.35 | ||
| 045 | I8-98043 681-1 | PIPE; FUEL,DELIVERY | 1 | 2204- | ALL | (B) | ||
| 024 | I8-98150 356-0 | CLIP; FUEL HOSE | 2 | 2204- | ALL | (C) ID=19 | ||
| 048 | I0-28651 030-0 | BOLT; BRKT | 1 | 2204- | ALL | (B) M10X30 FLANGE | ||
| 147 | I8-98150 357-0 | CLIP; FUEL PIPE TO HOSE | 1 | 2204-2303 | NPS81 | (C) ID=13 | ||
| 047 | I8-98043 639-0 | PIPE; FUEL,RETURN | 1 | 2204- | ALL | (A) | ||
| 231 | I8-97214 235-0 | RUBBER; SUPPORT,FUEL PIPE | 2 | 2204- | ALL | (A) OD=16.5 L=50 | ||
| 097 | I8-98041 203-0 | BRACKET; CLIP | 2 | 2204- | ALL | |||
| 064 | I7-05108 010-A | NUT; CLIP | 1 | 2204- | NQR81 | M8 FLANGE | ||
| 061 | I8-94128 319-A | GROMMET; PIPE TO FRAME | 3 | 2204- | ALL | ID=17 | ||
| 029 | I8-97534 917-0 | HOSE; FUEL | 1 | 2204- | ALL | (C) | ||
| 065 | I8-98120 951-3 | HOSE; FUEL,DELIVERY PIPE | 1 | 2204-2303 | NPS81 | (A) | ||
| 064 | I7-05108 010-A | NUT; CLIP | 2 | 2204-2303 | NPS81 | M8 FLANGE | ||
| 015 | I1-09701 027-0 | CLIP; FUEL PIPE | 1 | 2204- | ALL | (E) ID=29 H=50 L=45.5 | ||
| 062 | I0-28650 825-0 | BOLT; CLIP FIX | 2 | 2204-2303 | NPS81 | M8X25 FLANGE | ||
| 215 | I7-05108 010-A | NUT; FUEL PIPE FIX | 1 | 2204- | ALL | (A) M8 FLANGE | ||
| 024 | I8-97089 536-0 | CLIP; FUEL HOSE | 1 | 2204- | NQR81 | (F) ID=18 | ||
| 156 | I8-98041 250-2 | BRACKET; FUEL HOSE | 1 | 2204- | ALL | |||
| 065 | I0-01859 300-0 | HOSE; FUEL,DELIVERY PIPE | 1 | 2204- | ALL | (B) L=140 | ||
| 062 | I0-28650 825-0 | BOLT; CLIP FIX | 1 | 2204- | NQR81 | M8X25 FLANGE | ||
| 213 | I0-28650 825-0 | BOLT; FUEL PIPE FIX | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 311 | I8-97353 668-0 | JOINT; HOSE | 1 | 2204-2303 | NPS81 | |||
| 065 | I0-01859 300-0 | HOSE; FUEL,DELIVERY PIPE | 1 | 2204- | NQR81 | (A) L=1350 | ||
| 350 | I8-97534 914-0 | PIPE; FUEL,DEL & RET | 1 | 2204- | ALL | |||
| 147 | I8-98008 098-0 | CLIP; FUEL PIPE TO HOSE | 2 | 2204- | ALL | (A) ID=16 | ||
| 045 | I8-97534 915-0 | PIPE; FUEL,DELIVERY | 1 | 2204- | ALL | (A) | ||
| 024 | I5-09707 030-1 | CLIP; FUEL HOSE | 1 | 2204- | ALL | (E) L=250 | ||
| 024 | I5-09707 031-1 | CLIP; FUEL HOSE | 3 | 2204- | ALL | (A) L=140 | ||
| 215 | I0-91180 110-0 | NUT; FUEL PIPE FIX | 2 | 2204- | ALL | (B) M10 FLANGE | ||
| 024 | I8-98008 098-0 | CLIP; FUEL HOSE | 6 | 2204- | ALL | (B) ID=16 | ||
| 024 | I8-97089 536-0 | CLIP; FUEL HOSE | 1 | 2304- | ALL | (C) ID=18 | ||
| 369 | I8-98008 098-0 | CLAMP; HOSE,FUEL | 2 | 2204- | ALL | (A) ID=16 | ||
| 015 | I8-97326 157-1 | CLIP; FUEL PIPE | 1 | 2204- | ALL | (A) ID=10X2 OR 12X2 & 6.35 | ||
| 065 | I7-00169 110-A | HOSE; FUEL,DELIVERY PIPE | 1 | 2304- | NPS81 | (A) L=1110 | ||
| 369 | I8-98150 358-0 | CLAMP; HOSE,FUEL | 2 | 2204- | ALL | (B) ID=12 | ||
| 029 | I8-97534 916-0 | HOSE; FUEL | 1 | 2204- | ALL | (A) | ||
| 047 | I8-98036 483-0 | PIPE; FUEL,RETURN | 1 | 2204-2303 | NPS81 | (B) L=70 | ||
| 147 | I8-98150 358-0 | CLIP; FUEL PIPE TO HOSE | AR | 2204- | ALL | (B) ID=12 | ||
| 015 | I1-09701 027-0 | CLIP; FUEL PIPE | 2 | 2204- | ALL | (B) ID=29 H=50 L=45.5 | ||
| 041 | I8-98150 358-0 | CLIP; FUEL PIPE,FUEL TANK | 2 | 2204- | ALL | ID=12 | ||
| 024 | I1-09987 182-0 | CLIP; FUEL HOSE | 1 | 2204- | ALL | (D) L=170.3 | ||
| 147 | I8-98008 098-0 | CLIP; FUEL PIPE TO HOSE | 2 | 2204- | ALL | (A) ID=16 | ||
| 066 | I0-01855 300-0 | HOSE; FUEL,RETURN PIPE | 1 | 2204- | NQR81 | (A) L=960 | ||
| 048 | I0-28650 825-0 | BOLT; BRKT | 2 | 2204- | ALL | (A) M8X25 FLANGE | ||
| 066 | I8-98067 567-2 | HOSE; FUEL,RETURN PIPE | 1 | 2204-2303 | NPS81 | (A) | ||
| 066 | I0-01855 300-0 | HOSE; FUEL,RETURN PIPE | 1 | 2204- | ALL | (B) L=150 | ||
| 015 | I8-97215 437-0 | CLIP; FUEL PIPE | 2 | 2204- | ALL | (D) ID=12 & 6.35 | ||
| 231 | I8-94157 054-A | RUBBER; SUPPORT,FUEL PIPE | 1 | 2204- | ALL | (B) OD=17 L=50 | ||
| 066 | I7-00106 720-A | HOSE; FUEL,RETURN PIPE | 1 | 2304- | NPS81 | (A) | ||
| 029 | I8-98345 858-0 | HOSE; FUEL | 1 | 2204- | ALL | (B) | ||
| 124 | I8-98150 358-0 | CLIP; HOSE | 1 | 2204-2303 | NPS81 | (B) ID=12 | ||
| 124 | I8-98150 357-0 | CLIP; HOSE | 1 | 2204-2303 | NPS81 | (A) ID=13 |
