1-56 | EXHAUST BRAKE SYSTEM
ELF
NPS81 NQR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 015 | I7-05108 010-A | NUT; AIR FILTER | 2 | 2204- | ALL | M8 FLANGE | ||
| 092 | I0-28650 825-0 | BOLT; MAG VLV | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 017 | I0-28650 825-0 | BOLT; BRKT | 1 | 2204- | ALL | M8X25 FLANGE | ||
| 126 | I7-05108 010-A | NUT; BRKT | 1 | 2204- | ALL | M8 FLANGE | ||

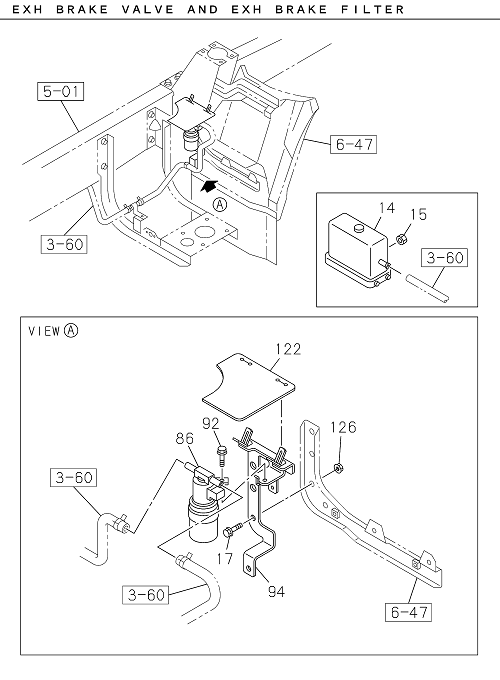

| 086 | I8-98043 344-0 | VALVE; MAG,EXH BRK | 1 | 2204- | ALL | |||
| 005 | I8-97373 108-0 | GASKET; EXH BRAKE UNIT | 2 | 2204- | ALL | ID=64 | ||
| 122 | I8-98087 988-0 | PROTECTOR; MAG VLV | 1 | 2204- | ALL | |||
| 094 | I8-98034 053-3 | BRACKET; MAG VLV,EXH BRAKE | 1 | 2204- | ALL | |||

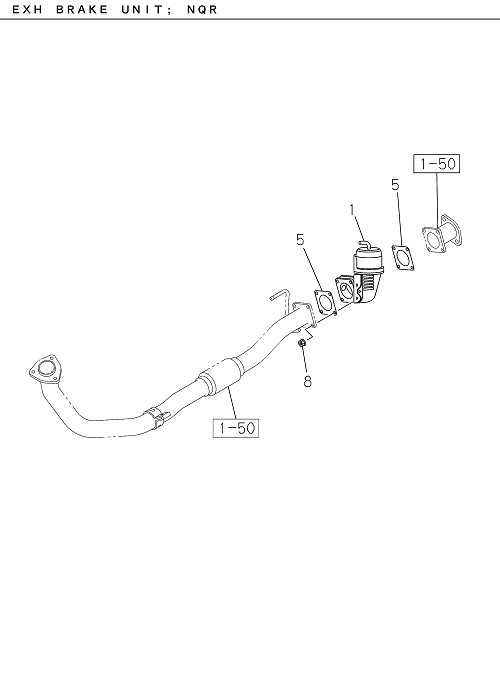

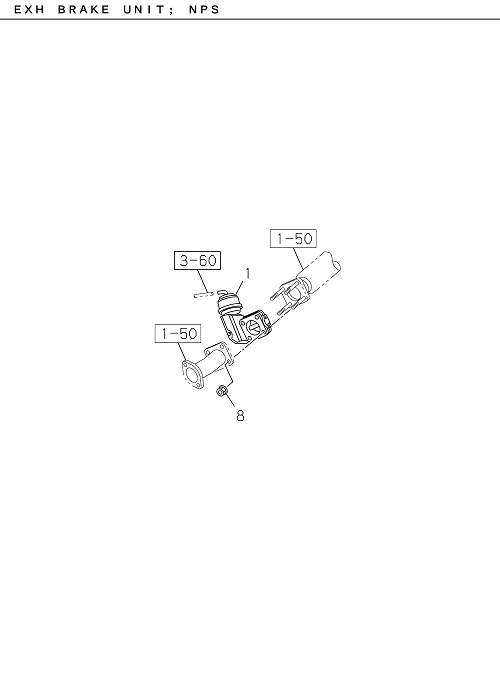

| 001 | I8-97515 083-0 | BRAKE UNIT; EXH | 1 | 2204- | NPS81 | |||
| 014 | I8-97033 888-0 | FILTER; AIR,EXH BRAKE | 1 | 2204- | NPS81 | |||
| 008 | I8-97581 234-0 | NUT; EXH BRAKE UNIT FIX | 4 | 2204- | ALL | M8 W/LK WASHER | ||
| 001 | I8-97515 084-0 | BRAKE UNIT; EXH | 1 | 2204- | NQR81 |
